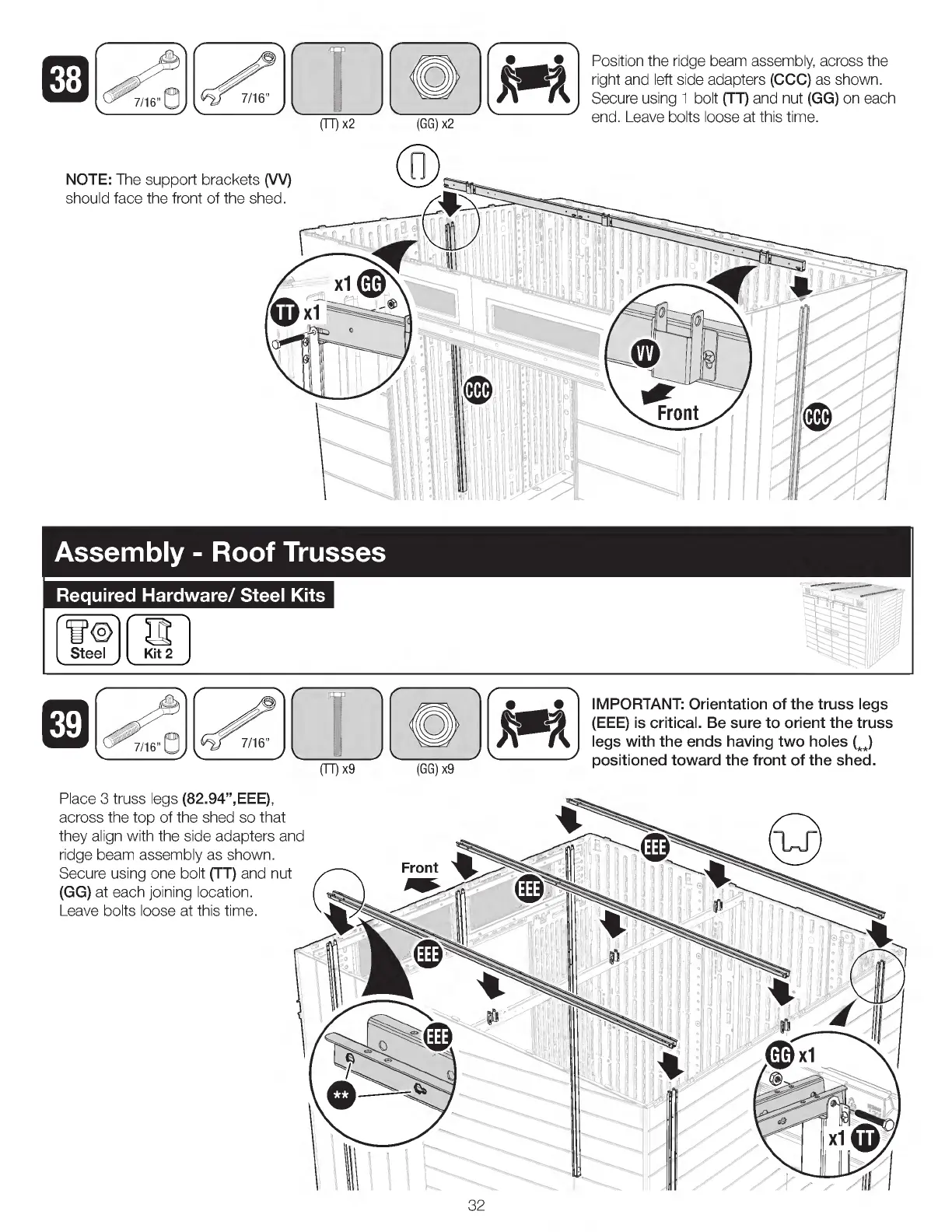

(TT) x2
NOTE: The support brackets ( VV)
should face the front of the shed.
(TT) x9
Place 3 truss legs ( 82.94",EEE),
across the top of the shed so that
they align with the side adapters and
ridge beam assembly as shown.
Secure using one bolt ( TT) and nut
(GG) at each joining location.
Leave bolts loose at this time.
(GG) x2
(GG) x9
Position the ridge beam assembly, across the
right and left side adapters ( CCC) as shown.
Secure using 1 bolt ( TT) and nut ( GG) on each
end. Leave bolts loose at this time.
IMPORTANT: Orientation of the truss legs
(EEE) is critical. Be sure to orient the truss
legs with the ends having two holes (**)
positioned toward the front of the shed.
