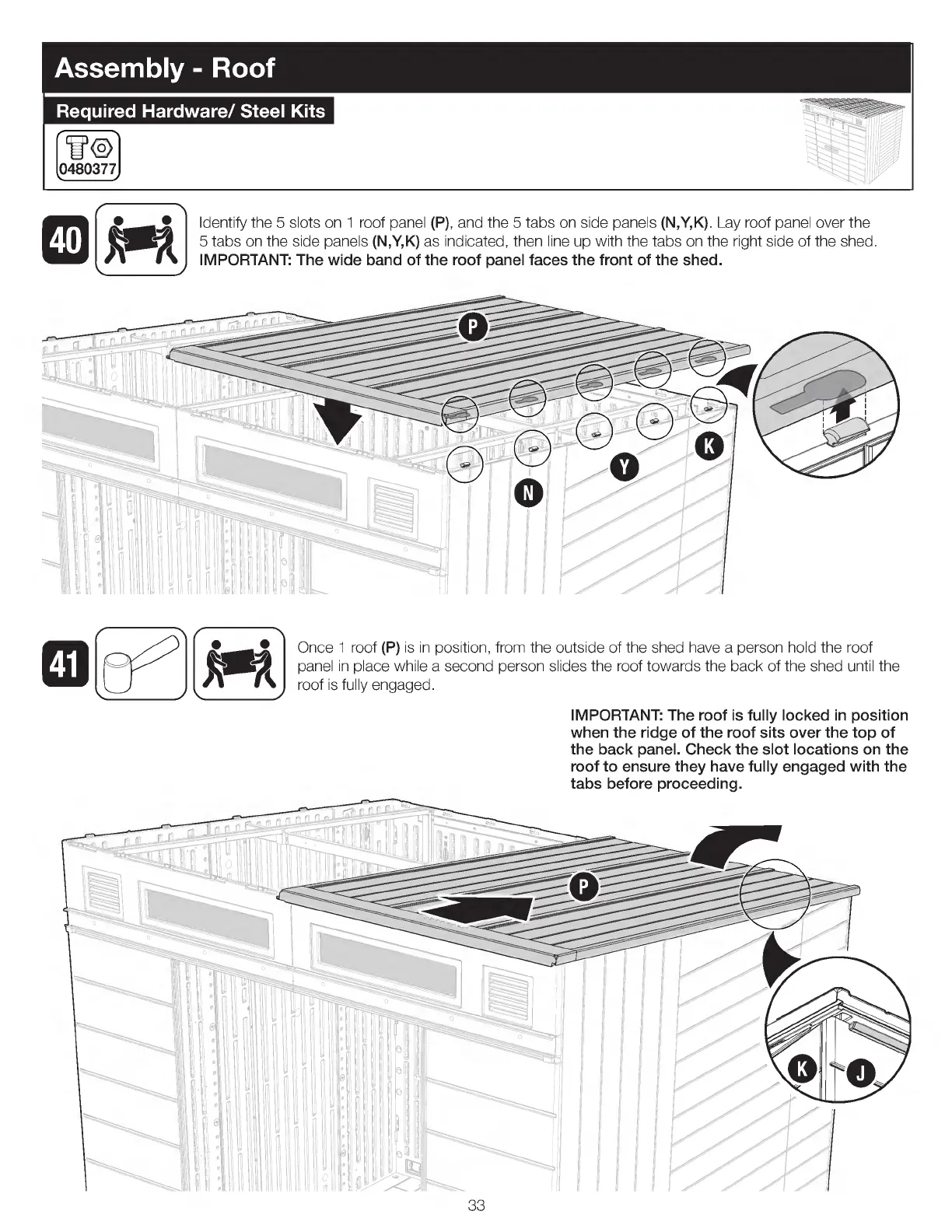

[hmi:
Identify
the
5
slots
on
1
roof
panel
(
P),
and
the
5
tabs
on
side
panels
(
N,Y,K).
Lay
roof
panel
over
the
5
tabs
on
the
side
panels
(
N,Y,K)
as
indicated,
then
line
up
with
the
tabs
on
the
right
side
of
the
shed.
IMPORTANT:
The
wide
band
of
the
roof
panel
faces
the
front
of
the
shed.
)
e"
ee
Once
1
roof
(
P)
is
in
position,
from
the
outside
of
the
shed
have
a
person
hold
the
roof
panel
in
place
while
a
second
person
slides
the
roof
towards
the
back
of
the
shed
until
the
roof
is
fully
engaged.
IMPORTANT:
The
roof
is
fully
locked
in
position
when
the
ridge
of
the
roof
sits
over
the
top
of
the
back
panel.
Check
the
slot
locations
on
the
roof to
ensure
they
have
fully
engaged
with
the
tabs
before
proceeding.
