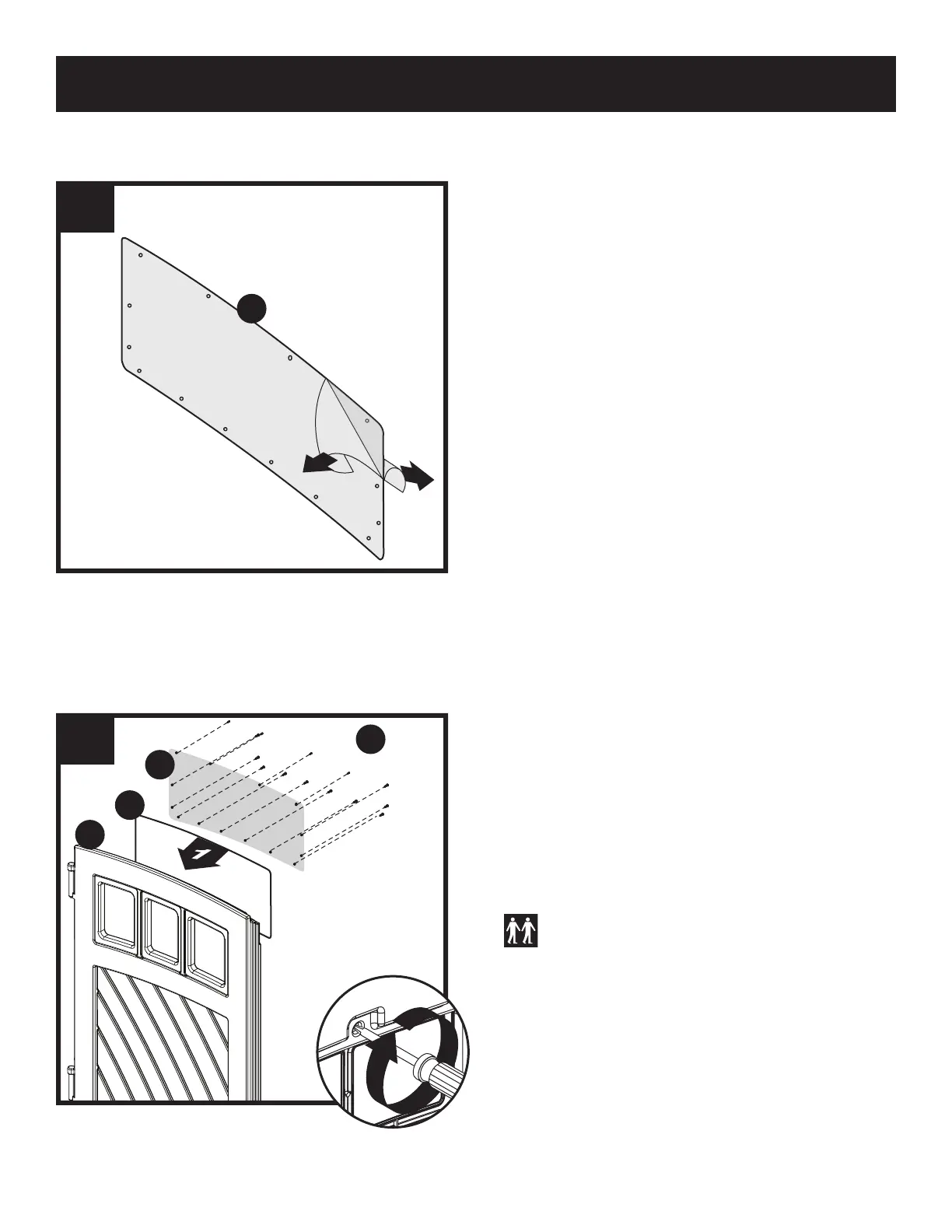

Peel film from both sides of window (S).
Note: One side of film will say "THIS SIDE OUT." Make
sure this side faces out when installing window.
Stand left door (I) vertically. In this order, layer into door
channel the window gasket (TT), and door window (S).
Through the back of door, secure layers with fourteen
screws (KK). Start with four corner screws and finish with
remaining screws. DO NOT over tighten screws.
Repeat Steps 1-2 for right door (H).
Note: The cut portion of window gasket (TT) MUST be
assembled on bottom of door channel.
Note: At least two people are needed during
assembly.
THIS SIDE OUT
1
S
2
x14
TT
KK
S
I
Door Pre-Assembly
