19
Shed Assembly/Headers and Truss (continued)
1
3
2
21
JJ
HH
U

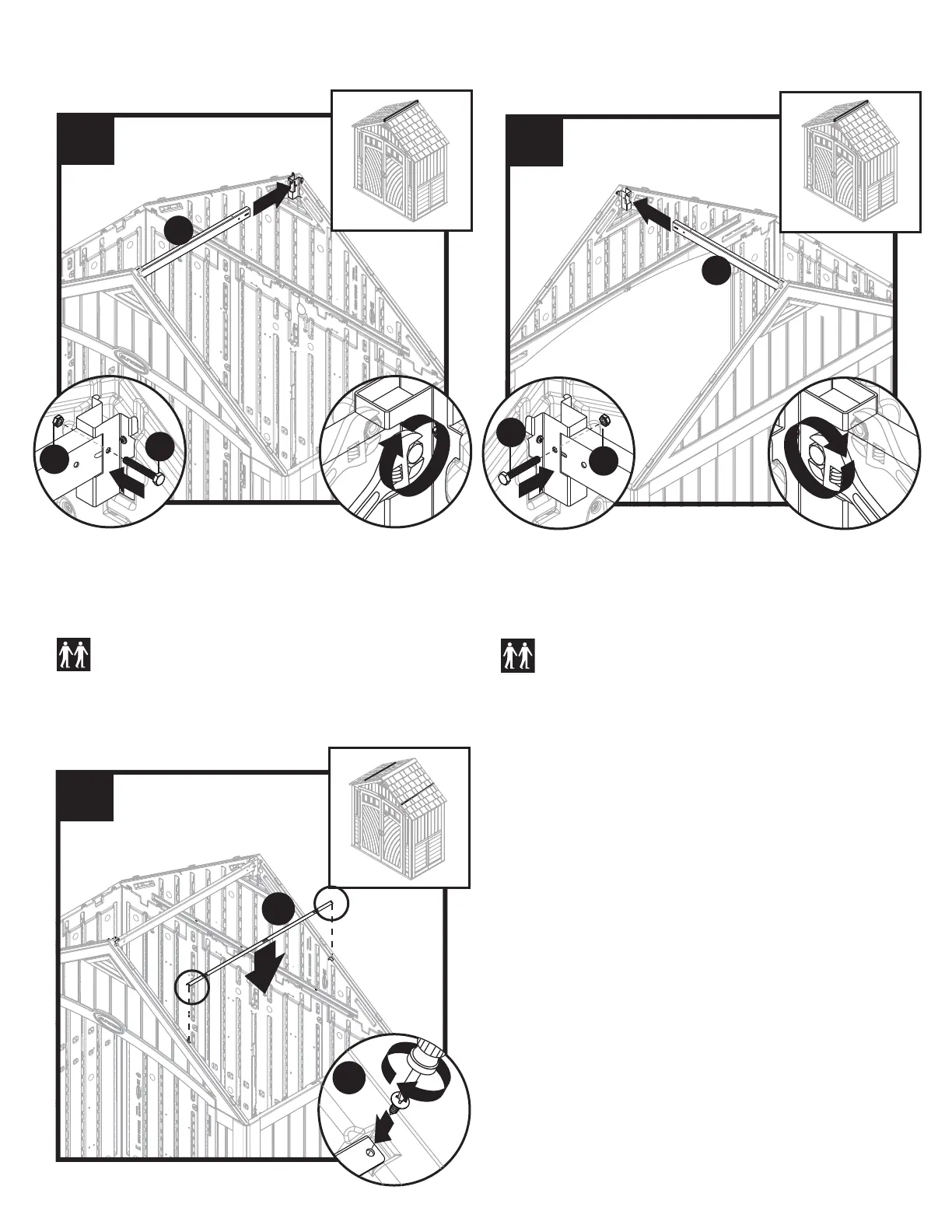

Raise ridge beam (U) up and into rear roof ridge beam
bracket. Secure with one 2" hex bolt (HH) and one nut (JJ).
Note: Alignment of ridge beam to bracket may require
header panels to be pushed inwards or outwards slightly
as ridge beam is slid into place.
1
3
2
22
JJ
U
HH
Slide ridge beam (U) into front roof ridge beam bracket.
Secure with one 2" hex bolt (HH) and one nut (JJ).
Note: Alignment of ridge beam to bracket may require
header panels to be pushed inwards or outwards slightly
as ridge beam is slid into place.
1
23
WW
KK
X2
Attach roof support bracket (WW) to front and rear
headers.
Secure with two screws (KK).
Repeat for remaining roof support.
