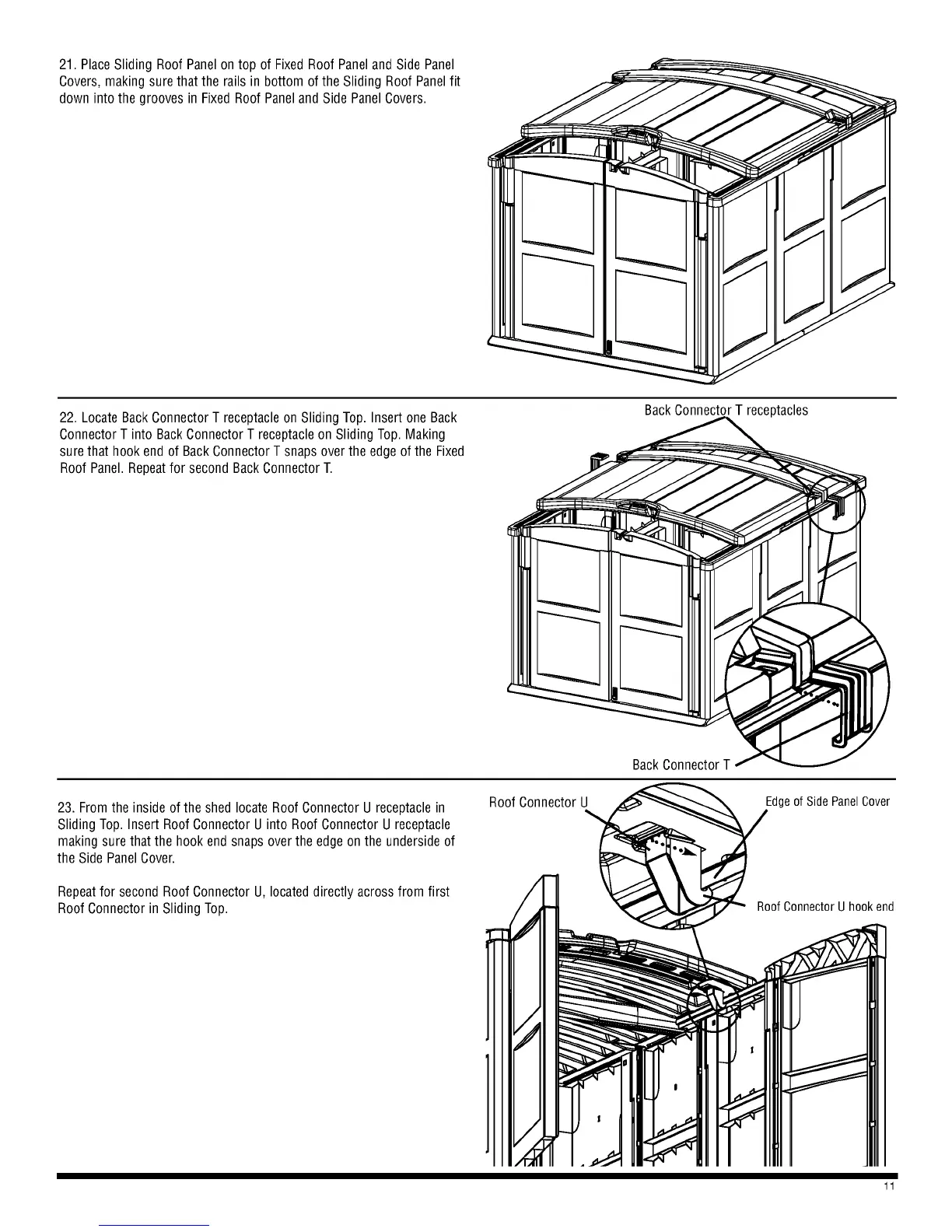

21. Place Sliding Roof Panel on fop of Fixed Roof Panel and Side Panel
Covers, making sure that the rails in bottom of the Sliding Roof Panel fit
down into the grooves in Fixed Roof Panel and Side Panel Covers.
22. Locate Back Connector T receptacle on Sliding Top. Insert one Back
Connector I into Back Connector T receptacle on Sliding Top. Making
sure that hook end of Back Connector T snaps over the edge of the Fixed
Roof Panel. Repeat for second Back Connector T.
23. From the inside of the shed locate Roof Connector U receptacle in
Sliding Top. Insert Roof Connector U into Roof Connector U receptacle
making sure that the hook end snaps over the edge on the underside of
the Side Panel Cover.
Repeat for second Roof Connector U, located directly across from first
Roof Connector in Sliding Top.
11
