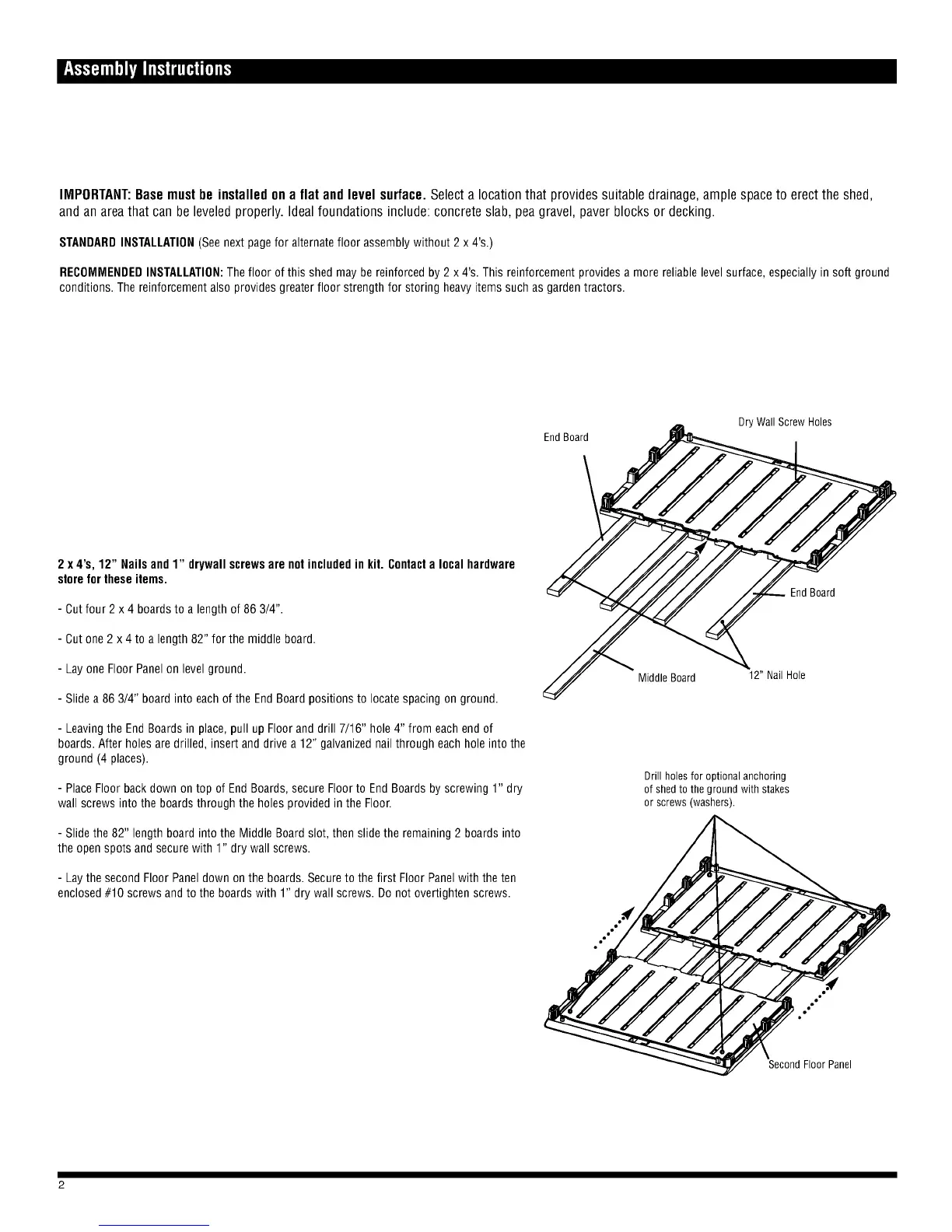

Assembly Instructions
IMPORTANT: Base must be installed on a flat and level surface. Select a location that provides suitable drainage, ample space to erect the shed,
and an area that can be leveled properly. Ideal foundations include: concrete slab, pea gravel, paver blocks or decking.
STANDARD INSTALLATION (See next page for alternate floor assembly without 2 x 4's.)
RECOMMENDED INSTALLATION: The floor of this shed may be reinforced by 2 x 4's. This reinforcement provides a more reliable level surface, especially in soft
ground
conditions. The reinforcement also provides greater floor strength for storing heavy items such as garden tractors.
2 x 4's, 12" Nails and 1" drywall screws are not included in kit. Contact a local hardware
store for these items.
- Cut four 2 x 4 boards to a length of 86 3/4".
- Cut one 2 x 4 to a length 82" for the middle board.
- Lay one Floor Panel on level ground.
- Slide a 86 3/4" board into each of the End Board positions to locate spacing on ground.
- Leaving the End Boards in place, pull up Floor and drill 7/16" hole 4" from each end of
boards. After holes are drilled, insert and drive a 12" galvanized nail through each hole into the
ground (4 places).
- Place Floor back down on top of End Boards, secure Floor to End Boards by screwing 1" dry
wall screws into the boards through the holes provided in the Floor
- Slide the 82" length board into the Middle Board slot, then slide the remaining 2 boards into
the open spots and secure with 1" dry wall screws.
- Lay the second Floor Panel down on the boards. Secure to the first Floor Panel with the ten
enclosed #10 screws and to the boards with 1" dry wall screws. Do not overtighten screws.
2
Drill holes for optional anchoring
of shed to the ground with stakes
or screws (washers).
End Board
Dry Wall Screw Holes
End Board
Middle Board
12" Nail Hole
Floor Panel
To Next Page
