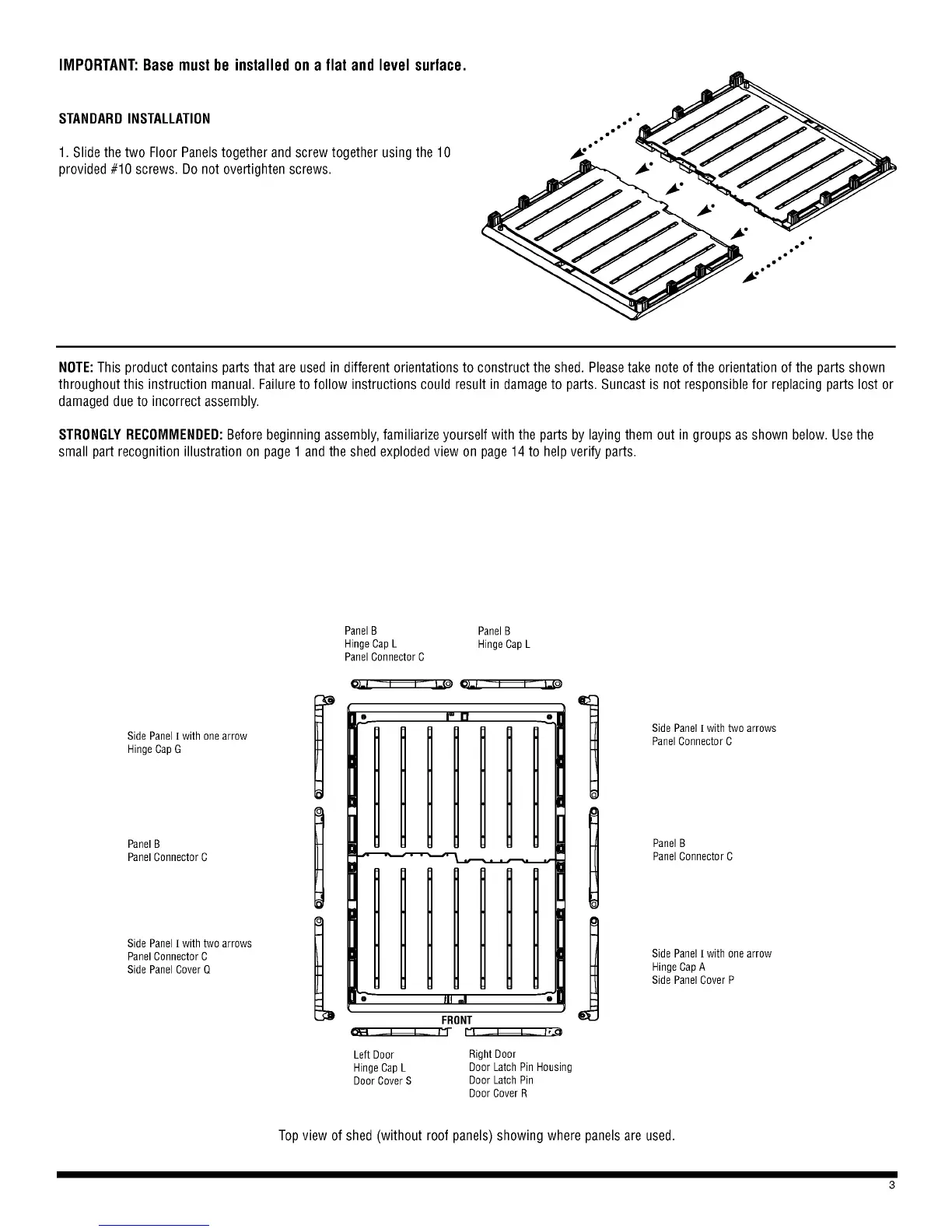

IMPORTANT: Base must be installed on a flat and level surface.
STANDARD INSTALLATION
1. Slide the two Floor Panels together and screw together using the 10
provided #10 screws. Do not overtighten screws.
NOTE: This product contains parts that are used in different orientations to construct the shed. Please take note of the orientation of the parts shown
throughout this instruction manual. Failure to follow instructions could result in damage to parts. Suncast is not responsible for replacing parts lost or
damaged due to incorrect assembly.
STRONGLY RECOMMENDED: Before beginning assembly, familiarize yourself with the parts by laying them out in groups as shown below. Use the
small part recognition illustration on page 1 and the shed exploded view on page 14 to help verify parts.
Side Panel I with one arrow
Hinge Cap C
Panel B
Panel Connector C
Side Panel I with two arrows
Panel Connector C
Side Panel Cover U
Right Door
Door Latch Pin Housing
Door Latch Pin
Door Cover R
Side Panel I with two arrows
Panel Connector C
Panel B
Panel Connector C
Side Panel I with one arrow
Hinge Cap A
Side Panel Cover P
Top view of shed (without roof panels) showing where panels are used.
3
Ac..
Panel B
Hinge Cap L
Panel Connector C
Panel B
Hinge Cap L
02aL1 Ja
-r——r
F
B
L
1
J
Left Door
Hinge Cap L
Door Cover S
