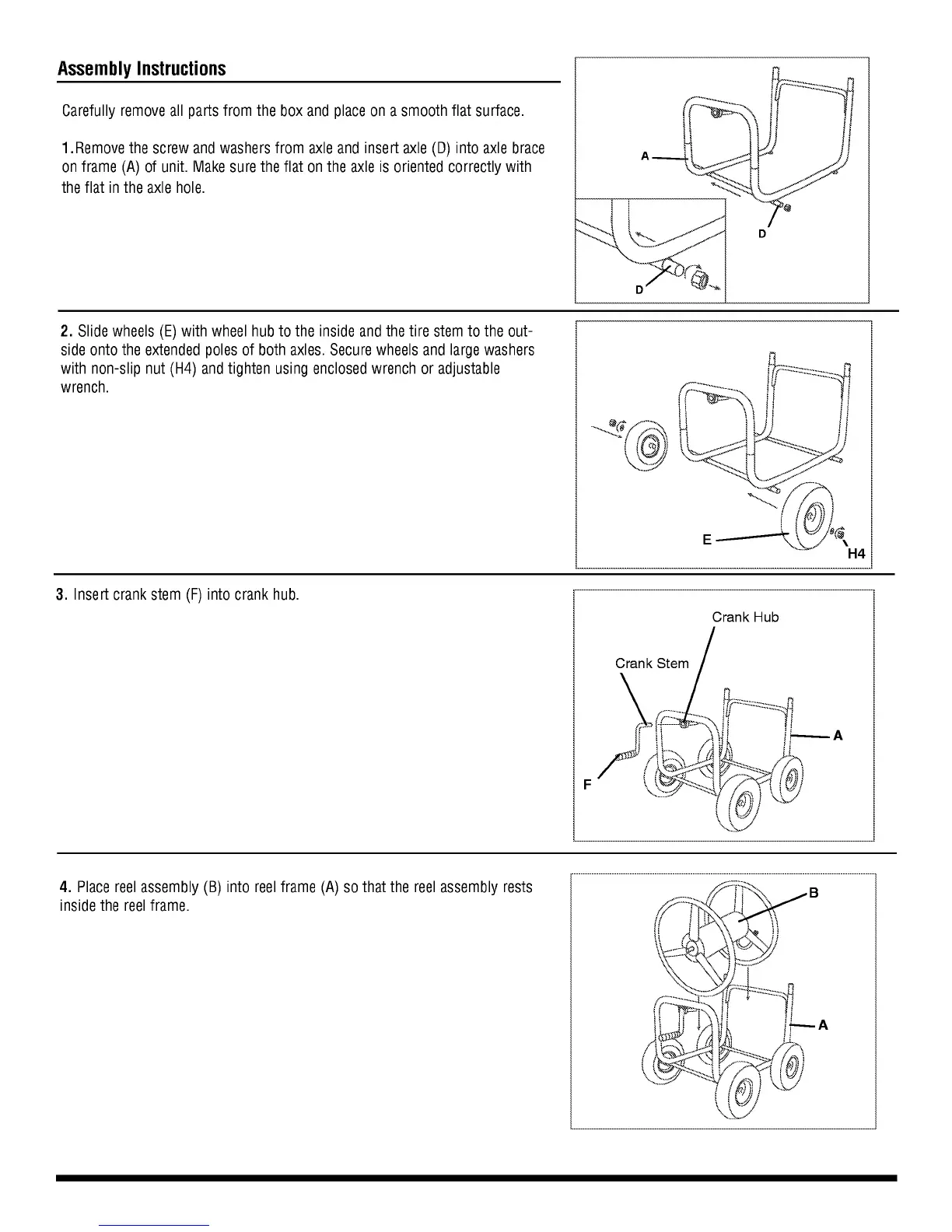

Assembly Instructions
Carefully remove all parts from the box and place on a smooth flat surface.
1.Remove the screw and washers from axle and insert axle (D) into axle brace
on frame (A) of unit. Make sure the flat on the axle is oriented correctly with
the flat in the axle hole.
2. Slide wheels (E) with wheel hub to the inside and the tire stem to the out-
side onto the extended poles of both axles. Secure wheels and large washers
with non-slip nut (H4) and tighten using enclosed wrench or adjustable
wrench.
3. Insert crank stem (F) into crank hub.
4. Place reel assembly (B) into reel frame (A) so that the reel assembly rests
inside the reel frame.
Crank Hub
Crank Stem
F
A
