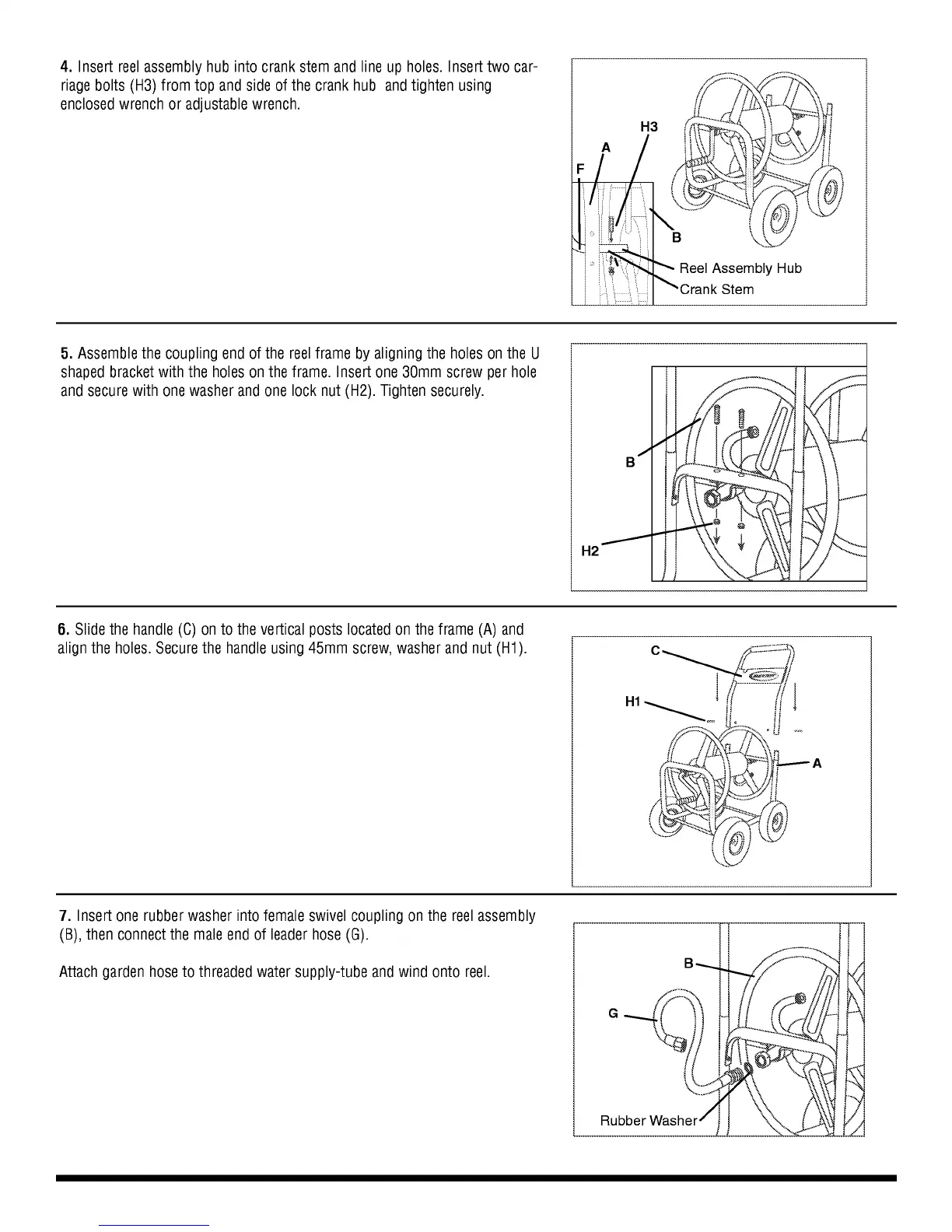

4. Insert reel assembly hub into crank stem and line up holes. Insert two car-
riage bolts (H3) from top and side of the crank hub and tighten using
enclosed wrench or adjustable wrench.
5. Assemble the coupling end of the reel frame by aligning the holes on the U
shaped bracket with the holes on the frame. Insert one 30mm screw per hole
and secure with one washer and one lock nut (H2). Tighten securely.
6. Slide the handle (C) on to the vertical posts located on the frame (A) and
align the holes. Secure the handle using 45mm screw, washer and nut (Hi).
7. Insert one rubber washer into female swivel coupling on the reel assembly
(B), then connect the male end of leader hose (G).
Attach garden hose to threaded water supply-tube and wind onto reel.
