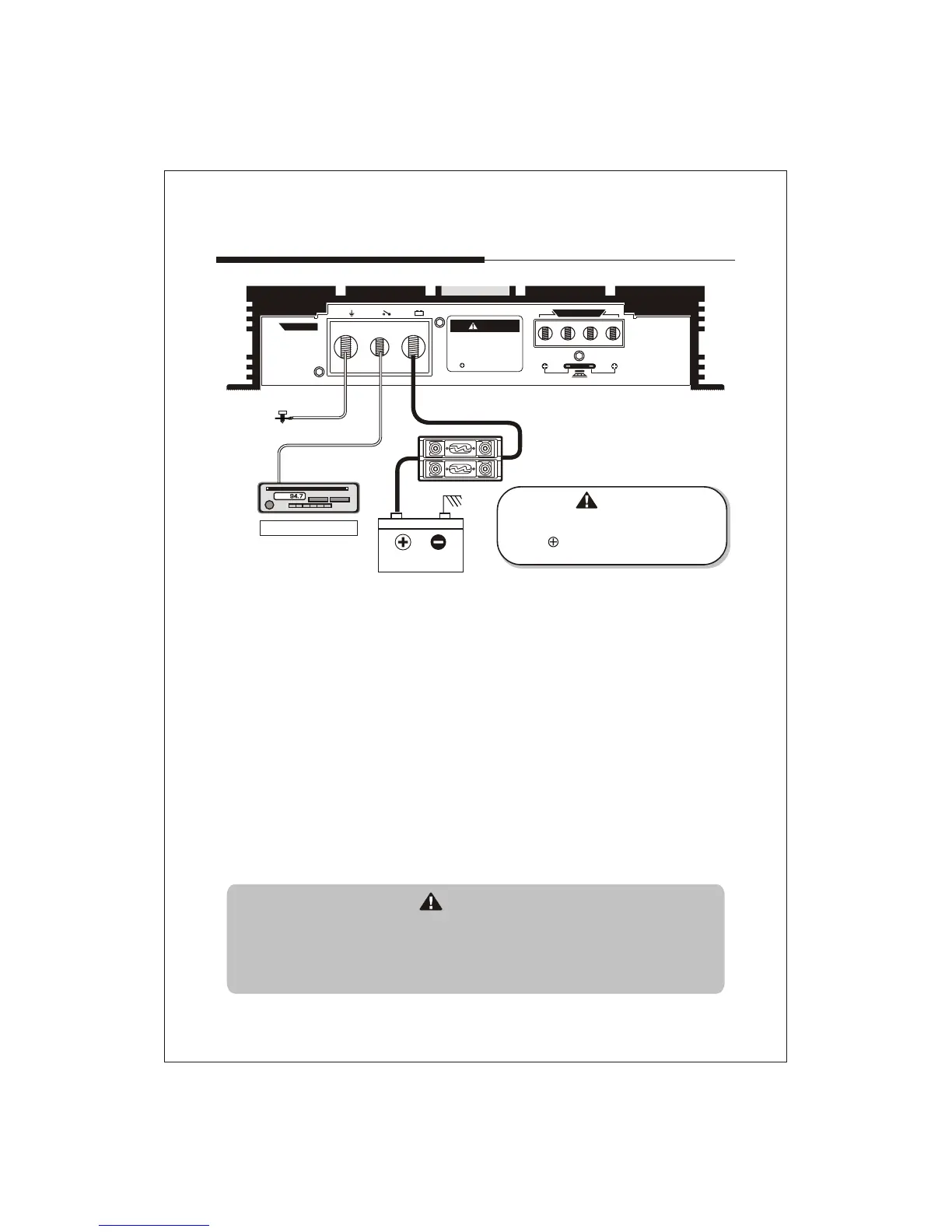

Power Connection
+12V Power
Connect the +12V terminal of the amplifier to the + terminal of the
battery using a large gauge power wire (preferably 1/0 gauge). It is
critical to utilize an in-line fuse within 8 inches of the battery to
ensure safe operation of the amplifier. Make sure that the fuse is
not installed while you are connecting the + wire to the battery
terminal to avoid sparking and possible injury or damage.
GROUND
Disconnect the battery and connect the GND (ground) terminal to
the cars chassis. Keep this cable as short as possible (not longer
than 10 inches). Be certain that the chassis ground point is free of
rust, paint, and grime to ensure a solid electrical connection.
REMOTE
Connect the REM terminal to either the remote output lead from
the radio or another switched 12V supply such as the power
antenna wire.
To +12V DC
First make the ground connection, then +12V wire connection and
finally the remote connection. Furthermore, the +12V wire must
always be fused at the battery for protection against possible
damage. If you need to replace the power fuse, replace it with a
fuse of the same value. It may result in a serious hazard to use a
fuse of a different type or rating.
Caution
Caution
This amplifier is not supplied with internal fuse
in itself. Make sure you install in-line fuse holder
from the terminal of battery.
Recommend 300 Ampere fuse.
To +12V DC
to REMOTE Turn-on
from HEAD UNIT
CAR STEREO HEAD UNIT
GROUND
BATTERY
