2.1.2 DIP switch
10
5 6
E60 8.8” OFF OFF
E60 Alpine 6.5” ON OFF
E60 Siemens 6.5” ON ON
E60 Armrest 6.5” OFF ON
#PIN
Type of monitor
※DIP S/W Use Example
[BMW E60-6.5” Alpine]
-. Use Input Mode : A/V3(DVD), Navigation (RGB)
-. Rear Camera : When to be installed on CVBS 4
▷ DIP S/W : 1  OFF
▷ DIP S/W : 2,3  ON
(INPUT MODE SKIP)
▷ DIP S/W : 4  OFF (enable A/V3)
▷ DIP S/W : 5  ON (6.5” Alpine)
▷ DIP S/W : 6  OFF
▷ DIP S/W : 7  ON (enable CVBS4)
▷ DIP S/W : 8  OFF

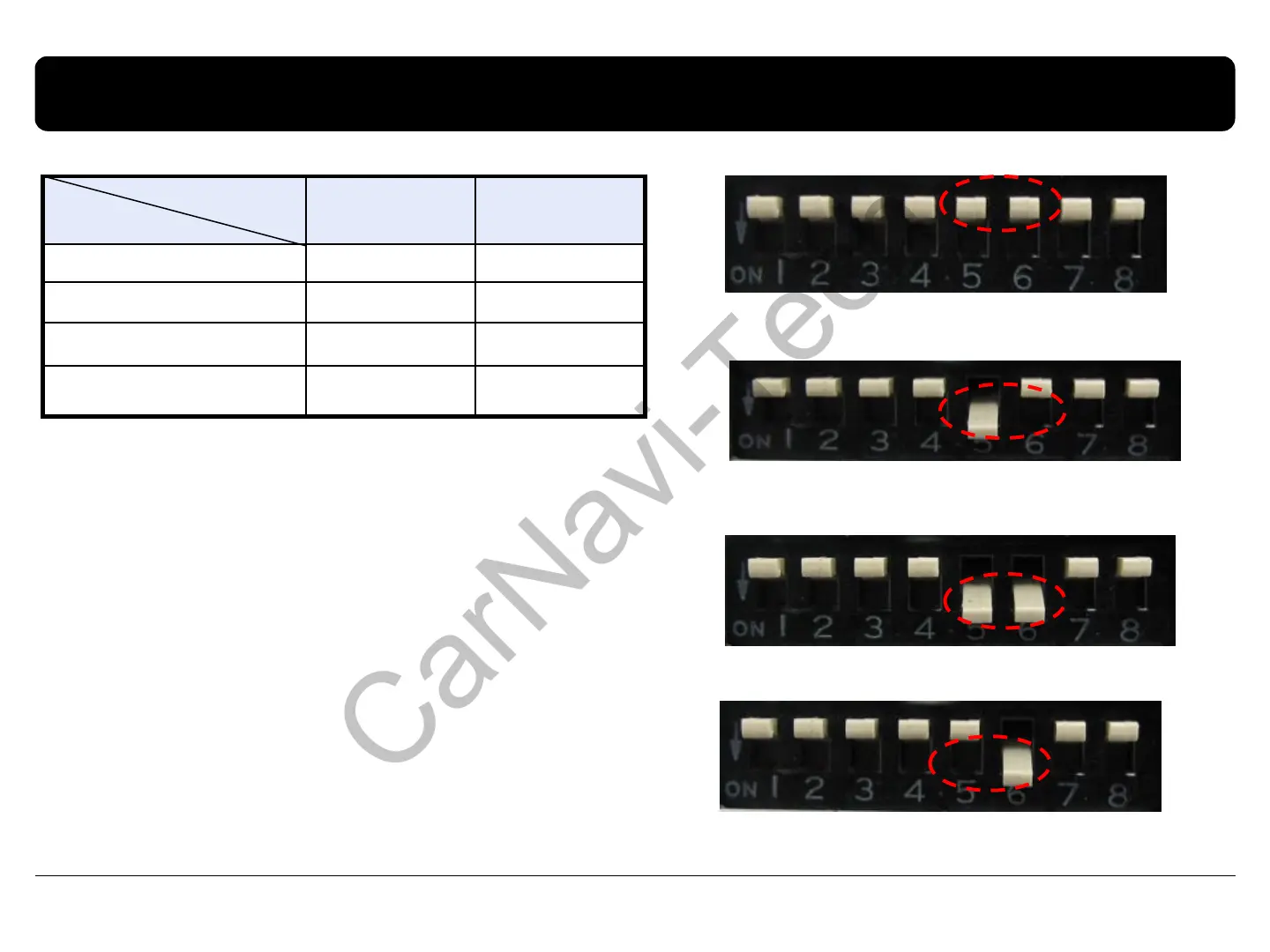

[E60 8.8”]
[E60 Alpine 6.5”]
[E60 Siemens 6.5”]
[E65 Armrest 6.5”]
