Sunex HD 7706 - Parts List and Drawing; Exploded View Drawing; Parts Identification

7706 5 rev. 08/24/18
MODEL 7706
CAPACITY: UP TO 40 GALLON
EMPTY FUEL TANK
SADDLE ADAPTER

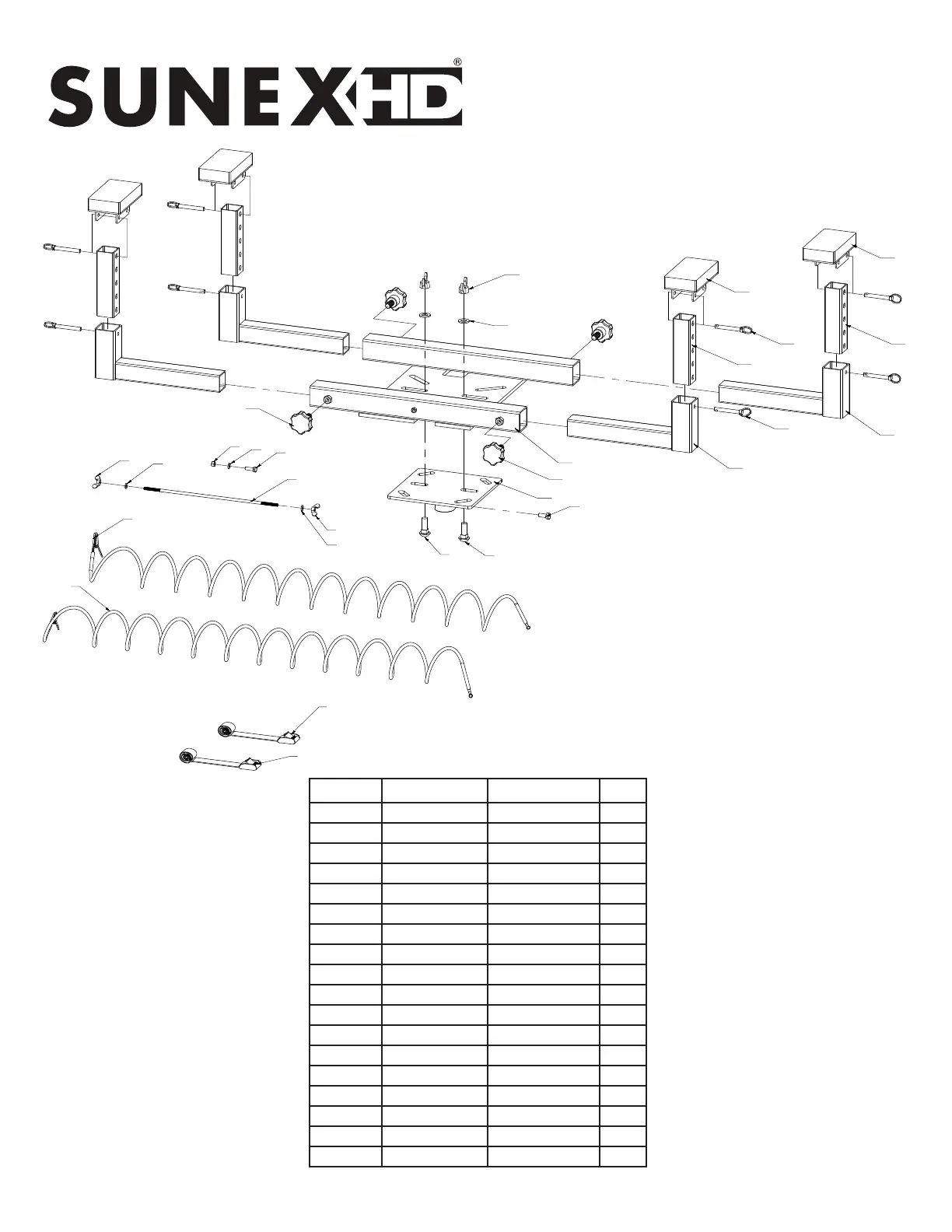

PARTS LIST AND DRAWING
1
1
2
2
3
4
5
4
3
8
8
9
10
11
11
12
13
14
15
16
17
18
6
14
13
15
16
7
4
Ref. No. Part No. Description Qty.
1 RS770601 Tie Down 2
2 RS770602 Ground Wire 2
3 * Wing Nut M6 2
4 * Flat Washer 3
5 * Hex Nut M6 1
6 * Lock Rod 1
7 * Ground Screw M6 1
8 * Carriage Bolt M12 2
9 * Screw M8 1
10 RS770403 Adapter Plate 1
11 RS770611 Locking Knob 4
12 Base Assembly 1
13 Arm Assembly 4
14 * Detent Pin 8
15 Height Adjustment Tube 4
16 RS770616 Support Pad Assembly 4
17 * Flat Washer 2
18 * Wing Nut M12 2
* Available in bolt kit, RS7706BK. Only Ref No’s identified by Part No. are available separately.
