6602ASJ/6603ASJ 8 Rev. 1/14/20
Only items identified by part number are available individually.
OWNER'S MANUAL

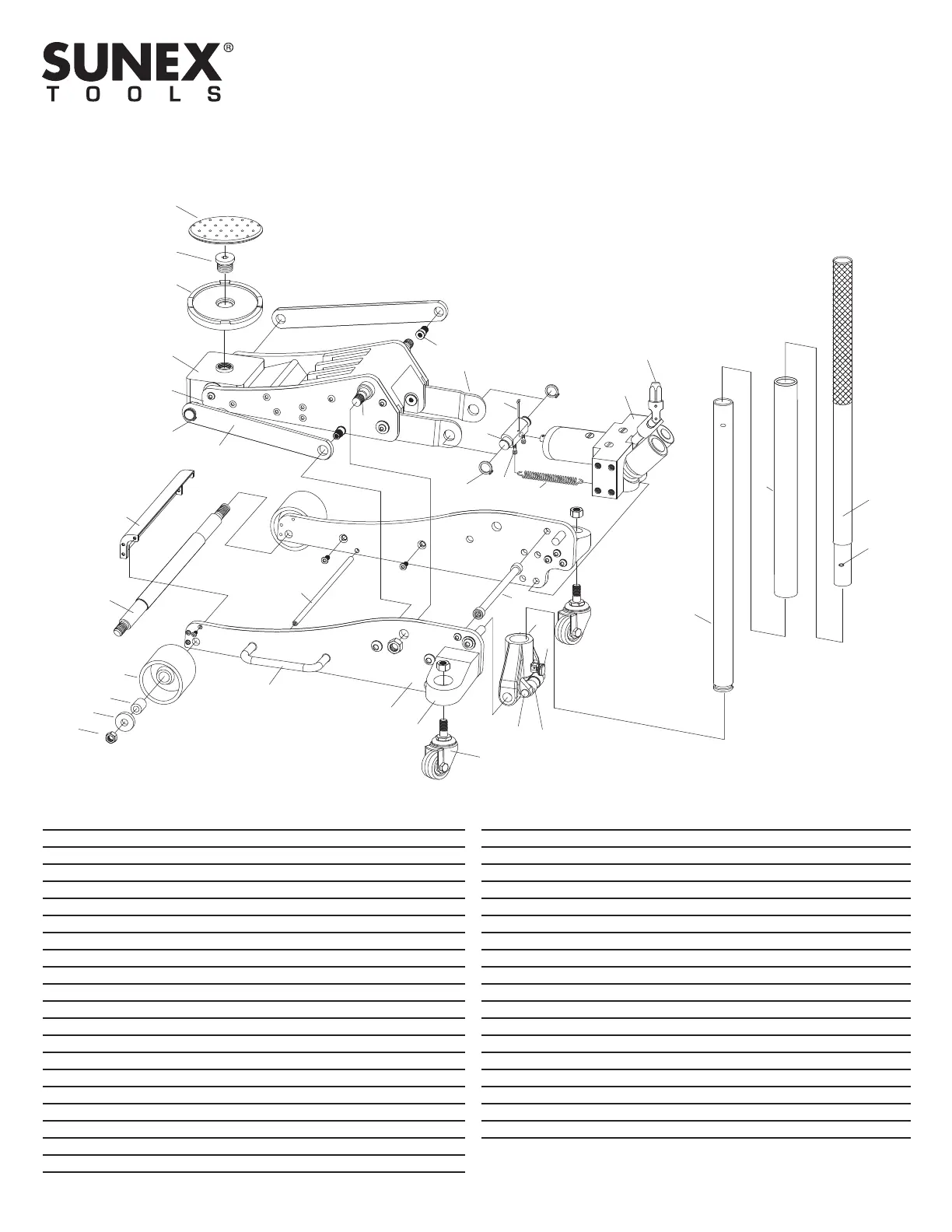

PARTS LIST AND DRAWING
REF # PART# DESCRIPTION QTY
1 RS6603ASJ38 Rubber Saddle Pad 1
2 Saddle Bolt 1
3 RS6603ASJ36 Saddle 1
4 Saddle Seat 1
5 Lift Arm Side Plate 1
6 Retaining RIng (18) 2
7 Link Rod 2
8 Baffle 1
9 Front Wheel Axle 1
10 RS6603ASJ17 Front Wheel Assembly (incl. #11, 12, 13) 2
11 Bushing (incl. with #10) 2
12 Washer (incl. with #10) 2
13 RS6603ASJ03 Nut (M12) (incl. with #10) 4
14 Rod 1
15 RS6603ASJ15 Carry Handle (incl. hardware) 2
16 Frame 2
17 Rear Caster Bracket 2
18 RS6603ASJ01 Rear Caster 2
19 Roller Pin 1
20 Roller 1
REF # PART# DESCRIPTION QTY
21 RS6603ASJ54 Handle Yoke Set Screw 1
22 RS6603ASJ55 Handle Yoke Assembly 1
23 Rod 1
24 RS6603ASJ60 Lower Handle 1
25 Lock 1
26 RS6603ASJ62 Upper Handle 1
27 RS6603ASJ61 Handle Bumper 1
28 U-Joint 1
29 RS6603ASJ50 Power Unit Assembly 1
30 Spring 2
31 Bolt 2
32 Retaining Ring (22) 2
33 Linkage Rod 1
34 Cotter Pin 1
35 Linkage 2
36 Linkage Rod Bolt 2
37 Lift Arm Axle 1
RS6603ASJPLK Product Label Kit (not shown) 1
1
3
4
5
7
8
9
10
15
16
18
23
22
24
26
29
37
14
27
2
6
36
11
12
13
17
19
20
21
25
28
30
32
34
33
31
35
MODEL 6603ASJ
CAPACITY: 3 TON
ALUMINUM SERVICE JACK
