6602ASJ/6603ASJ 7 Rev. 1/14/20
OWNER'S MANUAL

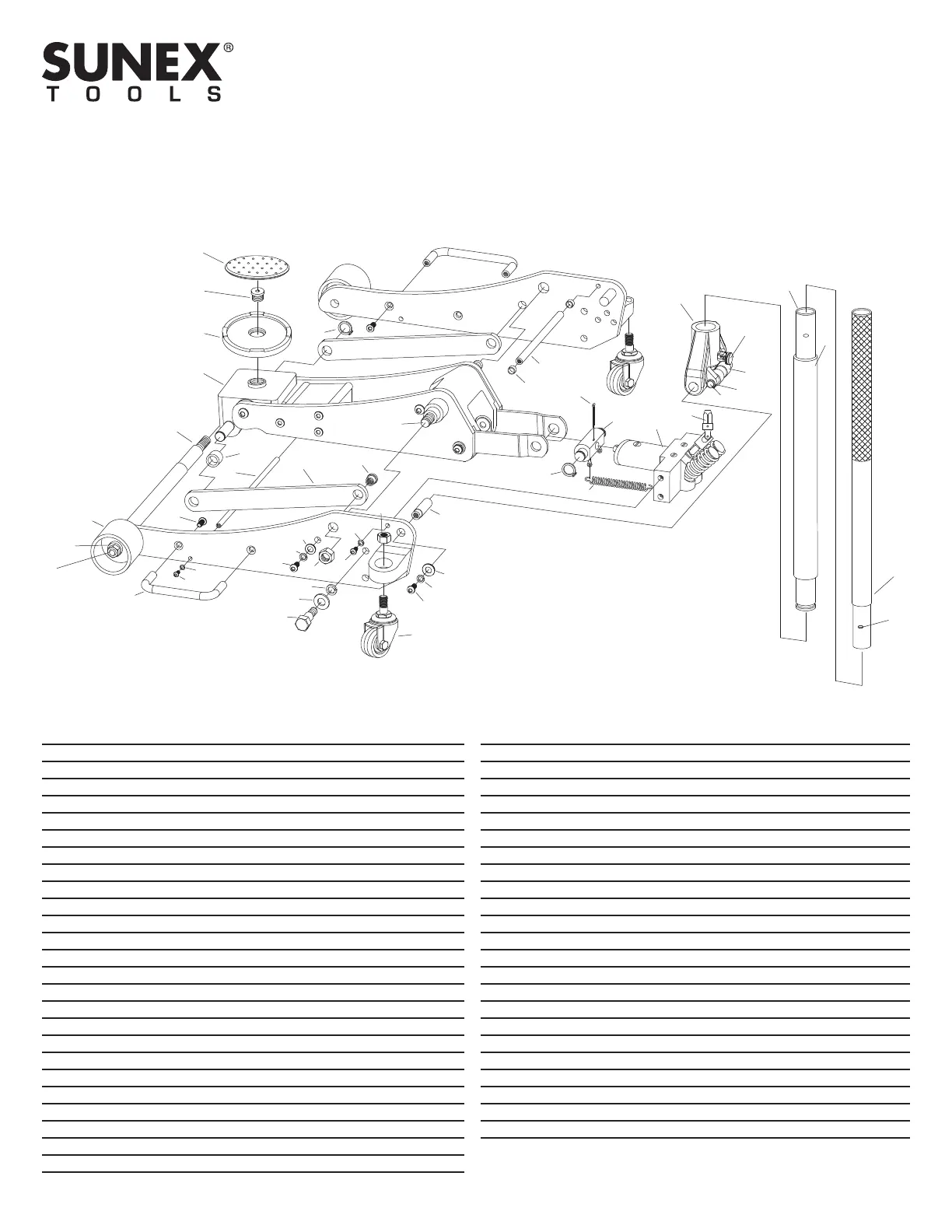

PARTS LIST AND DRAWING
Only items identified by part number are available individually.
REF # PART# DESCRIPTION QTY
1 RS6602SP Rubber Saddle Pad 1
2 Saddle Bolt 1
3 RS660234 Saddle 1
4 Lift Arm 1
5 Front Wheel Axle 1
6 Link Rod Spacer 2
7 Rod 1
8 RS660221 Bolt (M8x25) 4
9 RS660218 Front Wheel Assembly (incl. #10, 11) 2
10 Front Wheel Washer (incl. with #9) 2
11 RS660203 Locking Nut (M12) (incl. with #9) 4
12 RS660216 Carrying Handle 2
13 Bolt (M6x25) 2
14 Spring Washer (6) 2
15 Link Rod 2
16 Link Rod Bolt 2
17 Washer (10) 2
18 Spring Washer (10) 4
19 Bolt (M10x20) 4
20 Nut (M18) 2
21 Spring Washer (12) 4
22 Washer (12) 4
23 Bolt 4
24 Bolt (M8x25) 2
25 Spring Washer (8) 2
REF # PART# DESCRIPTION QTY
26 RS660201 Rear Caster Assembly 2
27 Washer (10) 2
28 Yoke Bolt 2
29 Retaining Ring (19) 2
30 Spring 2
31 Handle Button 1
32 RS660259 Upper Handle 1
33 RS660249 Lower Handle 1
34 RS660260 Handle Bumper 1
35 RS660250 Handle Set Screw 1
36 RS660253 Handle Yoke Assembly (incl. #37, 38, 39) 1
37 Pump Roller (incl. with #36) 1
38 Retaining Ring (incl. with #36) 1
39 Roller Pin (incl with #36) 1
40 RS660261 U-Joint 1
41 RS660258 Power Unit Assembly 1
42 Linkage Block 1
43 Cotter Pin (4x50) 1
44 Rod 1
45 Rubber Guard 2
46 Lift Arm Axle 1
47 Retaining Ring (18) 2
RS6602ASJPLK Product Label Kit (not shown) 1
1
2
3
4
5
9
10
11
6
7
15
8
12
13
14
18
17
19
20
21
22
23
25
24
11
26
19
18
27
28
16
29
43
42
30
41
40
36
35
39
38
37
34
33
32
31
45
44
46
47
MODEL 6602ASJ
CAPACITY: 2 TON
ALUMINUM SERVICE JACK
