Power Unit
RS35B20
* Included in Seal Kit - RS35BSK
Only items identified by part number are available for purchase.

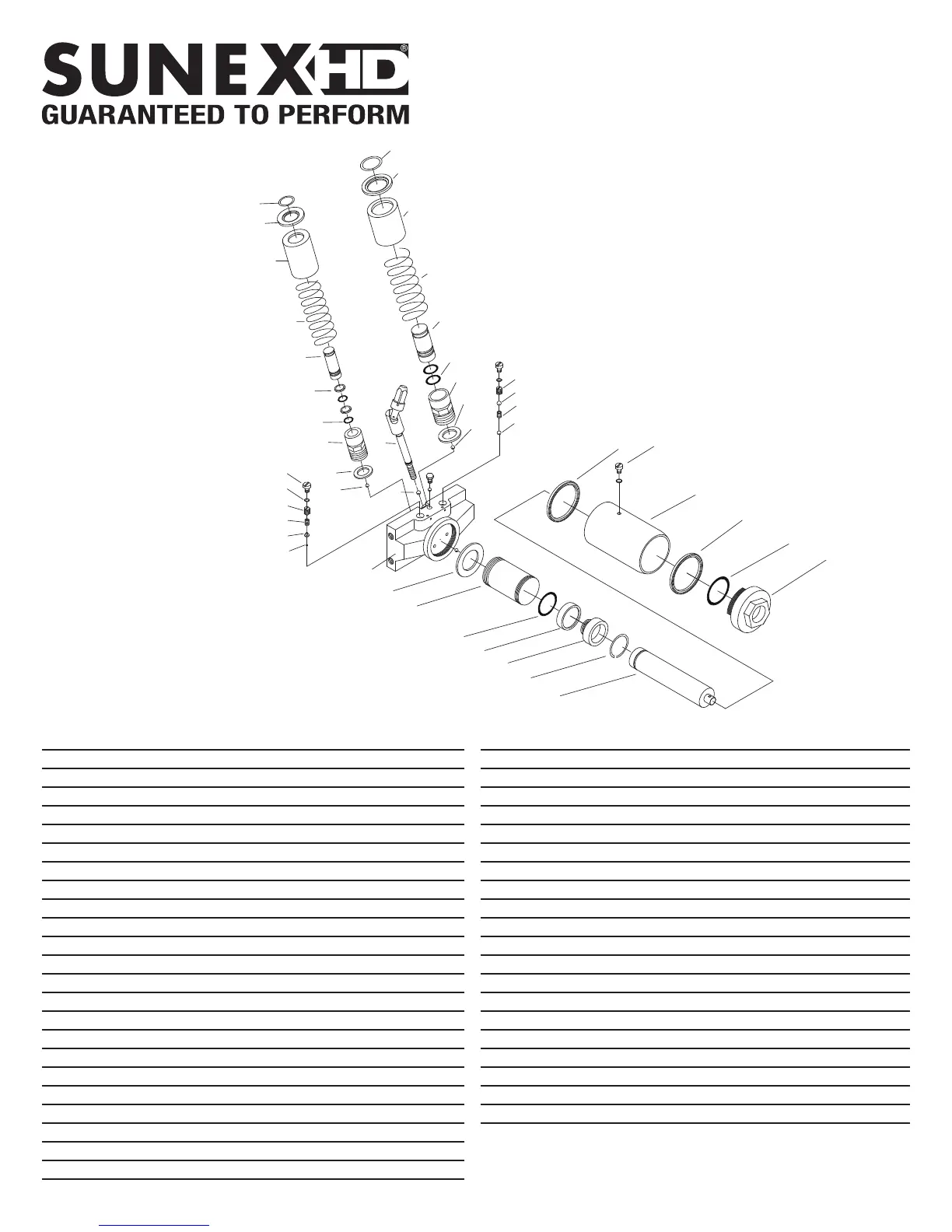

PARTS LIST
AND DRAWING
66037 REV. A
CAPACITY: 3.5 TON
SERVICE JACK
REF # PART# DESCRIPTION QTY
1 * Steel Ball (7.5) 1
2 Large Pump Housing 1
3 * O-Ring (20.4x2.65) 2
5 Big Pump Piston 1
6 Pump Spring 1
7 RSDC22 Dust Cover 1
8 Washer 1
9 RSRR27 Retaining Ring (25) 1
10 RS35T18 Universal Joint Assembly 1
11 * Steel Ball (6) 2
12 * Brass Washer 1
13 Small Pump Housing 1
14 * O-Ring (10x2.65) 2
15 * Back-up Washer (15x10.6x1.25) 2
16 Small Pump Piston 1
17 Pump Spring 1
18 RSDC15 Dust Cover 1
19 Washer 1
20 RSRR16 Retaining Ring (15) 1
21 RSOFS37 Oil Fill Screw (incl. #22) 3
22 * O-Ring (7.1x1.8) (incl. with #21) 3
23 Relief Valve Bolt 1
24 * Relief Valve Spring 1
REF # PART# DESCRIPTION QTY
25 * Plug 1
26 * Steel Ball (4) 1
27 Hydraulic Block 1
28 * Cylinder Seal 1
29 Cylinder 1
30 * O-Ring (31x4.6) 1
31 * Gasket 1
32 Ram Bearing 1
33 Retaining Ring (30) 1
34 Ram 1
35 Cylinder Nut 1
36 * O-Ring (29.6x3.5) 1
37 * Gasket 1
38 Reservoir Tube 1
39 * Gasket 1
40 * Steel Ball (5) 4
41 * Separator Spring 1
42 * Steel Ball (8) 1
43 * Spacer 1
44 * Brass Washer 1
