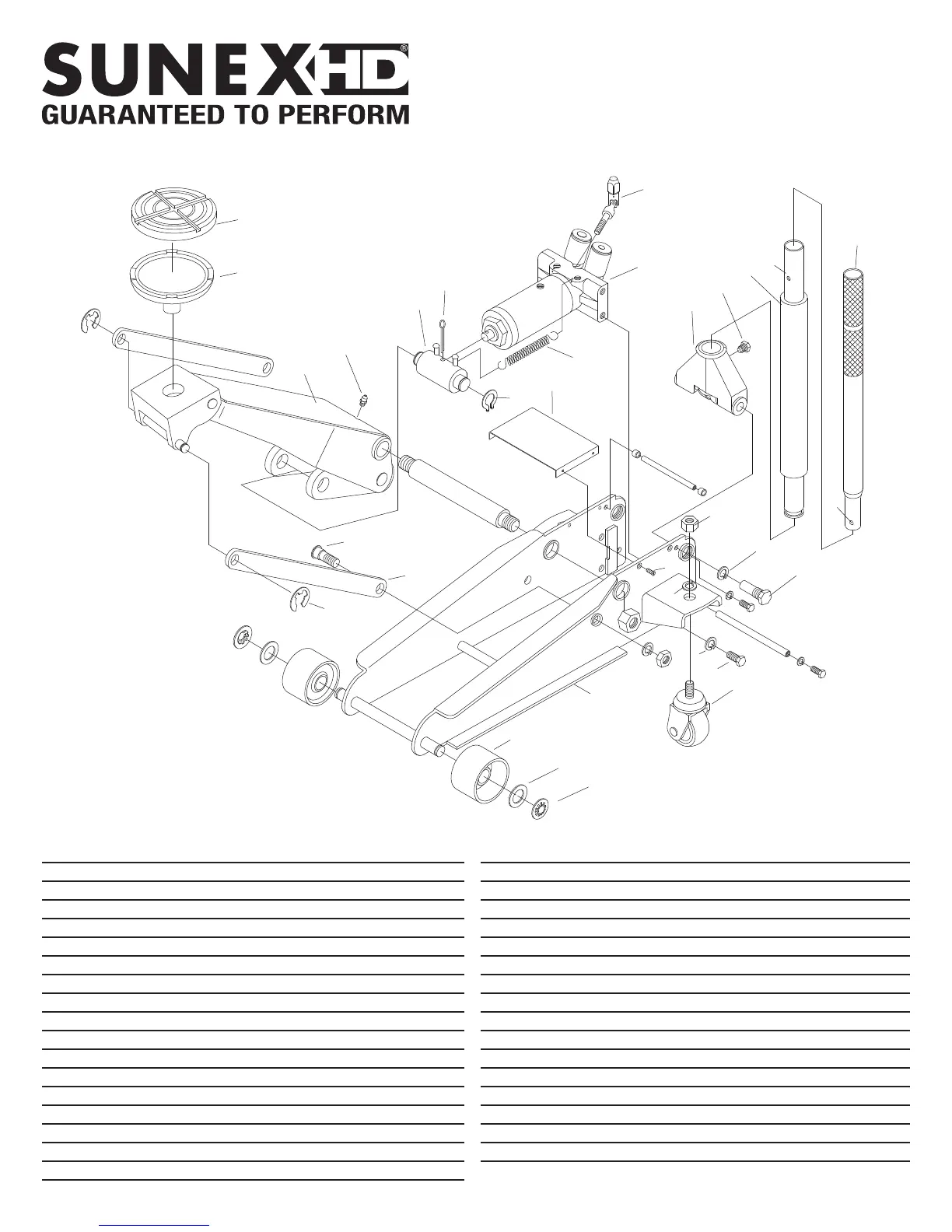

PARTS LIST AND DRAWING
66037 REV. A
CAPACITY: 3.5 TON
SERVICE JACK
REF # PART# DESCRIPTION QTY
1 RS35T01 Star Ring (20) 2
2 RS35T02 Washer (M20) 2
3 RS35B03 Front Wheel 2
4 Side Plate Assembly 1
5 RS35B10 Rear Caster Assembly (incl. #8, 10) 2
6 Bolt (M12x22) 4
7 Washer (12) 4
8 Washer (16) (incl. with #5) 2
9 Bolt (M5x12) 4
10 Nut (M16) (incl. with #5) 2
11 Washer (18) (incl. with #12) 2
12 RS35B11 Yoke Retaining Bolt (incl. #11) 2
13 RS35T17BK Upper Handle 1
14 Handle Button 1
15 RS35T15BK Lower Handle 1
16 RS35T20S Handle Bumper 1
17 RS35T13 Handle Set Screw (incl. #18) 1
REF # PART# DESCRIPTION QTY
18 RS35B16 Handle Yoke (incl. #17) 1
19 RS35T18 U-Joint 1
20 RS35B20 Power Unit Assembly 1
21 RS35T19 Return Spring 2
22 Cover Plate 1
23 Retaining Ring (25) 2
24 Pin (A4x55) 1
25 RS35B24 Linkage Rod 2
26 RS35T12 Grease Fitting 1
27 Lift Arm 1
28 Link Rod Linkage Bolt 2
29 Link Rod 2
30 Cotter Ring (15) 2
31 RS35B30 Saddle 1
32 RS35B31NL Rubber Saddle 1
RS66037APLK Product Label Kit (not shown) 1
