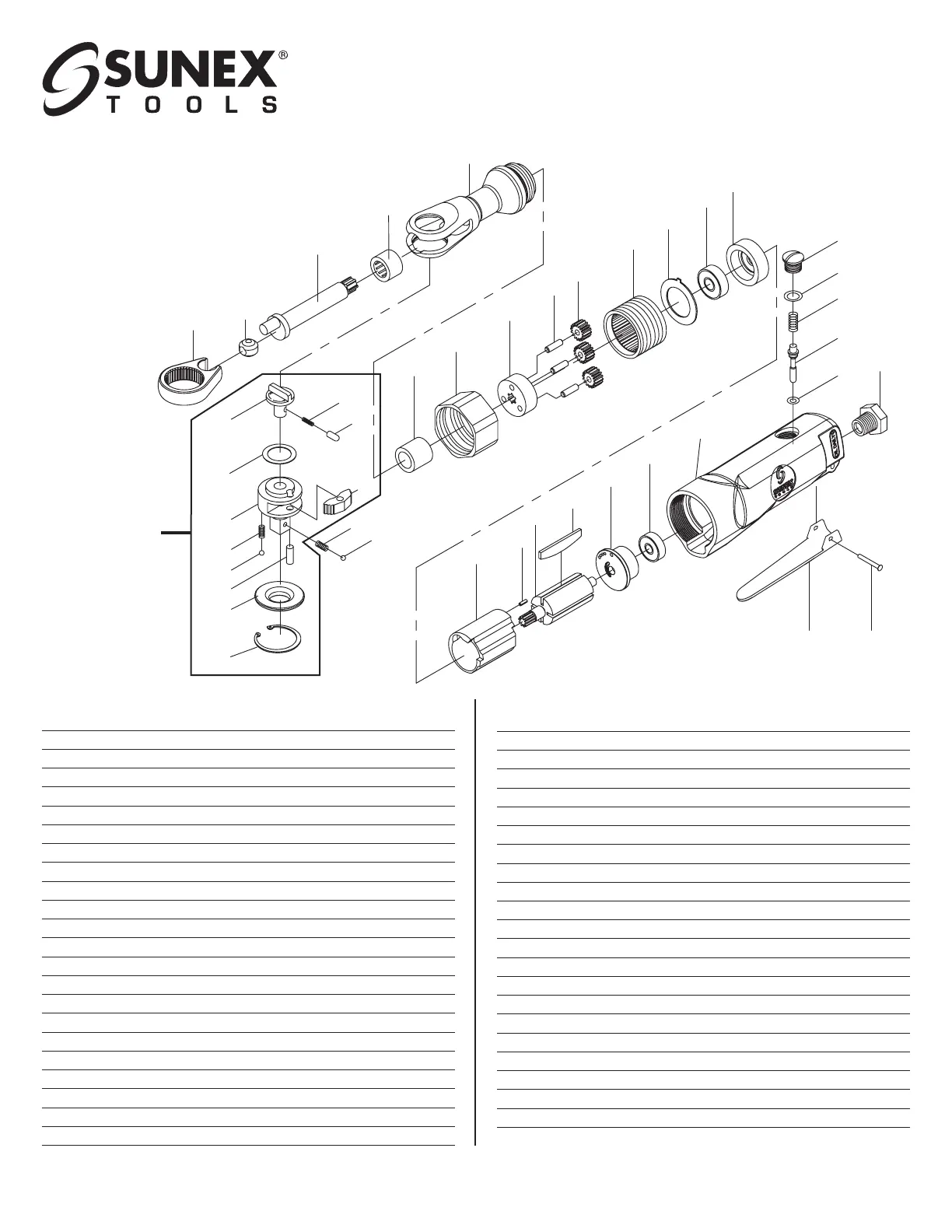

SX113: Parts Breakdown & Operating Manual 3
SX113
3/8" DRIVE
AIR RATCHET
WRENCH
HEAD KIT
RSRHK100C
REF. PART DESCRIPTION QTY.
NO. NO.
1 RS11301 Housing 1
2 RS11302 Air Inlet 1
3 RS11304 Throttle Lever 1
4 RS11305 Lever Pin 1
5 RS11306 Valve Stem 1
6 RS11409 O-Ring 1
7 RS11308 Spring Pin 1
8 RS11411 Valve Plug 1
9 RS11310 Washer 1
10 RS11311 O-Ring 1
11 RS11312 Threaded Ring Gear 1
12 RS11415 Clamp Nut 1
13 RS11416 Planet Gear 3
14 Gear Pin (incl. with #15) 3
15 RS11418 Gear Plate (incl. #14) 1
16 RS11317 Crank Shaft 1
17 * 3/8" Ratchet Anvil 1
18 RS11319 Ratchet Housing 1
19 RS11320 Bushing 1
20 RS11423 Needle Bearing 1
21 RS11322 Drive Bushing 1
22 RS11323 Ratchet Yoke 1
REF. PART DESCRIPTION QTY.
NO. NO.
23 RS11324 Cylinder 1
24 RS11427 Rotor 1
25 RS11428 Rotor Blade 4
26 RS11429 Front End Plate 1
27 RS30524 Ball Bearing (608ZZ) 1
28 RS11329 Rear End Plate 1
29 RS21114 Ball Bearing (626ZZ) 1
30 RS11433 Spring Pin 1
31 * Thrust Washer 1
32 * Spring Pin 1
33 * Sleeve 1
34 * Ratchet Pawl 1
35 * Pin 1
36 * Reverse Button 1
37 * Retainer Ring 1
38 * Spring Pin 2
39 * Steel Ball 2
40 * Washer 1
41 Spring 1
42 Steel Ball 1
43 RSSX113PLK Product Label Kit (not shown) 1
*Available only in head kit, Part #RSRHK100C. Only items identified by part # are available individually.
1
10
8
7
5
6
2
4
3
29
26
27
9
11
13
18
20
16
21
22
36
32
33
34
41
42
40
17
38
39
35
31
37
14
15
12
19
28
25
24
30
23
