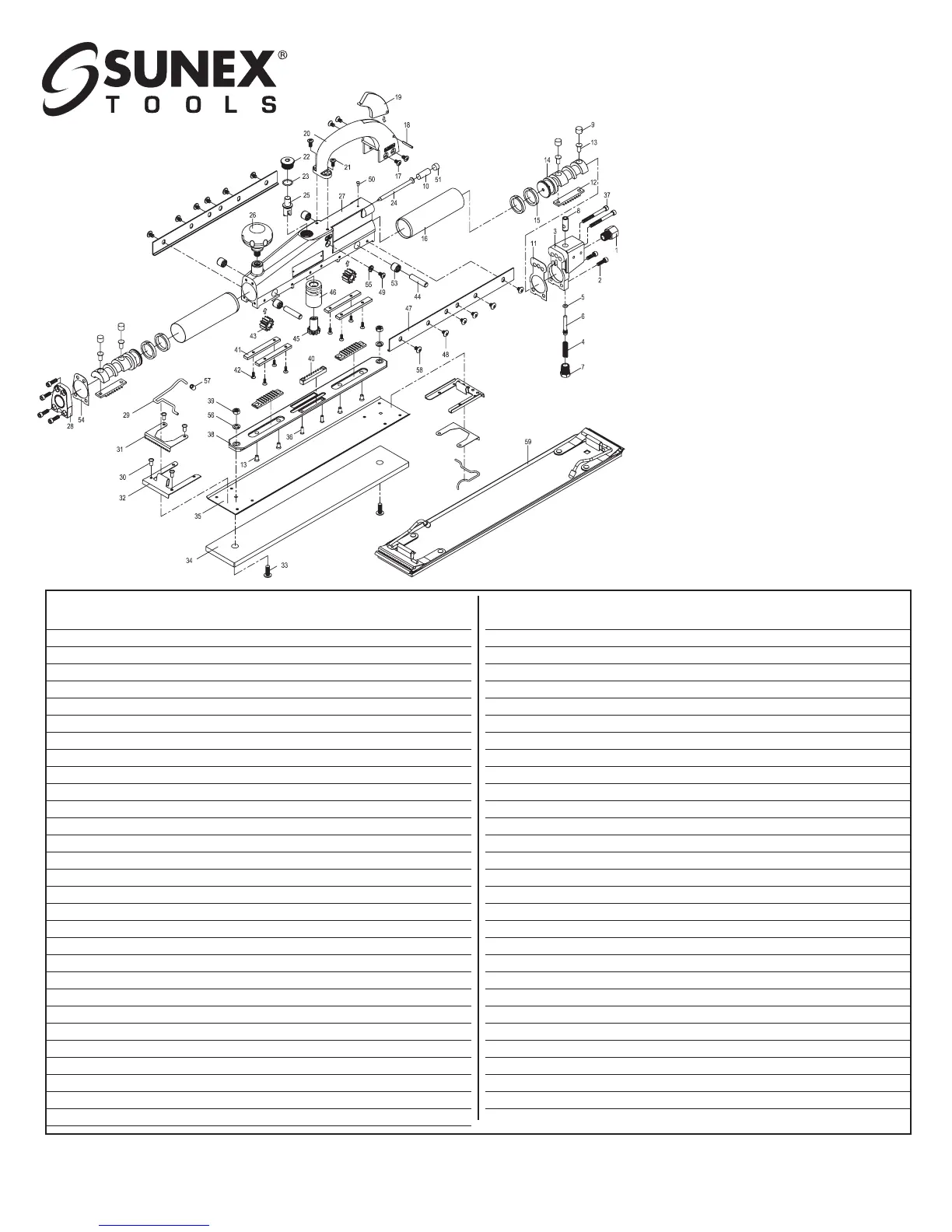

Sunex Tools SX288C - Parts Breakdown; Component Identification

SX288C: Parts Breakdown & Operating Manual 4 11/03/14
SX288C
DUAL PISTON
STRAIGHT LINE
SANDER
 Ref.# Item# DESCRIPTION QTY.
1 RS28601 HoseAdaptor 1
 2 RS28602 CapScrew 6
 3 RS28603 RearCap 1
 4 RS28604 ValveSpring 1
 5 RS28605 O-Ring 1
 6 RS28606 ThrottleValve 1
 7 RS28607 ValvePlug 1
 8 RS28608 ValveBushing 1
 9 RS28609 OilCotton 4
 10  OilCotton(Includedin#27) 1
 11 RS28611 Gasket 1
 12  FlatGear(Includedin#14&38) 4
 13  Rivet(Includedin#14&38) 8
 14 RS28614A PistonAssembly(Incl.#12,13) 2
 15 RS18615 PistonRing 4
 16  Cylinder(Includedin#27) 2
 17 RS28617 Screw 4
 18 RS28618 SpringPin 1
 19 RS28619 Trigger 1
 20 RS28620 Handle 1
 21 RS28621 Screw 2
 22 RS28622 Plug 1
 23 RS28623 O-Ring 1
 24  Pin(Includedin#27) 1
 25 RS28625 Switch 1
 26 RS28626 PalmHandle 1
 27 RS28627 Housing(Incl.#10,16,24,46,50&51) 1
 28 RS28628C FrontCover 1
 29 * WireClip 2
30 * Rivet 8
Ref.# Item# DESCRIPTION QTY.
 31 * CompressionSpacer 2
 32 * FixedPlate 2
 33 RS28633 Screw 2
 34 * FoamPad 1
 35 * PadPlate 1
 36  Rivet(Includedin#38) 2
 37 RS28637 CapScrew 2
 38 RS28638A CarrierAssembly(Incl.#12,13,36,40) 1
 39 RS28639 LockingNut 2
 40  SlideGear(Includedin#38) 1
 41 RS28641 BrassPlate 4
 42 RS28642 Screw 8
 43 RS28643 Gear 2
 44 RS28644 GearShaft 2
 45 RS28645 SwitchGear 1
 46  SwitchSleeve(Includedin#27) 1
 47 RS28647 BoltGuide 2
 48 RS28648 Screw 12
 49 RS28649 Screw 1
 50  Rivet(Includedin#27) 1
 51  Plug(Includedin#27) 1
 53 RS28653 NeedleBearing 4
 54 RS28654 FrontGasket 1
 55 RS28655 Washer 1
 56 RS28656 Washer 2
 57 * PlasticPlug 2
 58 RS28658 Screw 2
 59 RS28635A PadAssembly(incl.#29-35,57) 1
NotShownRSSX288CLK ProductLabelKit 1
