Steering Linkage + Servo Rocker Arm

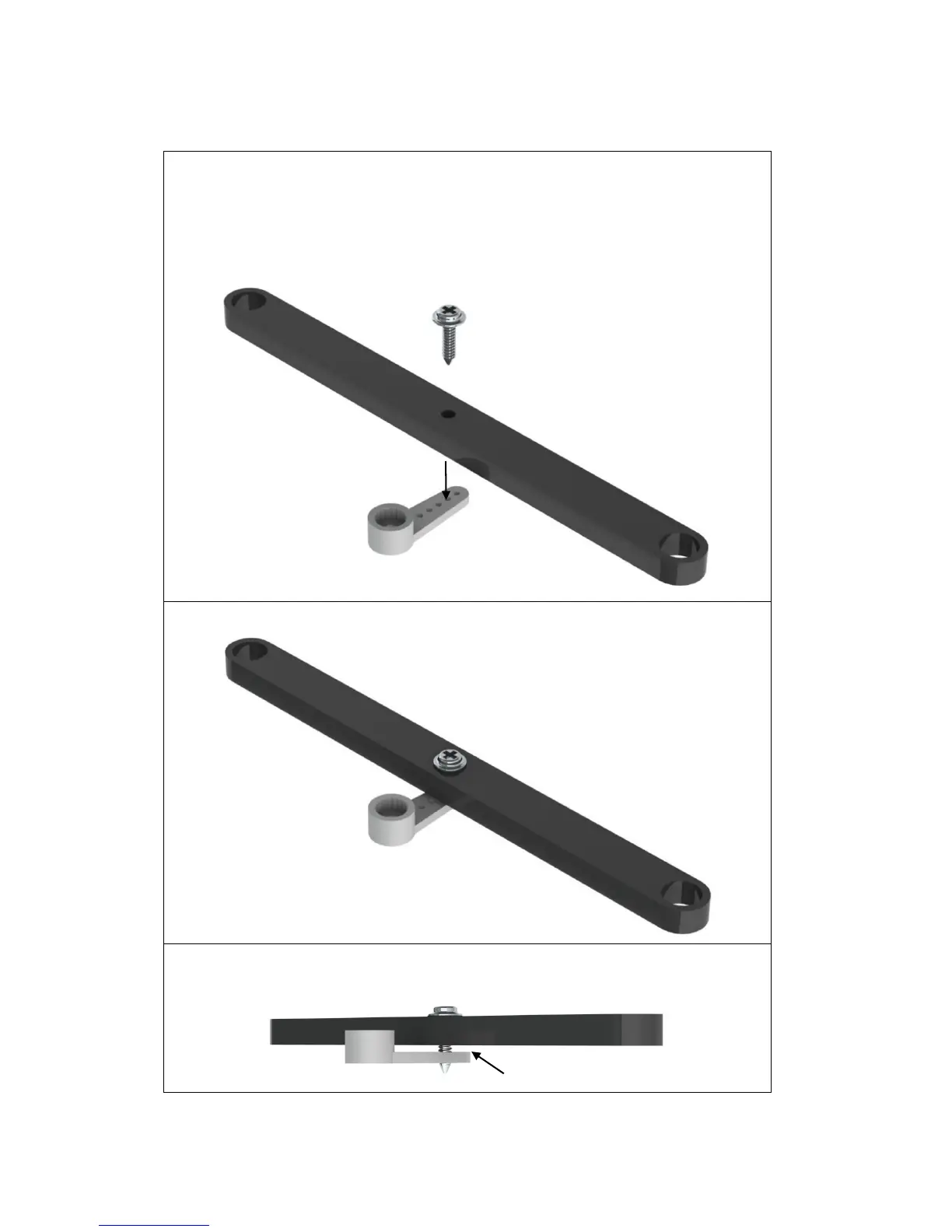

a) Connect the following acrylic plate to the second hole of the rocker arm (see
the figure below) with an M2*8 self-tapping screw.
 The M2*8 self-tapping screw is contained in the package of the servo; it
is one of the two longest screws.
 Also the rocker arm is packaged together with the servo.
b) When completed, the assembly should look like the figure below.
Be careful not to tighten the screw too much. Keep a gap of about 1mm
between the two.
