SunFounder Smart Video Car Kit - Page 37

35

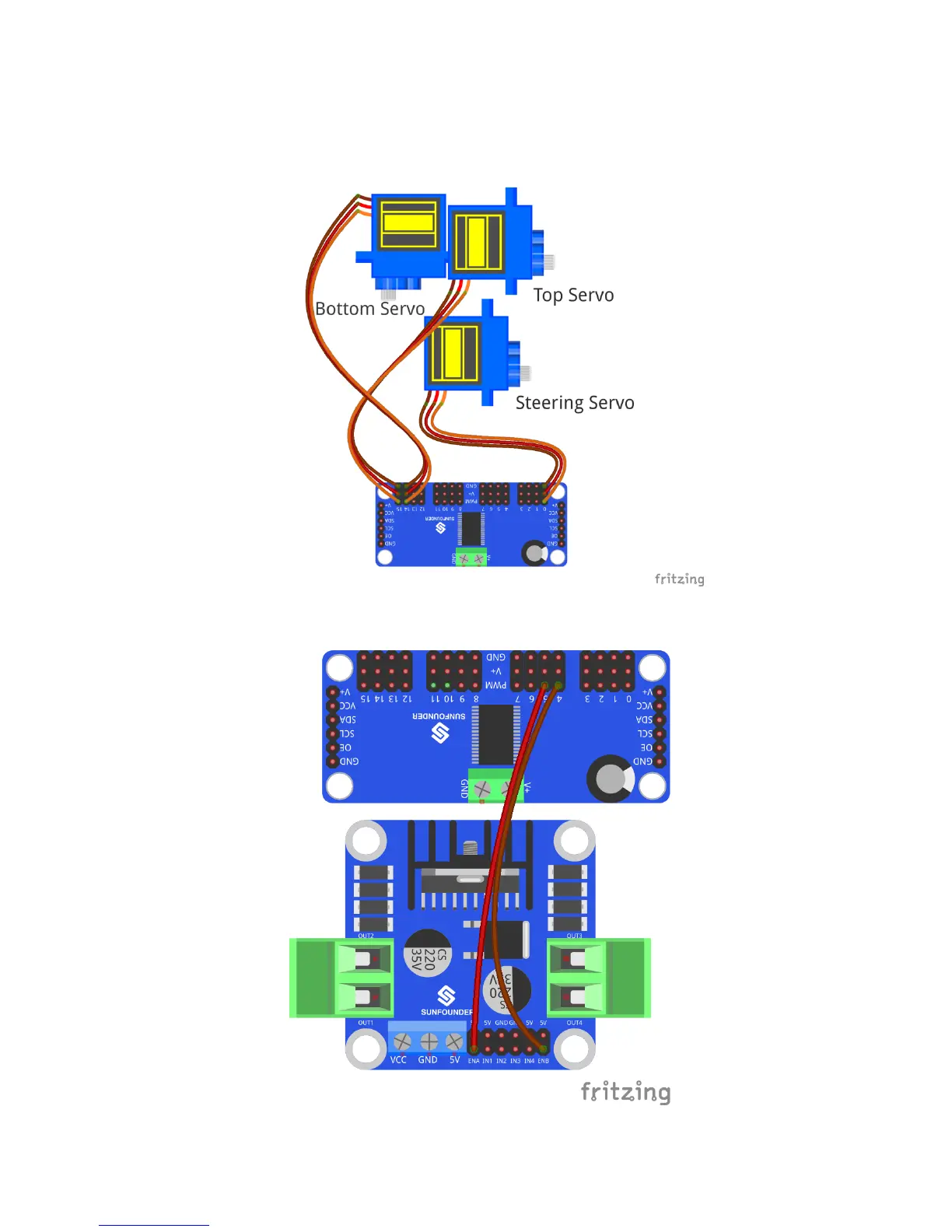

Step 4: Hook up the servo that controls the car's direction to CH0 of the servo
controller, and the two servos that control the view of the camera to CH14 and
CH15 respectively, as shown below:
Step 5: Connect the motor driver with the servo controller.
