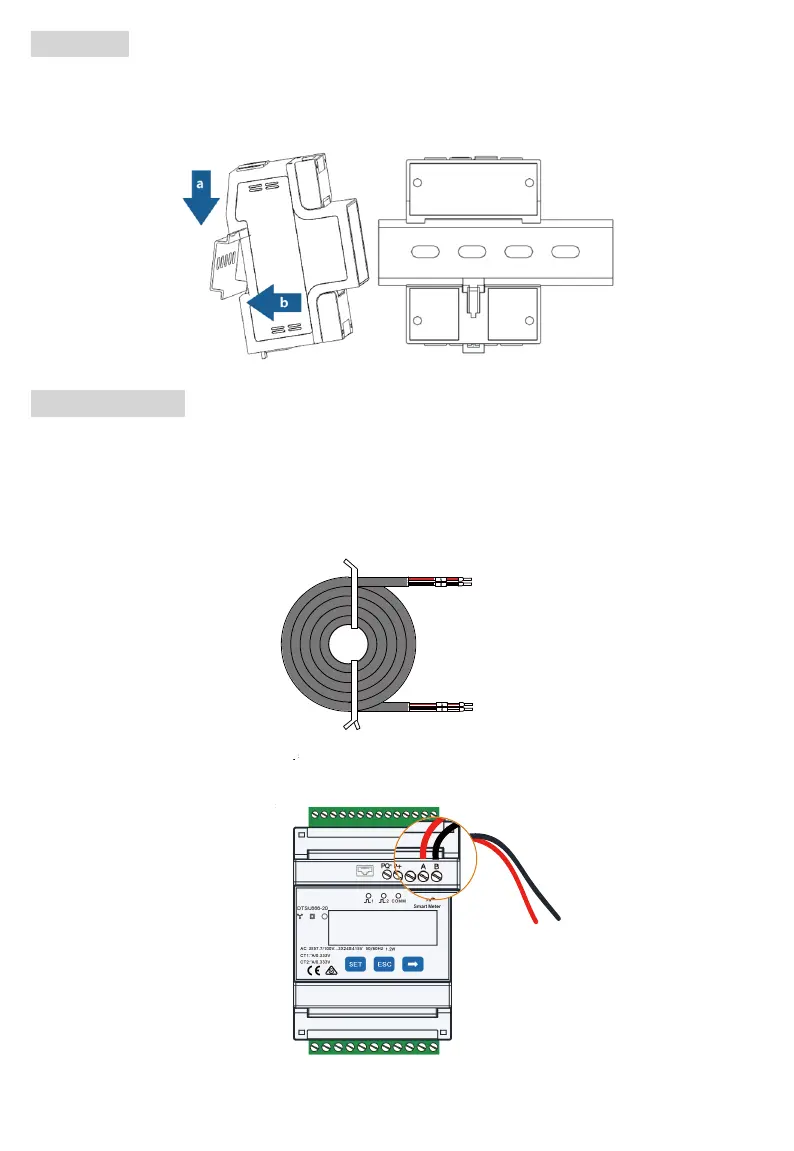

Mount the Smart Energy Meter to a 35 mm DIN rail. Hook it into the top edge of the rail and press down
until it snaps into place.
Installation
7
Cable Connection
Step 1 Turn off solar switch, load switch, main switch and other power switches, and secure them
against reconnection.
Step 2 Take out the RS485 cable from inverter’s packaging.
Step 3 Connect the plugs A and B to terminals A and B on the Smart Energy
Meter.
B
A
B
A
B
A
To Next Page
