5 Electrical Installation User Manual
18

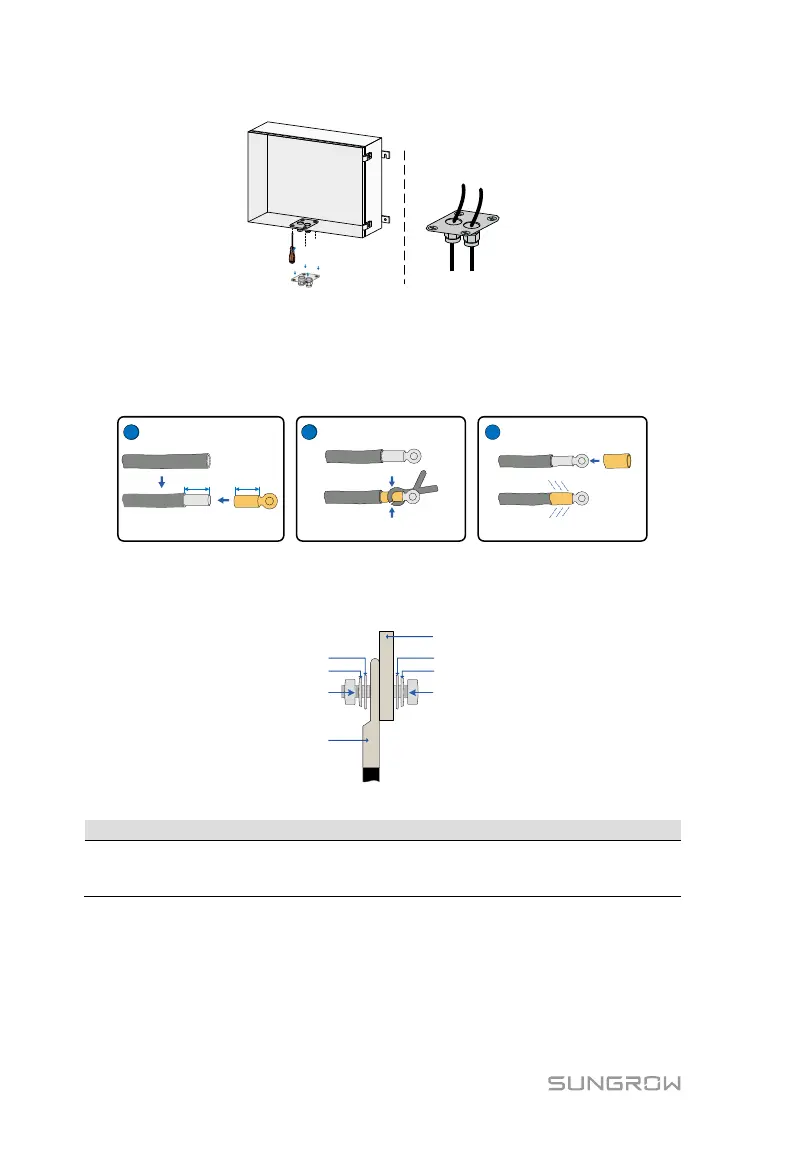

Step 2 Pass the cable with the wire designation "DC+" through the waterproof
terminal "INPUT DC+", and reserve an appropriate length margin.
Step 3 Strip the protective layer and insulation layer of the cable to expose the
copper core of the wire L≈25mm, crimp the cable to an appropriate DT
terminal, and insert it into a heat shrink tube.
Step 4 Fix the crimped DT terminal to the input terminal.
For copper wire, the fixing method is as shown in the figure below, and the
tightening torque is 34~40N.m.
Figure 5-1 Copper wire connection diagram
Copper
connecting
terminal
For aluminum wire, the fixing method is as shown in the figure below, and the
tightening torque is 34~40N.m.
