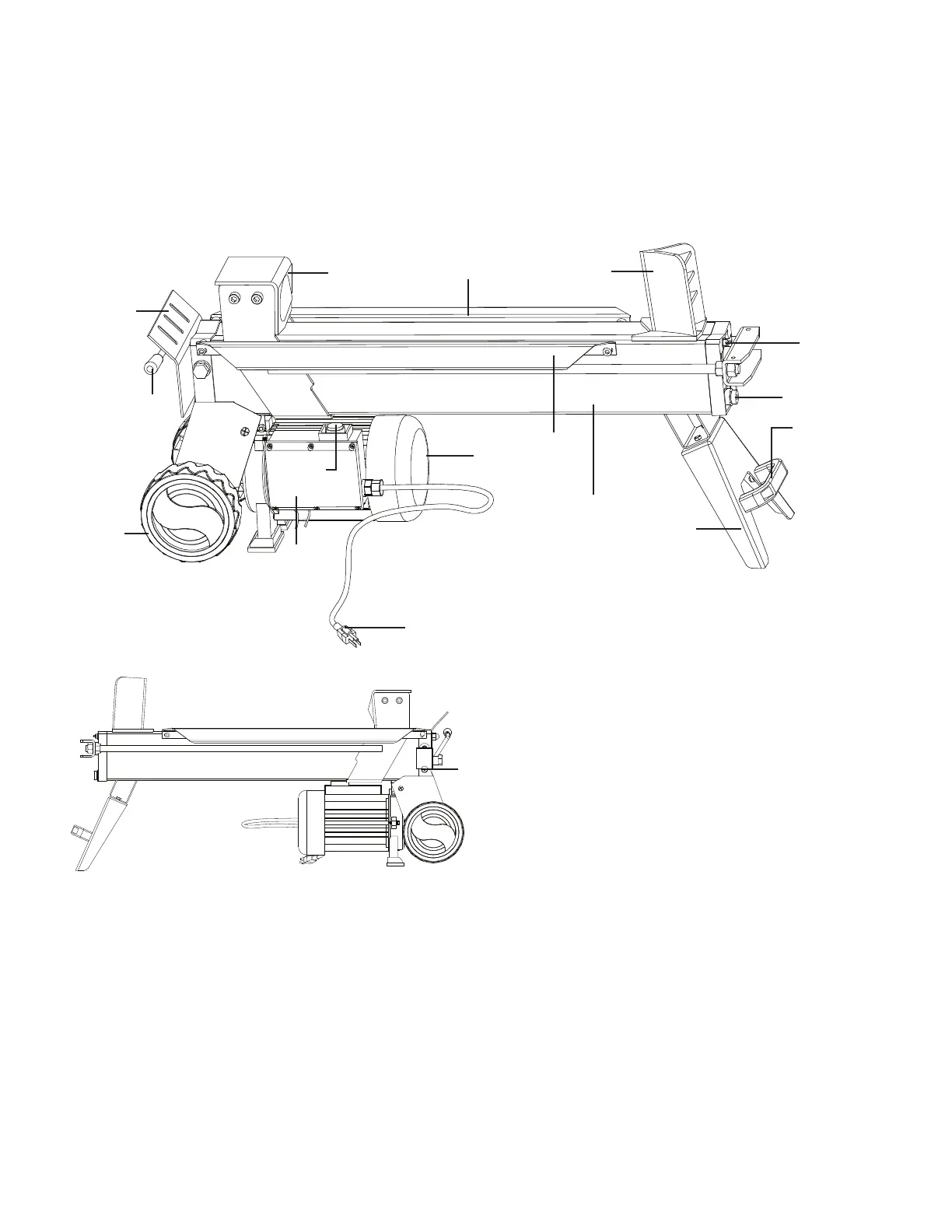

Know Your Electric Log Splitter
Read the owner’s manual and safety instructions carefully before operating the log splitter. Compare the illustration below
to the log splitter in order to become familiar with the location of the various controls and adjustments. Save this manual for
future reference.
1. Log pusher
2. Log rail
3. Splitting wedge
4. Bleed screw
5. Oil drain bolt
6. Lifting handle
7. Supporting leg
8. Log retaining plates
9. Motor
10. Appliance cord
11. On/O switch
12. Switch box
13. Rear wheels
14. Hydraulic control lever
15 Control lever guard
16. Max pressure limit screw
17. Beam
7
8
9
10
11
12
13
14
Technical Data
Motor ......................................... 15A (S3: 5 min on/ 10 min o)
Rated Voltage
................................................... 120 V AC 60 Hz
Splitting Force Max ...........................................................
5 ton
Ram Force/
......................................................................... 5 ton
Continuous Force
Material
.............................................................................. Steel
Log Length Max
.................................................. 20.5 in. (52 cm)
Log Diameter Max ............................................
10 in. (25.4 cm)
Wedge Height
..................................................... 5 in. (12.7 cm)
Beam Height ....................................................... 5.5 in. (14 cm)
Hydraulic Cylinder Size .................................... 29.7 in. x 2.3 in.
(Length x Diameter) .......................................(75.5 cm x 5.9 cm)
Hydraulic Rod Size ........................................... 30.2 in. x 1.2 in.
(Length x Diameter) ..........................................(76.8 cm x 3 cm)
Hydraulic Capacity ................................................ 1.1 gal (4.2 l)
Wheel Size ........................................................... 6 in. (15.2 cm)
Weight ............................................................... 92.6 lbs (42 kg)
15
THE OTHER SIDE
16
1 2
3
4
5
6
17
