sunjoe SPX2003 - Mounting Holders and Compartment; Connecting the Spray Wand; Attaching the High-Pressure Hose

8
3. Slide the trigger gun holder into position (Fig. 3).
4. Slide the hose/cord holder into position (Fig. 4).
5. Fit the 4 small tabs on the Rear compartment into the
holes in the back of the machine. Push inside until the
rear compartment clicks in. Fix the assembly with the two
small Phillips head screws
(Figs. 5 – 6).
6. Fit the spray wand into the gun and turn the rotatable
end-piece of the wand until the two parts are completely
locked (Fig. 7).
7. Screw the end of the high-pressure hose clockwise into
the trigger gun and tighten securely (Fig. 8). To release the
high-pressure hose from the trigger gun, unscrew the end
of the hose counterclockwise.

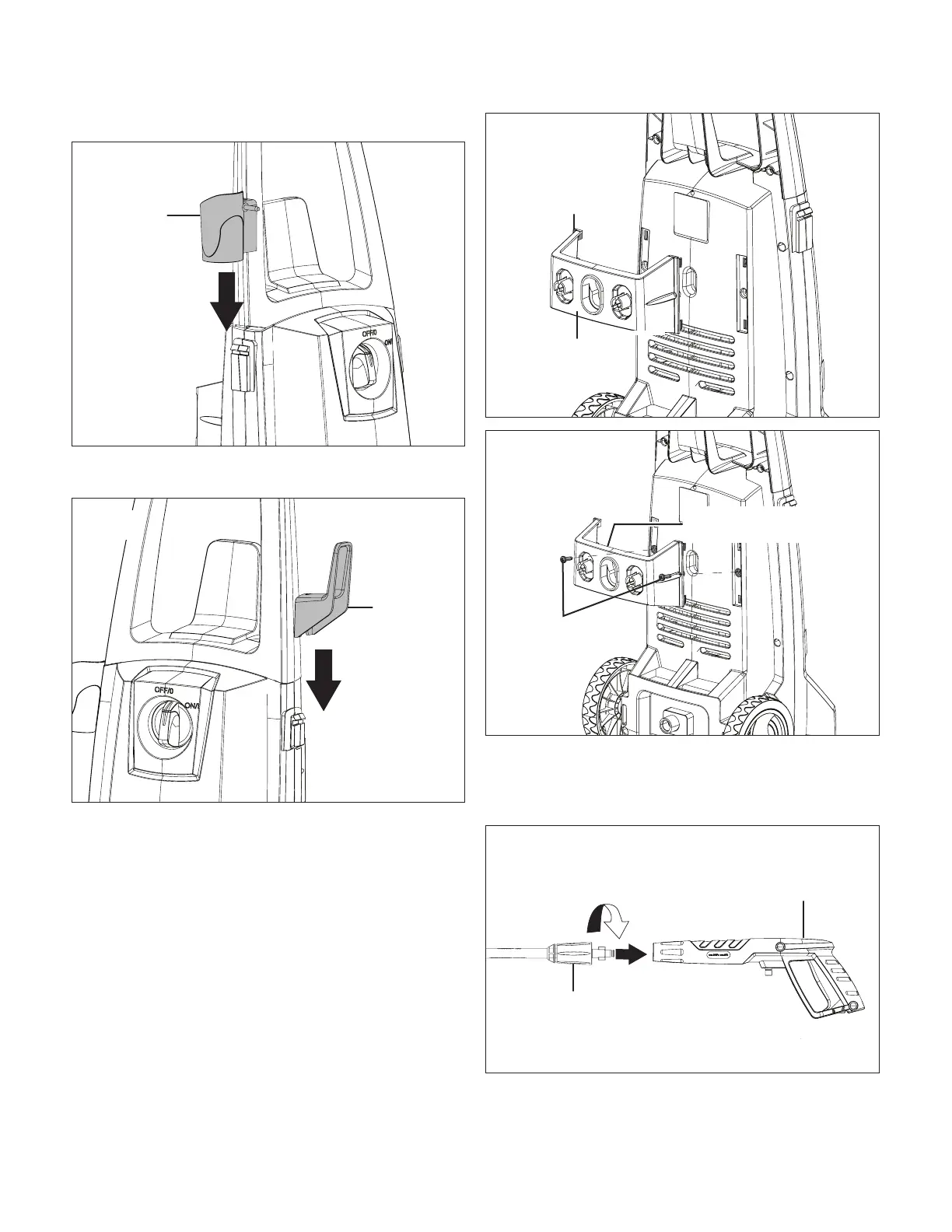

Fig. 3
Trigger gun
holder
Fig. 4
Hose/
cord holder
Fig. 5
Rear compartment
Insert the tab
into the hole
Fig. 6
Rear compartment
Small Phillips head
screws
Spray wand
Trigger gun
Fig. 7
