6
Know Your Electric Tiller + Cultivator

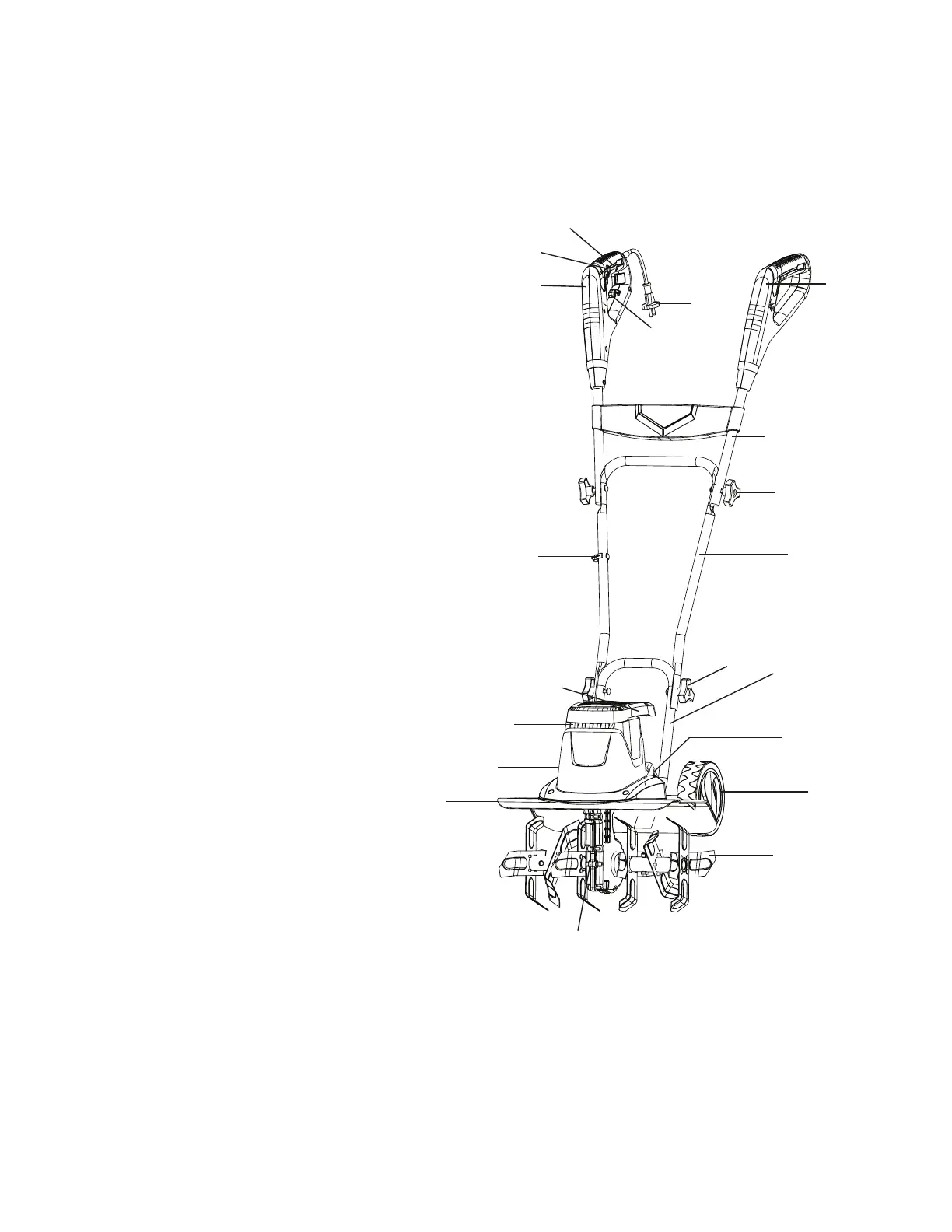

Read the owner’s manual and safety instructions carefully before operating the electric tiller + cultivator. Compare the illustration
below to the electric tiller + cultivator in order to familiarize yourself with the location of the various controls and adjustments.
Save this manual for future reference.
1. Trigger switch
2. Safety lock button
3. Right handle grip
4. Appliance cord
5. Extension cord restraint hook
6. Left handle grip
7. Upper handle
8. Upper handle knob and bolt (2)
9. Cable clip
10. Middle handle
11. Middle handle knob and bolt (2)
12. Lower handle
13. Transport handle
14. Air vents
15. Motor housing
16. Guard
17. Wheel adjustment
18. Wheels
19. Steel tines
20. Gear box
Technical Data
Rated Voltage ................................. 120 V ~ 60 Hz
Power .............................................. 13.5 A
No Load Speed ............................... 370 ± 10% rpm
Handle ............................................. Foldable (3 sections)
Rotor ............................................... 6 steel blades
Cultivating Width Max .................... 16 in. (40.6 cm)
Cultivating Depth Max .................... 8 in. (20.3 cm)
Weight ............................................. 27.1 lbs (12.3 kg)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
