Know Your Cordless Cultivator + Weeder
Read the owner’s manual and safety instructions carefully before operating the cordless cultivator + weeder. Compare the
illustration below to the cordless cultivator + weeder in order to familiarize yourself with the location of the various controls and
adjustments. Save this manual for future reference.
R
R
Technical Data
Motor ............................................................................... 250 W
Battery Voltage Max* ................................................... 24V D.C.
Battery Capacity .............................................................. 2.0 Ah
Charger Input .................................................... 100 – 240V AC,
50 – 60 Hz, 50 W
Charger Output ................................... 25.2V D.C.
1400 mA
Charge Time Max ..................................................... 1 hr 20 min
Cultivating Width Max ........................................ 0.9 in. (23 mm)
Blade .................................................... 6-inch steel tilling blade
No Load Speed ............................................................ 250 rpm
Telescoping Pole Length ............................. 28.3 inch – 37 inch
(72 cm – 94 cm)
Net Weight ............................................................. 4.4 lbs (2 kg)
*Initial no-load voltage, when fully charged, peaks at 24 volts; nominal voltage under typical load is 21.6 volts.
1
2
4
5
6
7
THE OTHER SIDE
8
9
10
11
13
15
17
18
19
20
21
22
3
12
14

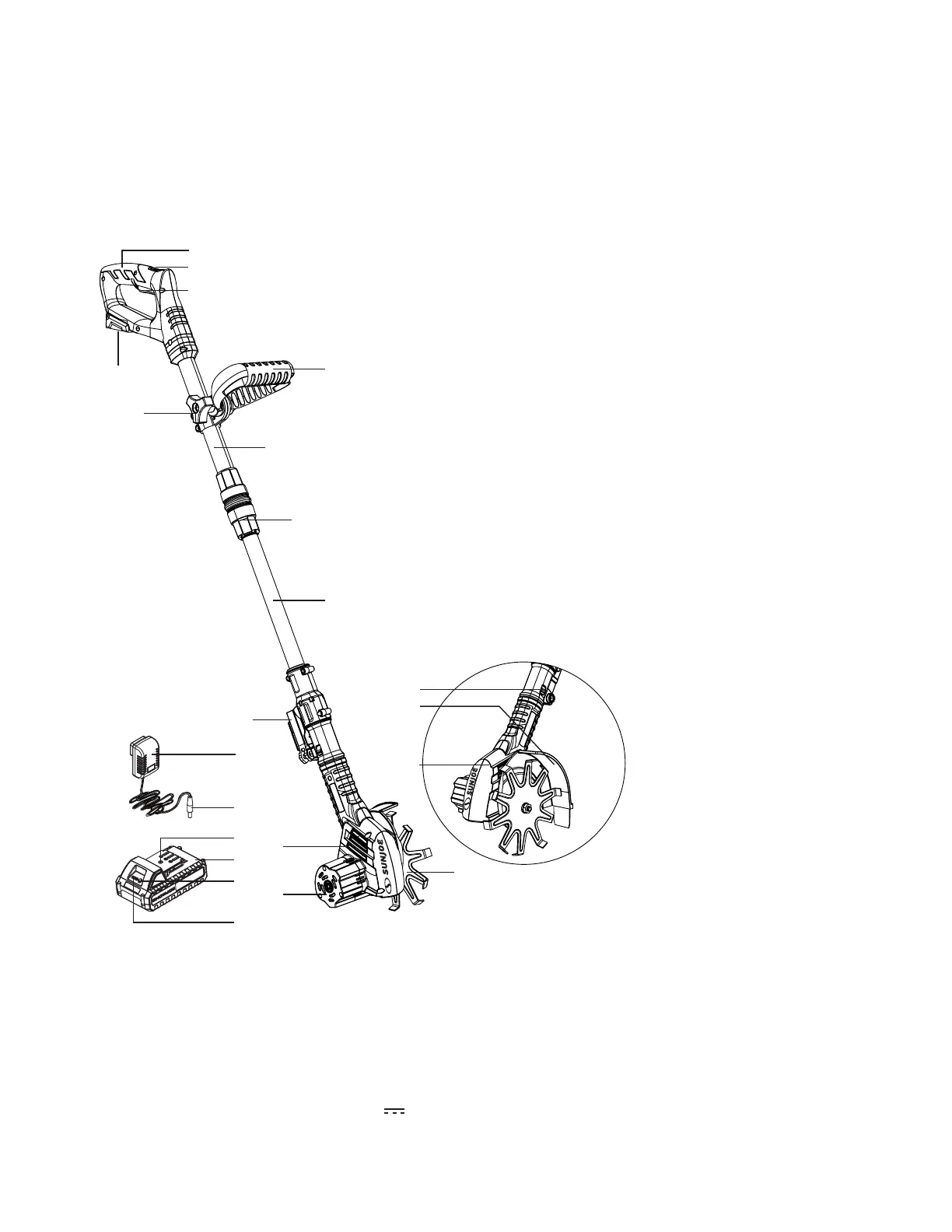

1. Soft grip
2. Safety lock button
3. On/O switch
4. Auxiliary handle
5. Upper pole
6. Telescoping lock
7. Telescoping pole
8. Releasing tabs (2)
9. Blade + dust guard
10. Cultivator + weeder head
11. Steel blade
12. Battery indicator
13. Motor
14. Push button for battery indicator
15. 24V iON+ lithium-ion battery
(24VBAT-LTE) featuring exclusive
EcoSharp
®
technology
16. Air vents
17. Charger socket
18. Charger plug
19. 24V iON+ lithium-ion charger
(24VCHRG-AC)
20. Cultivator + Weeder head lock
21. Handle knob
22. Battery compartment
