5 / 9
Country of Origin: China

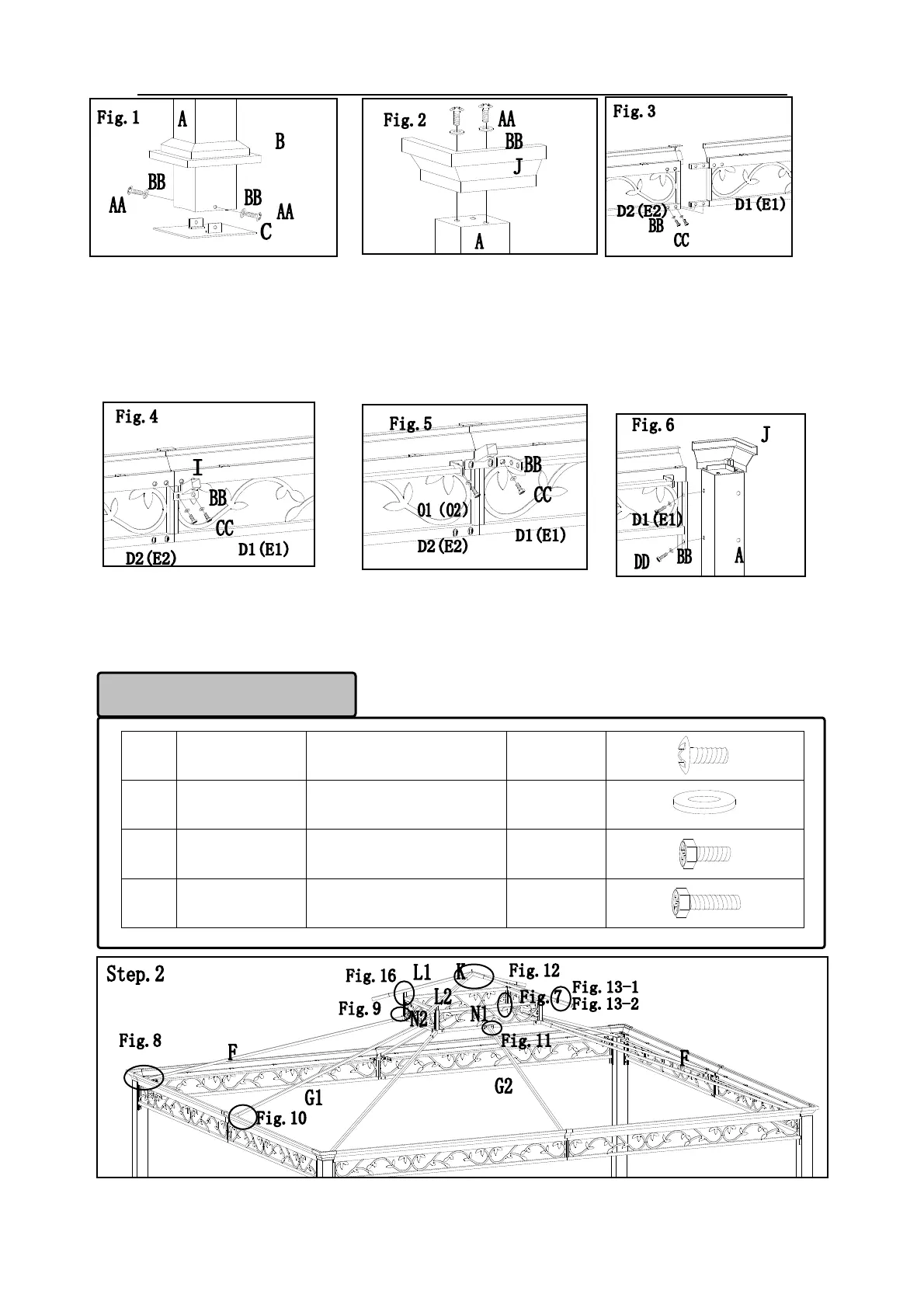

Fig.1:Put Base cover(B)through Post(A)and lift up base cover,then attch base(C)to bottom of post(A)by
using bolt(AA)、washer (BB).
Fig.2:Attach Finial for corner(J) to top of post(A) by using bolt(AA)、washer (BB).
Fig.3:Insert Frame(D1/E1) to Frame(D2/E2),then by using bolt(CC)and washer (BB).
Hardware Pack 2
AA H010110016
M6*15
bolt
4PCS
BB H050010020
M6
flat washer
28 PCS
CC H010020011
M6*15
bolt
16 PCS
DD H010020015
M6*25
bolt
8 PCS
Fig.4:Attach middle beam connector(I) to frame by using bolt(CC)and washer(BB)
Fig.5:Attach netting bar(O1/O2) to frame (D1/D2/E1/E2) by using bolt (CC) and washer (BB).
Fig.6:Attach Frame (D1/D2/E1/E2) to post(A) by using bolt (DD) and washer (BB).
