Sunjoy A101011500 - Hardware Pack 2; Additional Hardware Components; Assembly Step 2; Frame Beam and Connector Assembly

6 / 11
Country of Origin: China




Fig.1: Put base cover (P) into
post (A5/A6/A7), then attach
base slice (Q) to post (A5/A6/A7)
by screw (AA) and flat washer
(BB).
Fig.2: Insert long side left beam
（B3）into long side right beam
（B4）; Same way insert short side
left beam （C3）into right side
beam
(
C4
)
.
Fig.2-2: Attach middle beam
connector（G）to across beam
（B3、C3、B4、C4）to the across
beam by using bolt（CC）,flat
washer（BB）..
Hardware Pack 2
Label Description
Part#
Qty
Image
BB M6 Flat washer H050010023 16pcs
EE M6 Nut H040010011 8PCS
FF M6*35 bolt H010020013 8pcs

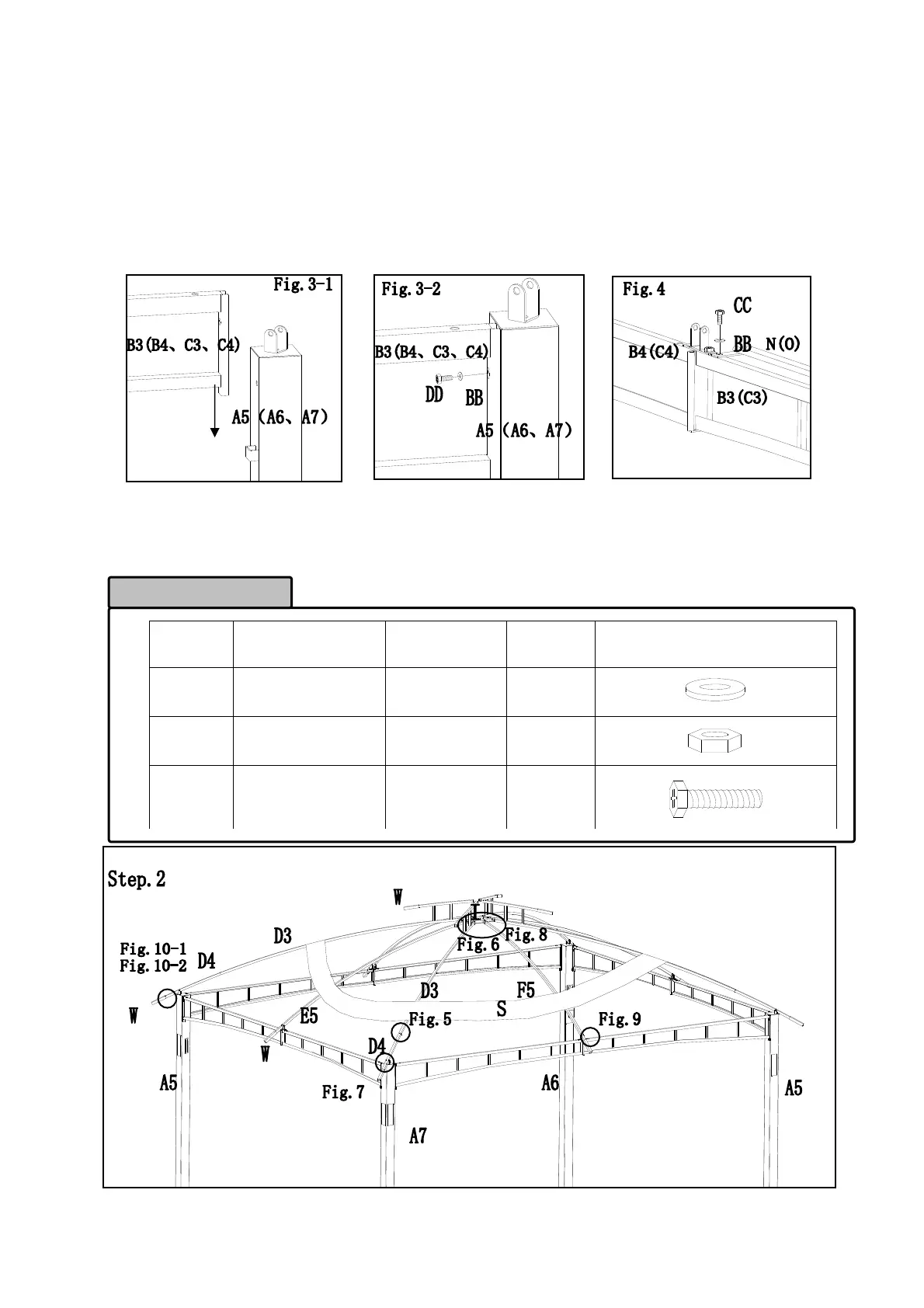

Fig.3-1: Attach assembled
across beam（B3、C3、B4、C4）
to post（A5、A6、A7）.

Fig.3-2: Fix the assembled
across beam （B3、C3、B4、
C4）to post（A5、A6、A7）by using
Bolt（DD）and flate washer（BB）.
Fig.4: Attach mosquito netting
rod （N、O）to across beam
（B3、C3、B4、C4）by using
bolt （ CC ） and flat washer
（BB）..
