Sunjoy A101011500 - Page 7

7 / 11
Country of Origin: China





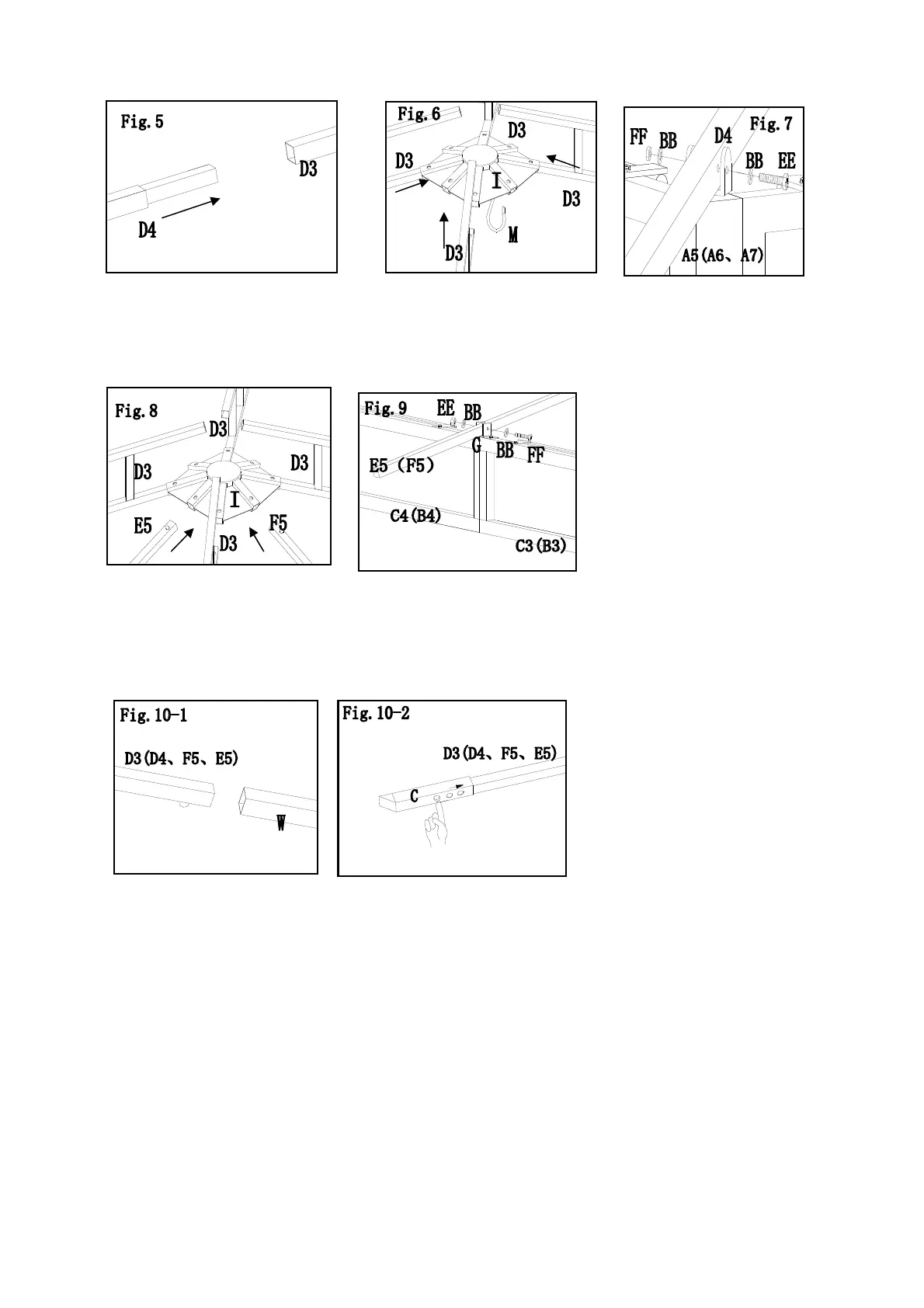

Fig.6: Insert sloping beam
upper end（D3）into big top
connector（I），attach hook（M）
to big top connector（I）.

Fig.7: Fix sloping beam bottom
tube（D4）to top of post（A5、A6、
A7）by using bolt（EE）,flat washer
（BB） and nut（FF）.
Fig.8: Attach top end of middle
beam（F5、E5）to big top
connector（I）.
Fig.10-1: Att
ach adjustable tube
（W）to sloping beam upper tube
bottom end（D3）,sloping beam
bottom tube bottom end（D4）,
and middle beam bottom end
（E5、F5）.
Fig.9: Fix middle beam bottom end
（F5、E5）to middle beam down
connector（G）by using bolt（FF）,
flat washer（BB）and Nut（EE）.
Fig.5: Insert sloping beam
bottom end（D4）into sloping
beam upper end（D3）.
Fig.10-2: Adjust tube length（W）
to shortest，Spread big canopy
（S）on big top frame.
