Country of Origin: China

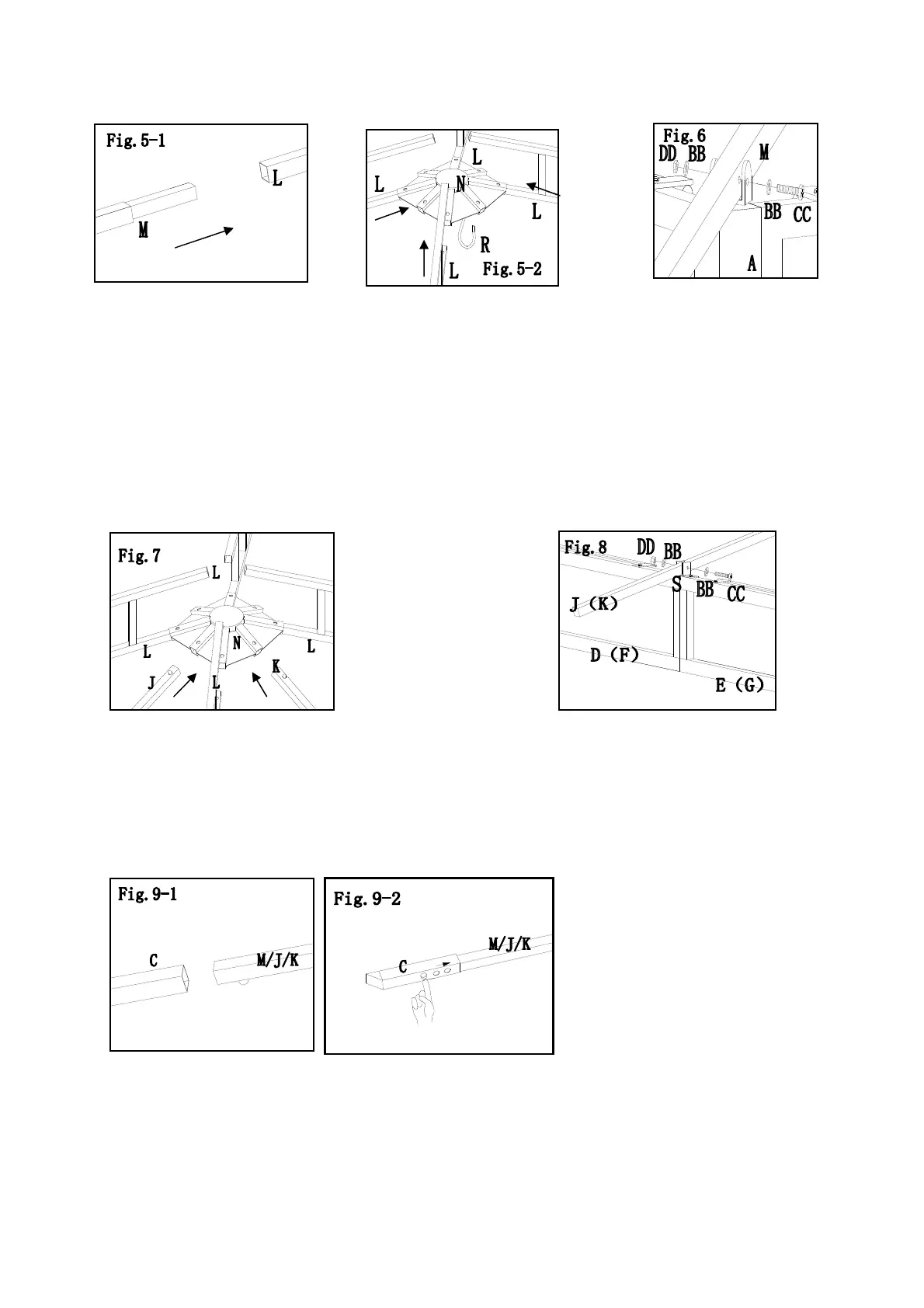

Fig.6 Attach the
assembled slanting beam
bottom end（M）to plate
top of post（A）,by using
bolt（CC），washer（BB）
and nut（DD）.
Fig.5-1:Insert slanting bottom
tube（M）into slanting beam
（L）.
Fig.5-2：Insert slanting beam
upper end（L）into large top
connector（N）。then attach
hook（R）to top connector
Fig.7-2：Attach long middle beam
（J）to large top connector（N）,
（ repeat step for short middle
beam（K）.
Fig.8： Attach long middle beam（J）short
middle beam（K）to beam connector（S）,by
using bolt（CC）,washer（BB）,nut (DD),
cover large canopy to large top frame, do
not spread out. .
Fig.9-1: Insert adjustable
tube（C）to s
lanting beam
bottom end(M/J/K).
Fig.9-: Adjust tube（C）
length to shortest。
