Sunjoy A106005400 - Step 1 Assembly Procedures; Assembly Step 2; Hardware Pack 2 Details

4 / 8
Country of Origin: China

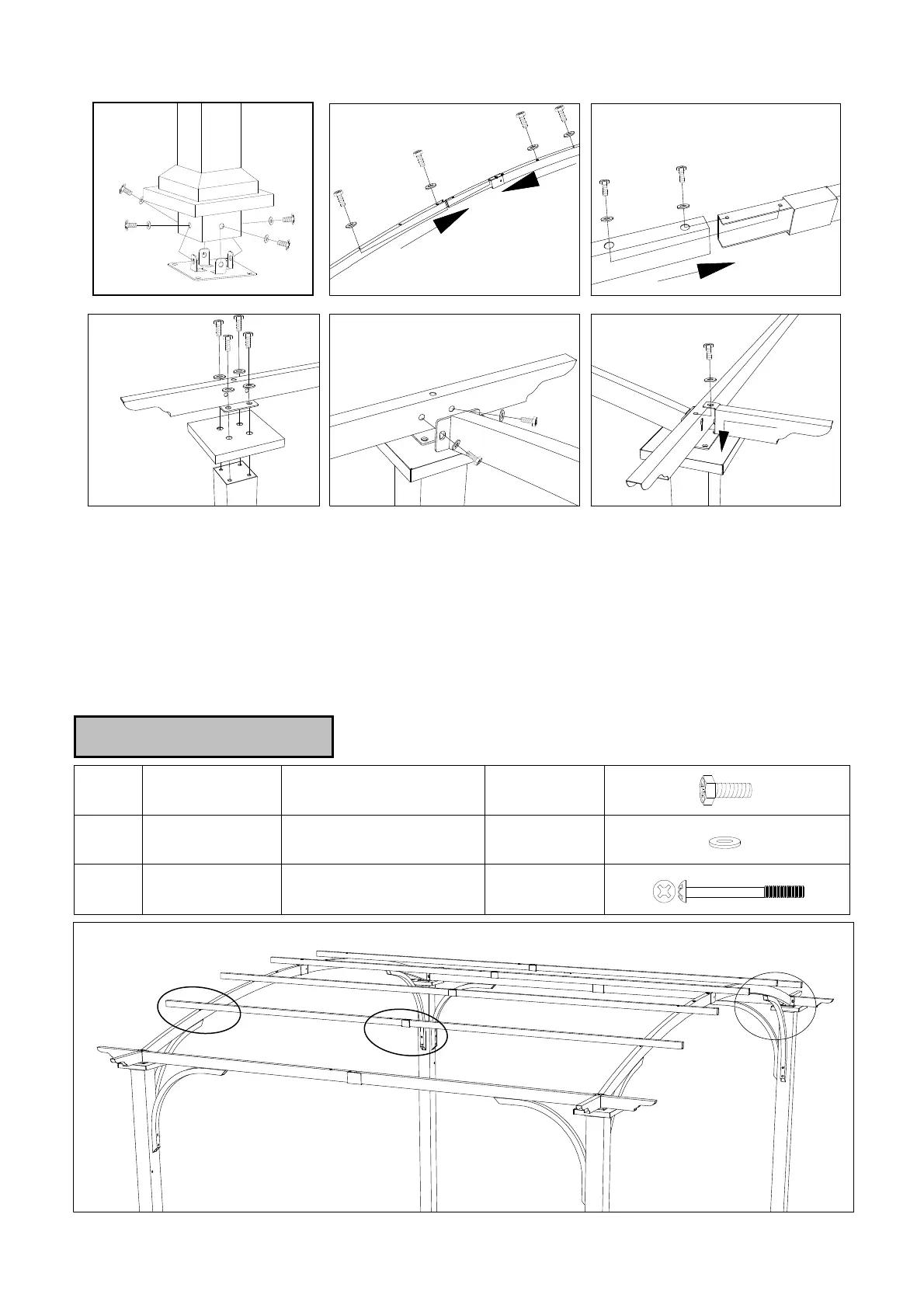

Fig.1‐1:Putthestakecover（J）throughthepost1/post2（H1/H2）,upthestakecover(J),thenattachstake
(I)topost1/post2（H1/H2）bottom，fastenbyusingbolt（CC）andwasher（BB）.
Fig.2:Attach
Arcbeam1/Arcbeam2（C/D）toArcbeamConnector（E）,Byusingbolt（AA）andwasher（BB）.
Fig.3:AttachLongsidebeam1（F1）toLongsidebeam2（F2）,byusingbolt（AA）andwasher（BB）.

Fig.4‐1:Attachconner（G）totopofpost1/post2（H1/H2）.
Fig.4‐2:AttachedArcbeam1/Arcbeam2（C/D）totopofpost1/post2（H1/H
2）， thenfixbyusingbolt（AA）
andwasher（BB）.
Fig.4‐3:Attachdecoratetube（N）tolongsidebeam(F1/F2）.

AA H010020011 M6 * 15 Bolt 10PCS
BB H050010023 M6 Flat Washer 52PCS
EE H010110028 M6 * 40 Bolt 42PCS
Fig.4-1
Fig.4-2
Fig.4-3
G
H1/H2
CC
Fig.1
A
Fig.3
Fig.2
Hardware Pack 2
J
I
BB
BB
D
C
BB
AA
AA
BB
F1
F2
AA
BB
H1/H2
BB
AA
C/D
AA
BB
F1/F2
N
CC
Step.2
K
Fig.5
Fig.6
Fig.7
B
E
AA
BB
F1/F2
F1/F2
AA
BB
A
B
A
B
L
