Sunjoy A106005400 - Step 3 Assembly Procedures; Final Assembly and Securing; Canopy Rod and Rail Beam Installation

6 / 8
Country of Origin: China

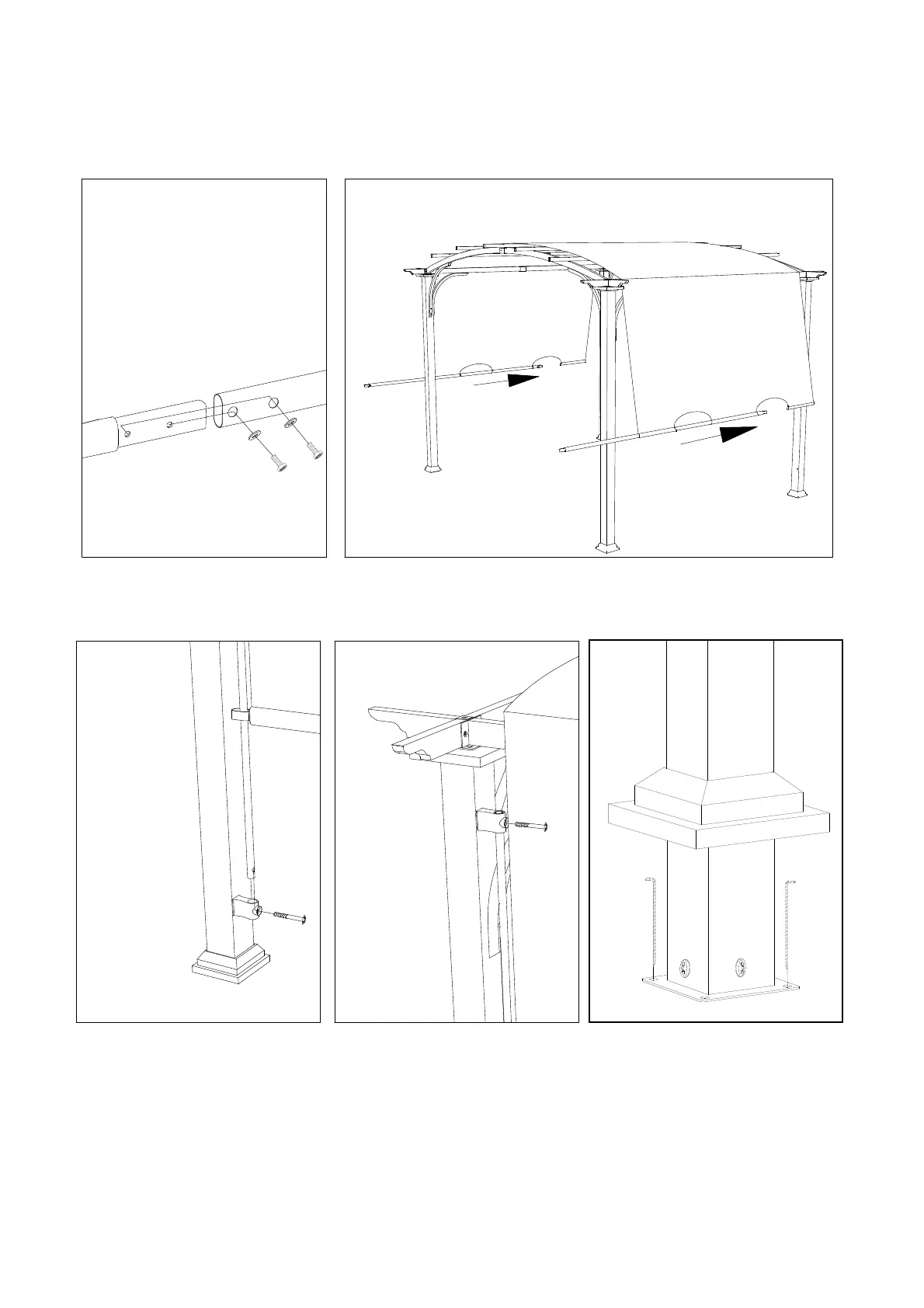

Fig.8:Attachcanopyrod1（O）totcanopyrod2（P）,fixbyusingbolt（GG）andwasher（BB）.
Fig.9:Laythecanopy（R）onthetentandpassthecanopyrod1/canopyrod1（O/P）throughthecanopy（R）
asshowm.
Fig.10‐1:First,insertthecanopyrod1/canopyrod1（O/P）intotherailbeam（Q）,theninserttherailbeam（Q）
intotherailconnector（M）,finallylockrailbeam（Q）、railconnector（M）andpost1/post2（H1/H2）,by
usingbolt（EE）.
Fig.10‐2:lockrailbeam（Q）、railconnector（M）andpost1/post2（H1/H2）byusingbolt（EE）.
Fig.11:Fixtheassembledgazeboongroundbyusingfloorstake(FF).
Fig.8 Fig.9
Fig.10-1
Fig.10-1
Fig.11
BB
O
P
GG
O/P
O/P
R
O/P
R
Q
M
H1/H2
DD
DD
J
H1/H2
Q
R
H1/H2
J
FF
FF
I
