11
Assembly (continued)
8
7

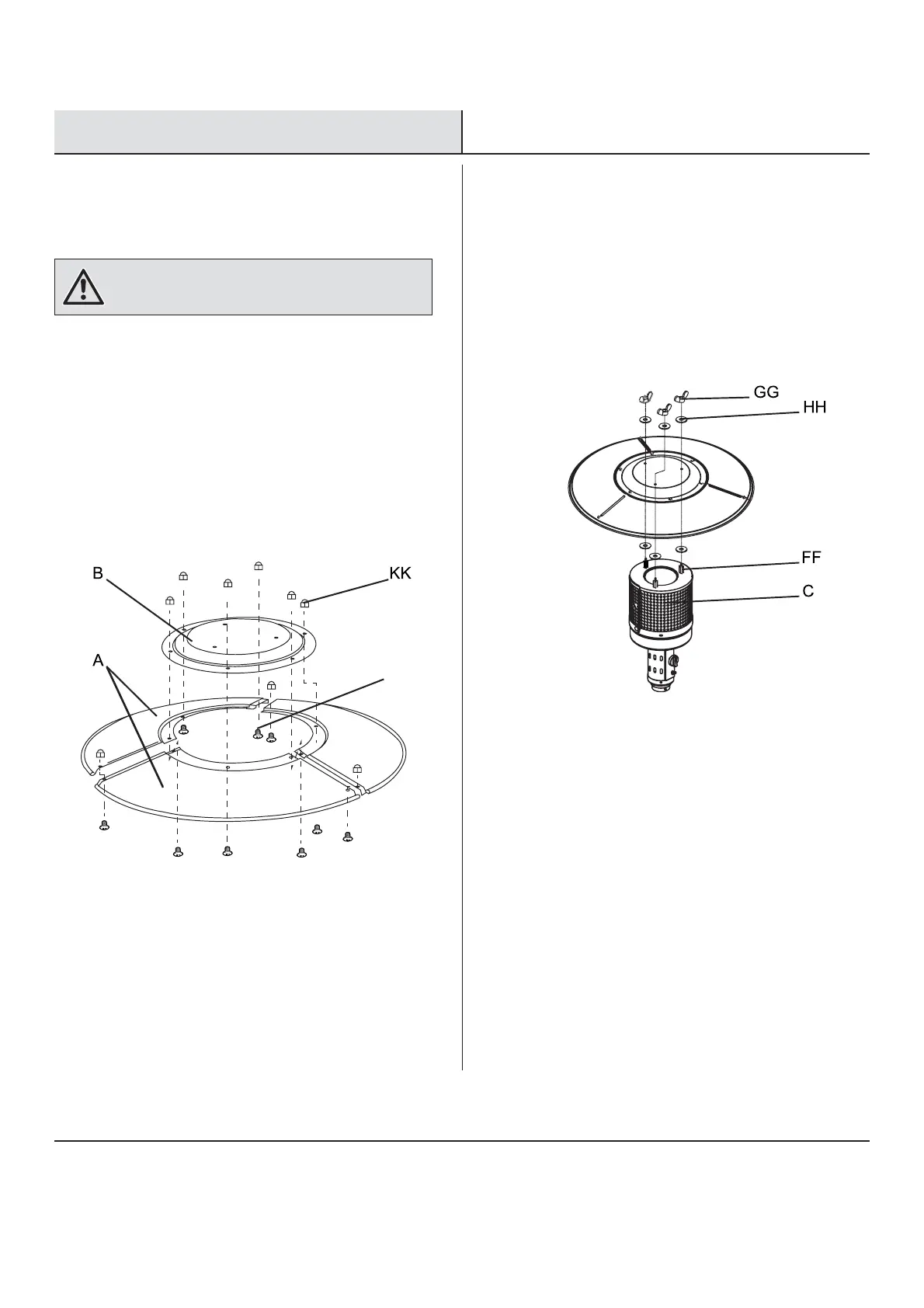

Slide two reflector panels (A) together and assemble the
outer rim using one small screw (LL) and one cap nut (KK).
Repeat this step with the third reflector panel (A). Once
completed place the center reflector (B) in the middle and
fasten using three small screws (LL) and three cap nuts (KK).
Tighten all screws tightly.
Attach the reflector assembly made in step 7 to the top of
the reflector studs (FF) on the head assembly (C). Fasten
with six flat washers (HH) and three wing nuts (GG).
WARNING: Remove plastic protective coating on
the reflector panel (A) and center the reflector (B)
before assembling!
Install reflector
Attach the reflector to the head assembly
LL
To Next Page
