Fig.1: Put the Base cover (C) on the bottom of Pole (A), then use Bolt (AA) and Flat washer (BB) to connect
the Base (B) and Pole (A). Note: Make sure the slots on (C) and (A) are at the same side.
Fig.2: Connect the Beam F (D) and Beam G (E) by using the bolt (CC) and Flat washer (BB).
Fig.3: Attach the connected Beam to stand Pole (A) by using Bolt (CC) and Flat washer (BB) then use Bolt
(AA) and Flat washer (BB) to fix the beam and stand pole tightly.

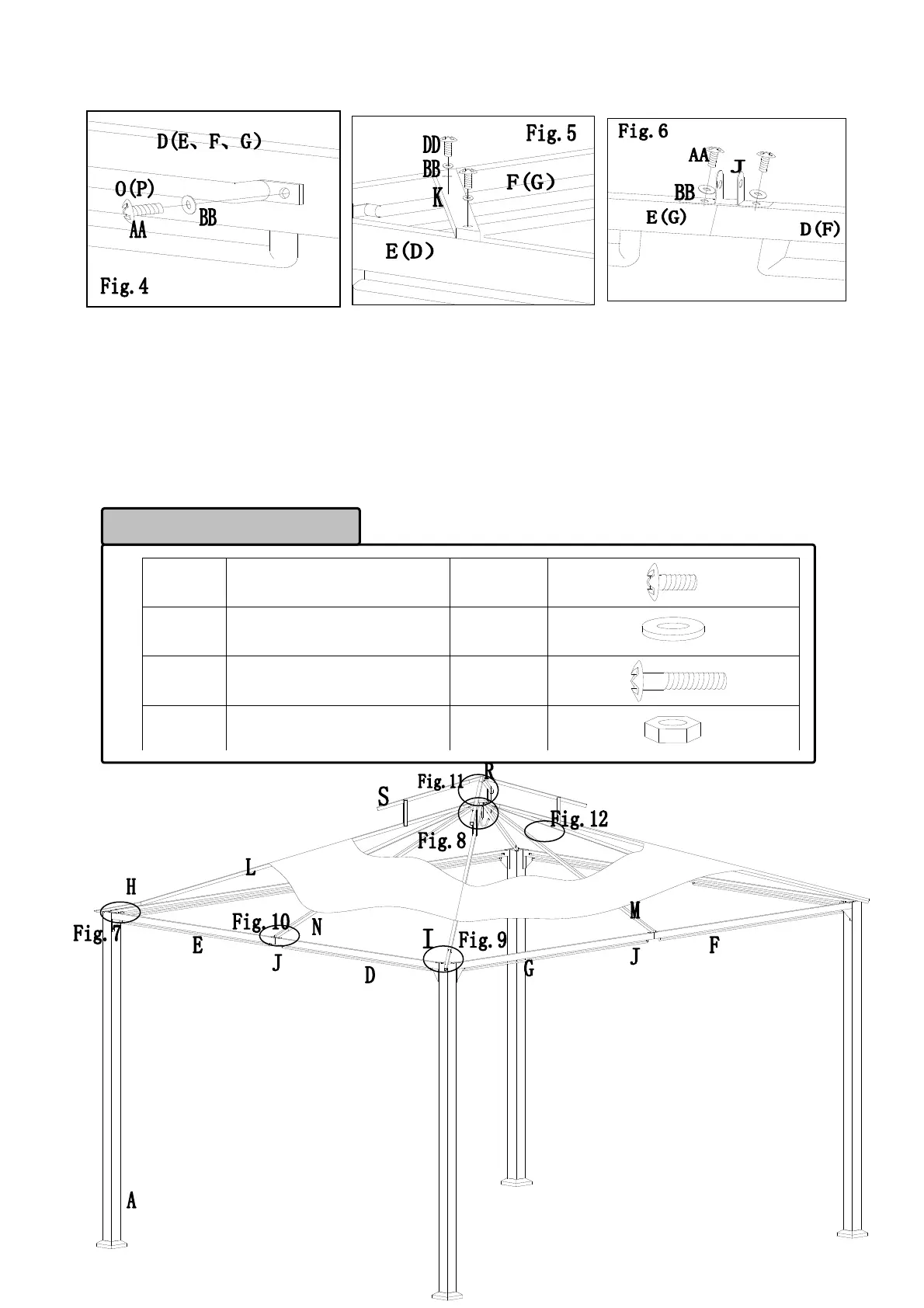

Fig.4: Attach Mosquito pipe O (N) to Beam by Bolt (AA) and Flat washer (BB).
Fig.5: Attach Connector (K) to Short beam E (D) and Long beam F (G) by DD and BB.
Fig.6: Attach Side beam connector (J) to Beam by Bolt (AA) and Flat washer (BB).
AA M6X15 Bolt 8 PCS
BB M6 Flat washer 24 PCS
EE M6X40 Bolt 8 PCS
FF M6 Nut 8 PCS
Hardware Pack 2
