Sunmax RT50D - Power-On Screen; Interface Description; Brush Disk Motor Status

1. Power-On Screen

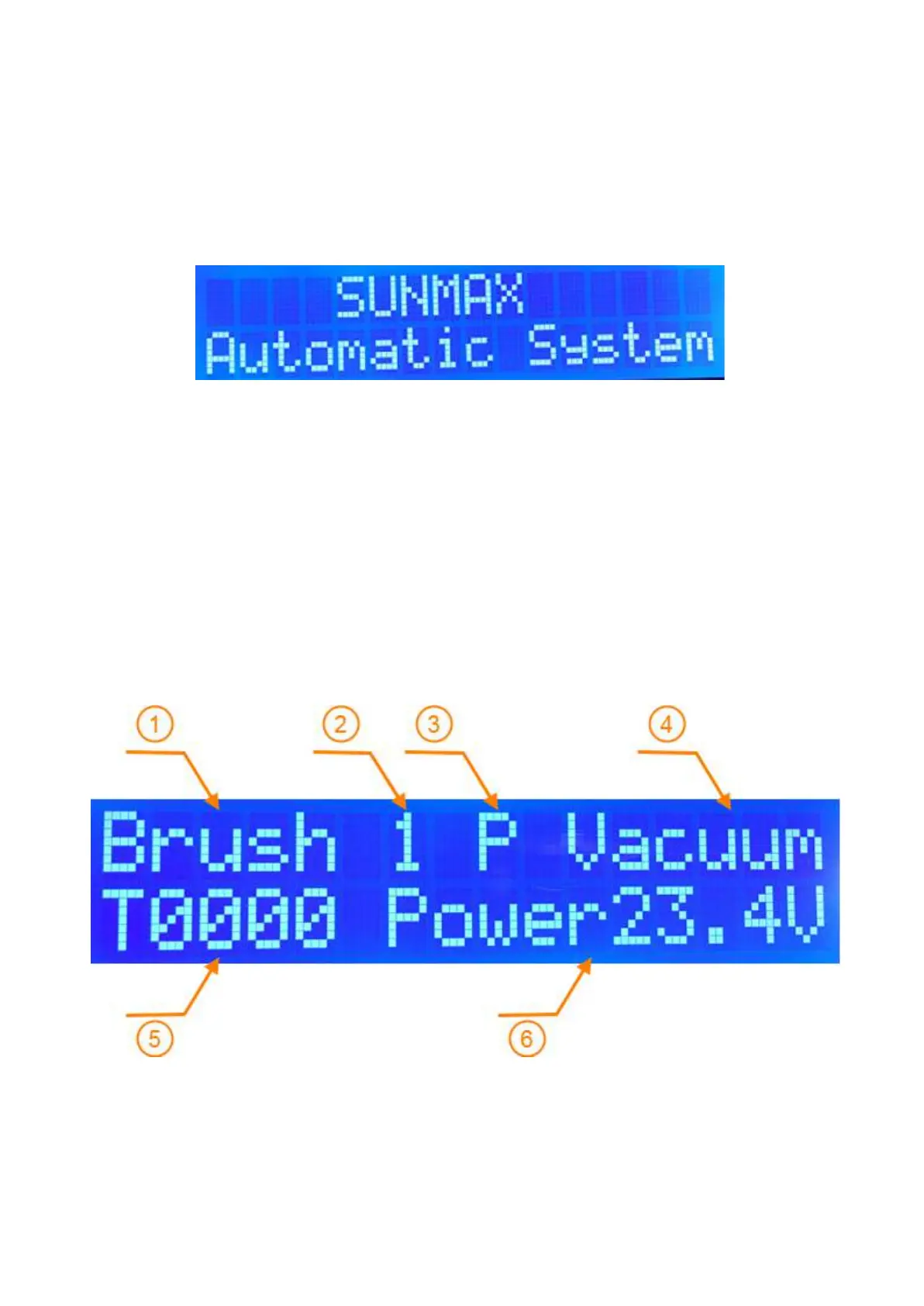

Figure 1-1
Upon powering on the floor scrubber, the screen displays "SUNMAX" on the first
line and "Automatic System" on the second line.
2. Interface Description
The interface when the machine works normally is shown in Figure 2-1.
Figure 2-1
① Brush Disk Motor Status: Displays "Brush" when the brush disk motor is active
and shows nothing when it's inactive; controlled by the brush disk button on the
panel.
