SUNN 1200s SETUP PROCEDURES
To ensure optimum performance
from your Sunn 1200s Bass Amplifier,
please follow these setup guidelines
and procedures.
4
tuner
out
power amp
pass through
footswitch
send
return
effects
loop
line out
R
PARALLEL SPKR JACKS
1200W
2 Ω minTOTAL
1. Connect your Sunn 410H / Sunn 215 Bass
Loudspeaker Enclosure or equivalent to the parallel
speaker jacks located on the rear of the 1200s
amplifier. Note: For improved performance, DO NOT
daisy chain multiple enclosures off the same jack. As
a rule of thumb, connect only one speaker enclosure
per output jack and remember the total minimum
impedance load for the 1200s is 2Ω. Remember to
connect or disconnect any speaker enclosure to your
1200s with the power off.
2. Next, attach the 3-button footswitch and your
tuner to the TUNER OUT and FOOTSWITCH jacks
located on the rear of the amplifier.
3. Connect any effects processing devices through
the EFFECTS LOOP SEND and RETURN jacks on
the rear of the unit.
4. If sending your 1200s’ signal to an external power
amplifier or main house mixer, connect a cord from
either the 1/4 inch or XLR LINE OUT jack to your
external power amplifier or mixer.
5. Make sure the HIGH and LOW tone controls are
in their center notched positions, the Graphic EQ is
“flat”, the compressors are OFF and the LOW, HIGH
and MID NOTCH buttons are out.

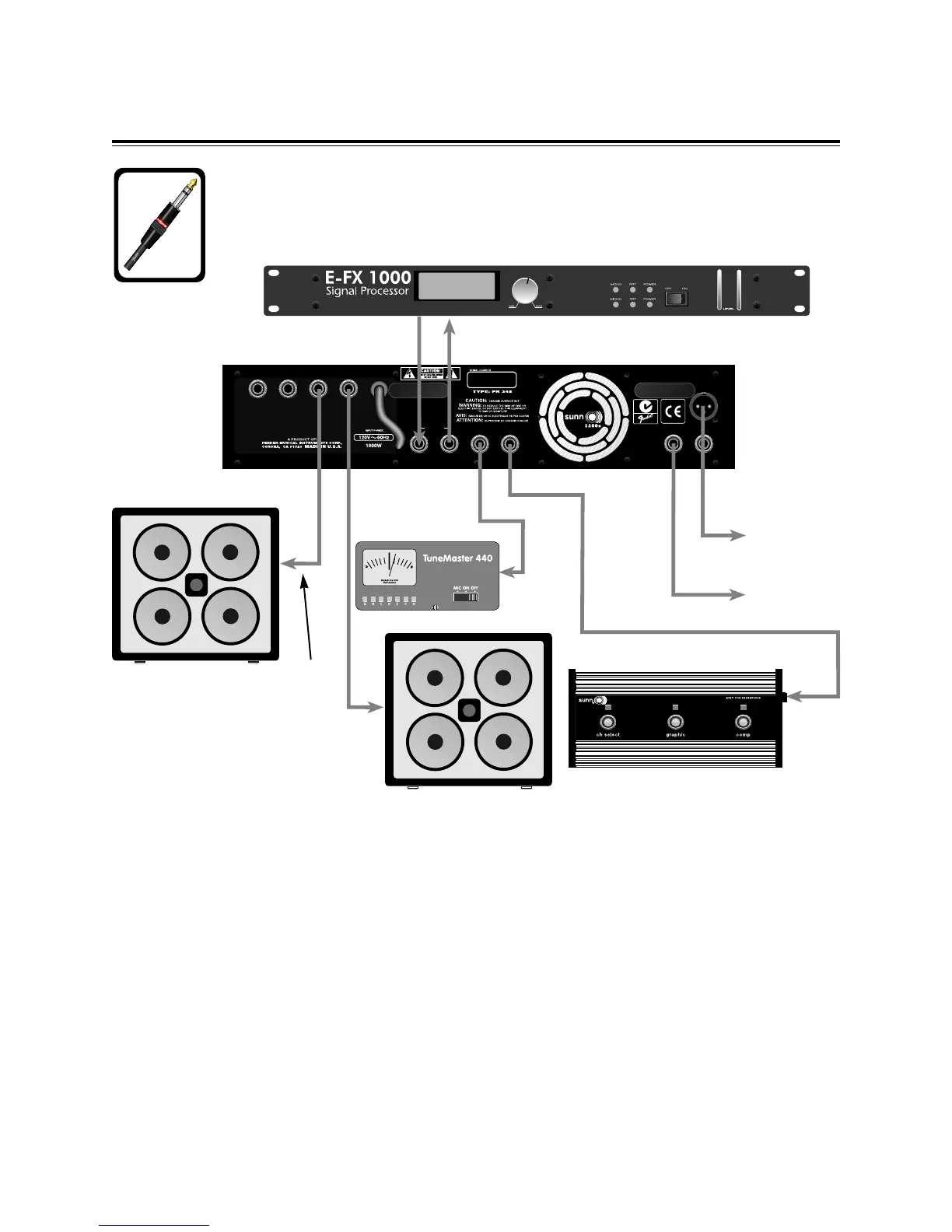

From Effects Loop Send
to Effects Processor In
From Effects Processor to
Effects Loop Return
From Power Amp Pass
Through to Effects Loop
Return on another amp
From Line Out to External
Power Amp or Mixer
From Footswitch Out Jack to Footswitch
From Tuner Out to
Tuning Device
From Speaker
Jacks to
Speaker Cabinets
