16
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

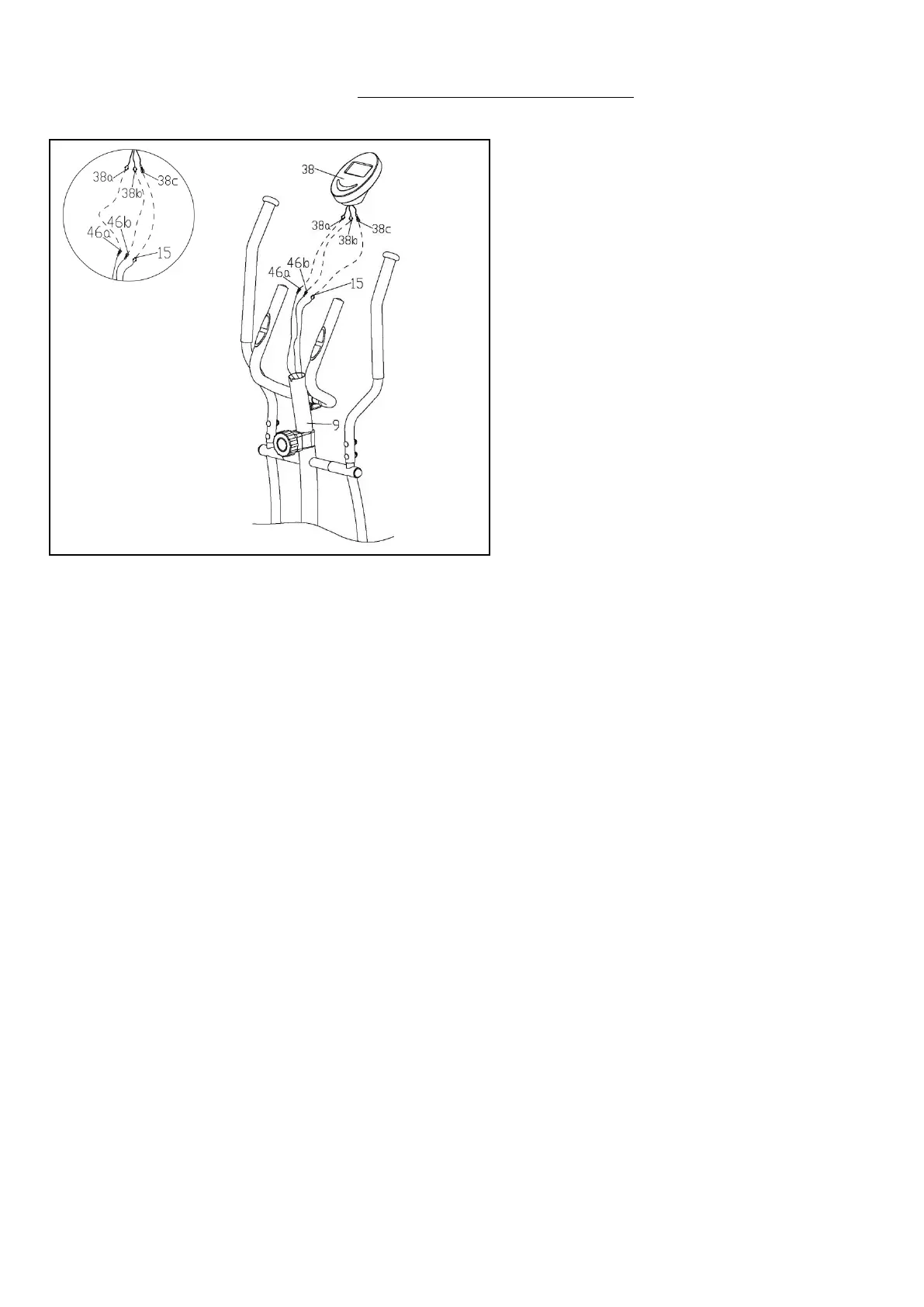

STEP 6:
Connect the Pulse Sensor Wire A (No. 46a)
with Meter Wire A (No. 38a), connect the
Pulse Sensor Wire B (No. 46b) with Meter
Wire B (No. 38b), and connect Upper
Sensor Wire (No. 15) with Meter Wire C
(No. 38c). Align the slot of the Handlebar
Post (No. 9) to the bulge inside the Meter
(No. 38) then slide it onto the Handlebar
Post (No. 9) slowly.
NOTE: To avoid damaging the wires, please
push them into the Handlebar Post (No. 9)
before sliding the Meter (No. 38) onto it.
THE ASSEMBLY IS COMPLETE!
