7
3. c) Installation: two systems on ground.
Add-on kit (part # SQ-ADDON) is required.

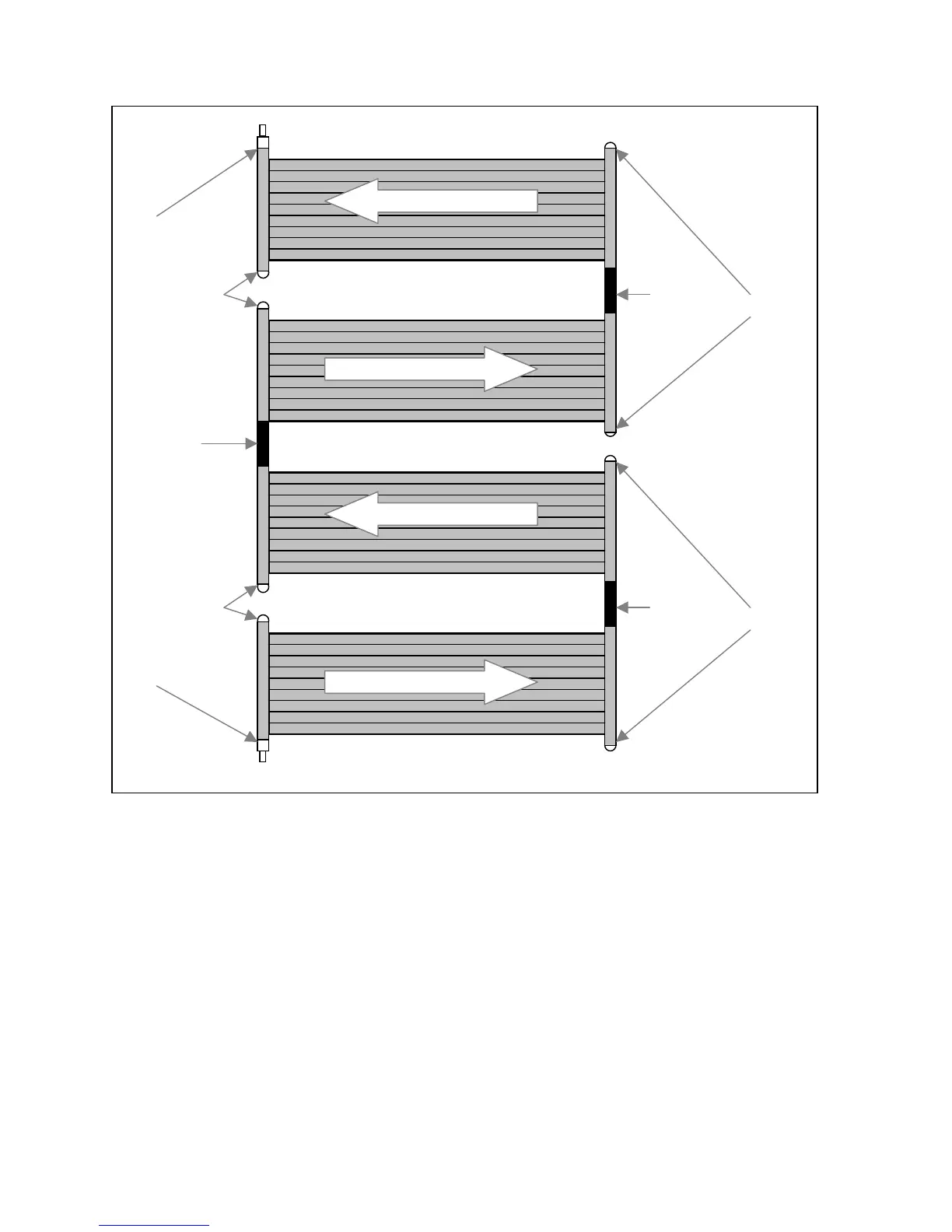

Diagram Step 3c
• Apply Teflon tape to threads of all the caps (SK-FTG-F ) See Fig 3a-1
• Thread all the caps into the panels as per Diagram Step 3c. Do not over tighten. See Fig 3a-2
• Put "O" rings (SK-FTG-I) on two combination adapters (SK-FTG-D) See Fig 3a-3. You will only need
2 combination adapters for this type of installation.
• Thread both combination adapters into the panels as per diagram Step 3c. Do not over tighten. See Fig 3a-4
• Push the rubber hose (SK-FTG-J) over the panel header as per diagram Step 3c. Slide a metal collar
(SK-FTG-L) onto the rubber hose. Place metal collar
1
/
4
" from edge and tighten collar with screwdriver.
See Fig 3a-5. Repeat for 2
nd
system.
• Slide another metal collar onto the rubber hose. Connect the 2 panels together by pushing the rubber hose
over the second panel header. Tighten metal collar to secure assembly. See Fig 3a-6. Repeat for 2
nd
system.
• Install Add-on kit (SQ-ADDON) between two sets of panels (sold separately)
Note: A maximum of 6 2ft panels ( 3 systems ) may be plumbed in series
Combination Adapter
Cap
Cap
Rubber hose
7.5"
Combination Adapter
Cap
Cap
Rubber hose
7.5"
Rubber hose
7.5"
(Add-on kit)
Inlet
Outlet
