8
3 d) Installation: two systems on rack or roof. (Horizontal only)
2 Mounting kit (part # SQ-RMK5) are required.
1 System kit (part # SQ-SK) is required.

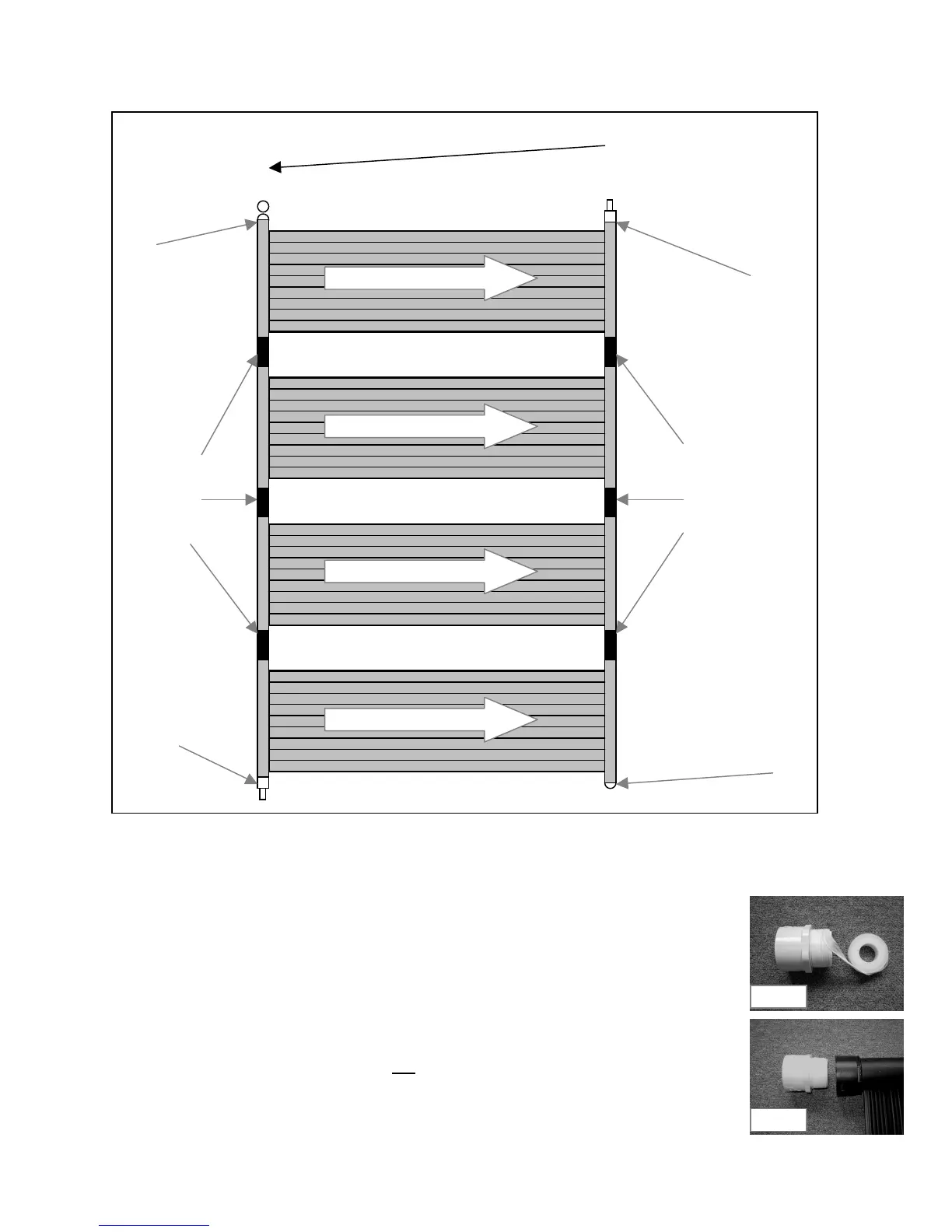

Diagram Step 3d
• Using a utility knife cut rubber hose (SK-FTG-J) from each system in half. Make
sure you cut them as straight as possible. See Fig 3b-1. You should now have
rubbers that are 3 ¾" long.
• Apply Teflon on one of the caps (SK-FTG-F). See Fig 3a-1.You only need 1 cap
for this type of installation.
• Thread the cap into the panels as per Diagram Step 3d. Do not over tighten.
See Fig 3a-2
• If you are using flexible piping to connect panels to your pump then Put "O" rings
(SK-FTG-I) on both combination adapters (SK-FTG-D) See Fig 3a-3. Thread both
combination adapters into the panels as per Diagram Step 3d. Do not over tighten.
See Fig 3a-4
OR
If you are using rigid piping to connect panels to your pump then apply Teflon on
both PVC adapters (SK-FTG-N). See Fig 3d-1. Thread both adapters into the
panels as per Diagram Step 3d. Do not over tighten. See Fig 3d-2.
3.75"
Outlet
3.75"
Inlet
Fig 3d-1
A Minimum of 1 inch fall per 10 feet
Fig 3d-2
To Next Page
