139

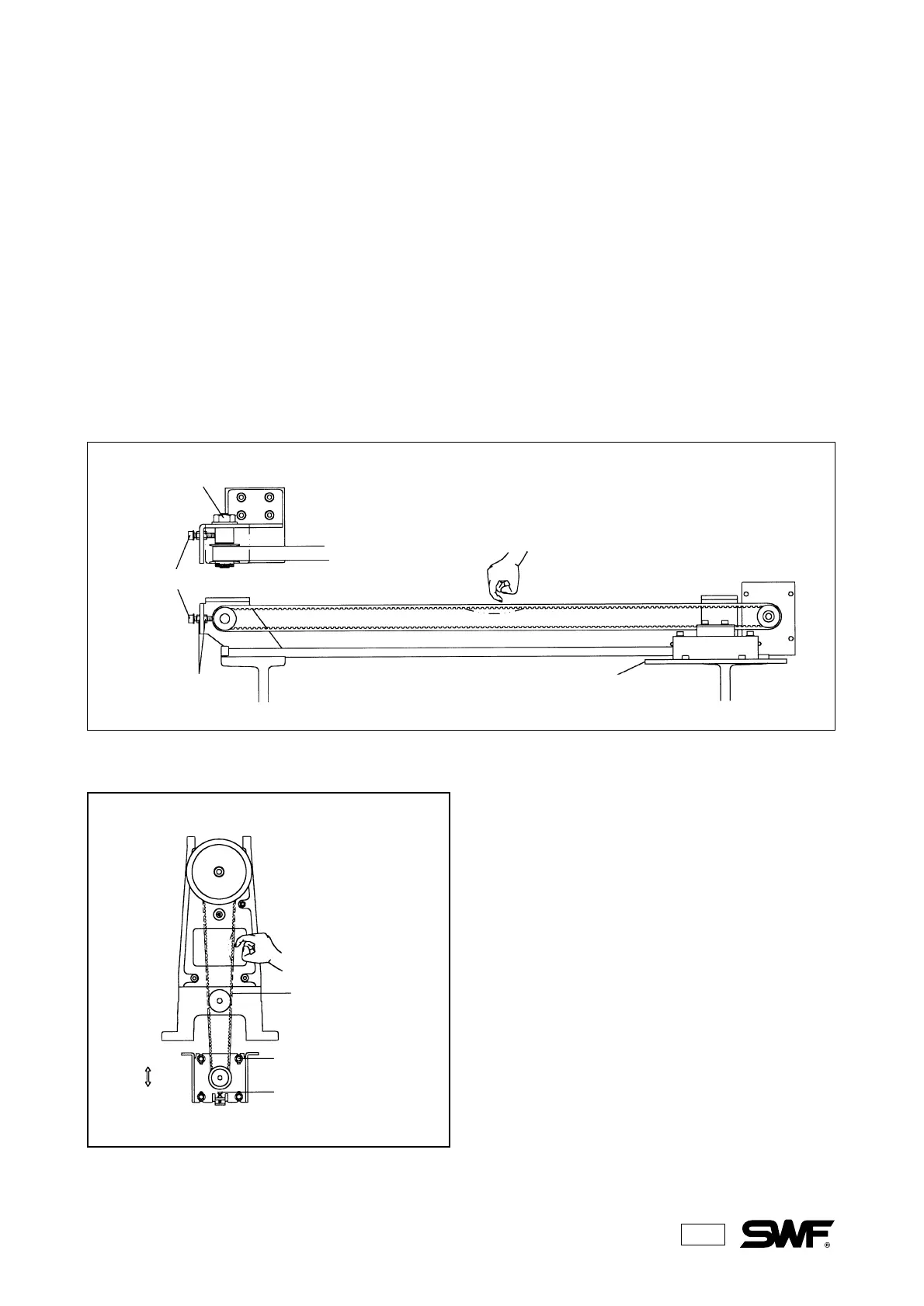

TIMING BELT OF X-AXIS
Move the frame fixing plate on the right side to the end, then use the phonometry belt tension tester. Pluck
the center of the X drive belt with a finger or tool and then adjust the X-axis belt to 10~11kgf. The input data
should be :
Weight : 003.8gf/m
Width : 015.0mm/#R
Span : 0577mm
Release the tension base fixing bolts and turn the tension adjusting bolt to achieve the proper tension.
Turning the bolt clockwise increases the belt tension. Turning it countercolckwise decreases the tension.
TIMING BELT OF MAIN MOTOR
Pluck the center of the belt span with a finger or tool
and then adjust the timing belt tension of the main
motor to 11~13kgf using the phonometry tension
tester. The input data should be :
Weight : 003.8gf/m
Width : 015.0mm/#R
Span : 0231mm
Release the 4 fixing bolts when adjusting the timing
belt. If you raise the main motor, the tension
decreases. If you lower it, the tension increases.
X-Frame Fixing Plate
Tension Adjusting Nut
Tension Adjusting Bolt
Adjusting Nut
Main Drive Belt
Fixing Belt of Main Motor
Tension Adjusting Bolt
Decrease
Increase
To Next Page
