SUNSTONE ruby series - Ruby 36” 4 Burner IR Parts List and Diagram

Page 6

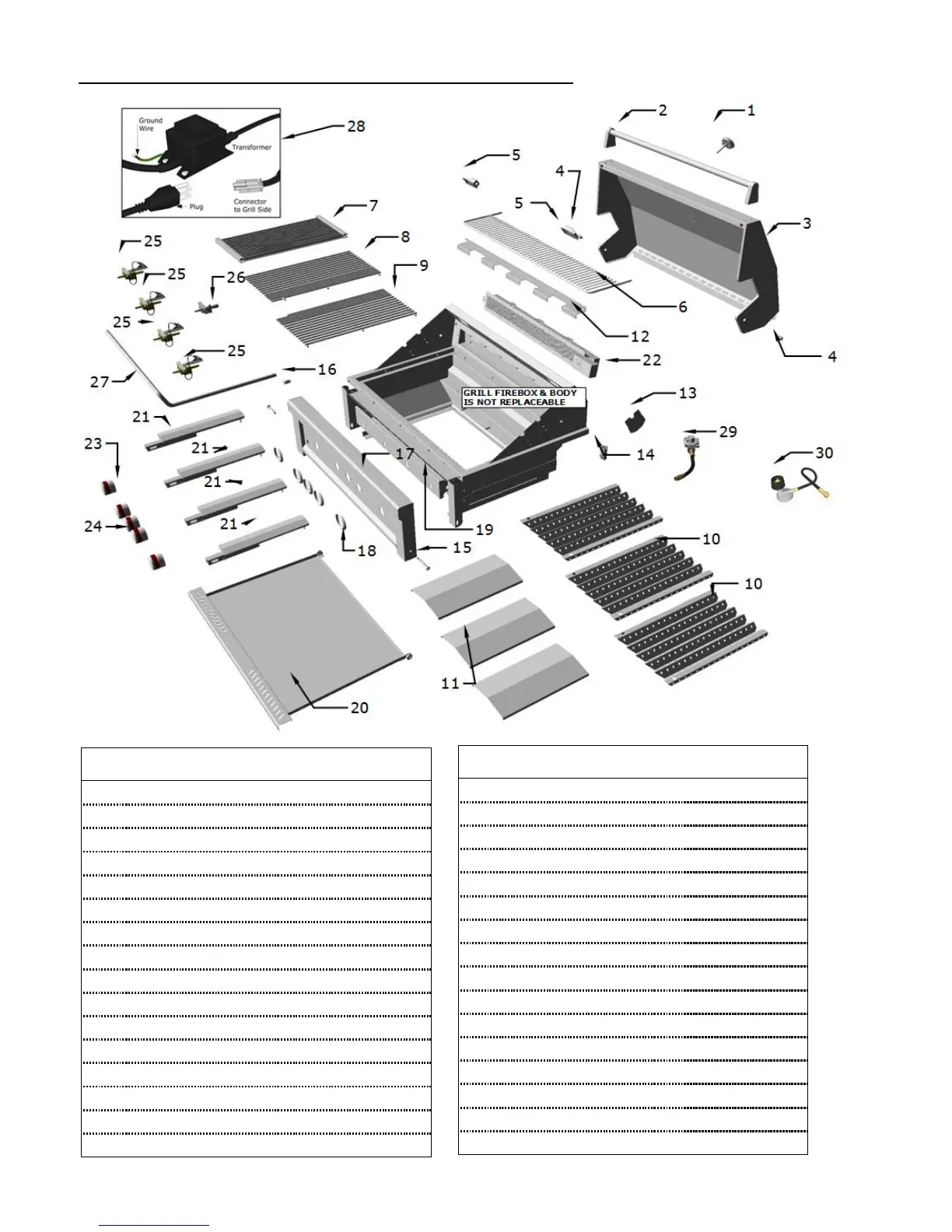

SPECIFICATIONS – Parts Diagram/Ruby4BIR 36”
RUBY4BIR-LP / RUBY4BIR-NG Parts
List
No.
Description
Q
ty
.
Part No.
1
Thermostat
1
R-TMETER
2
Hood Handle
1
Hood-R4B-H
3
Hood
Thermometer
1
Hood-R4B
4
Hood Bolt
2
R-HAB
5
Light Assembly
2
R-LIGHT
6
Warming Rack
1
R-WR-4B
7
Pro Searing Grate
1
R-GSEAR4B
8
Left Grate
1
R-GR4BL
9
Right Grate
1
R-GR4BR
10
Warming grid
3
R-FL-4B
11
Heat Shield
3
R-HS-4B
12
Gas Transfer
1
R-GSC-4B
13
Rot. Mount
1
R-RMOUNT
14
Manifold Clip
1
R-MFCLIP
15
Panel Bolt
2
R-PANBOLT
RUBY4BIR-LP / RUBY4BIR-NG Parts
List
No.
Description
Q
t
y
.
Part No.
16
Light Switch
1
R-LIGHT-SW
17
Control Panel
1
R-PANEL-4B
18
Knob Ring
5
P-KNOB-R
19
LED Light
1
R-LED-4B
20
Drip Pan
1
R-DTRAY-4B
21
“I” Burner
4
P-GBURN
22
Infra-Red Burner
1
R-IRBURN-4BIR
23
Large Knob
4
P-KNOB-L
24
Small Knob
1
P-KNOB-S
25
Ignition Valve
4
R-VALVE LP/NG
26
IR-Ignition Valve
1
R-IRVALVE
27
Manifold Pipe
1
R-GMP-4BIR
28
Transformer Plug
1
P-LPB
29
Regulator - NG
1
NGH18
30
Regulator - LP
1
LP-REG
