SUNSTONE ruby series - Parts Identification; Ruby 30” Parts List and Diagram

Page 2

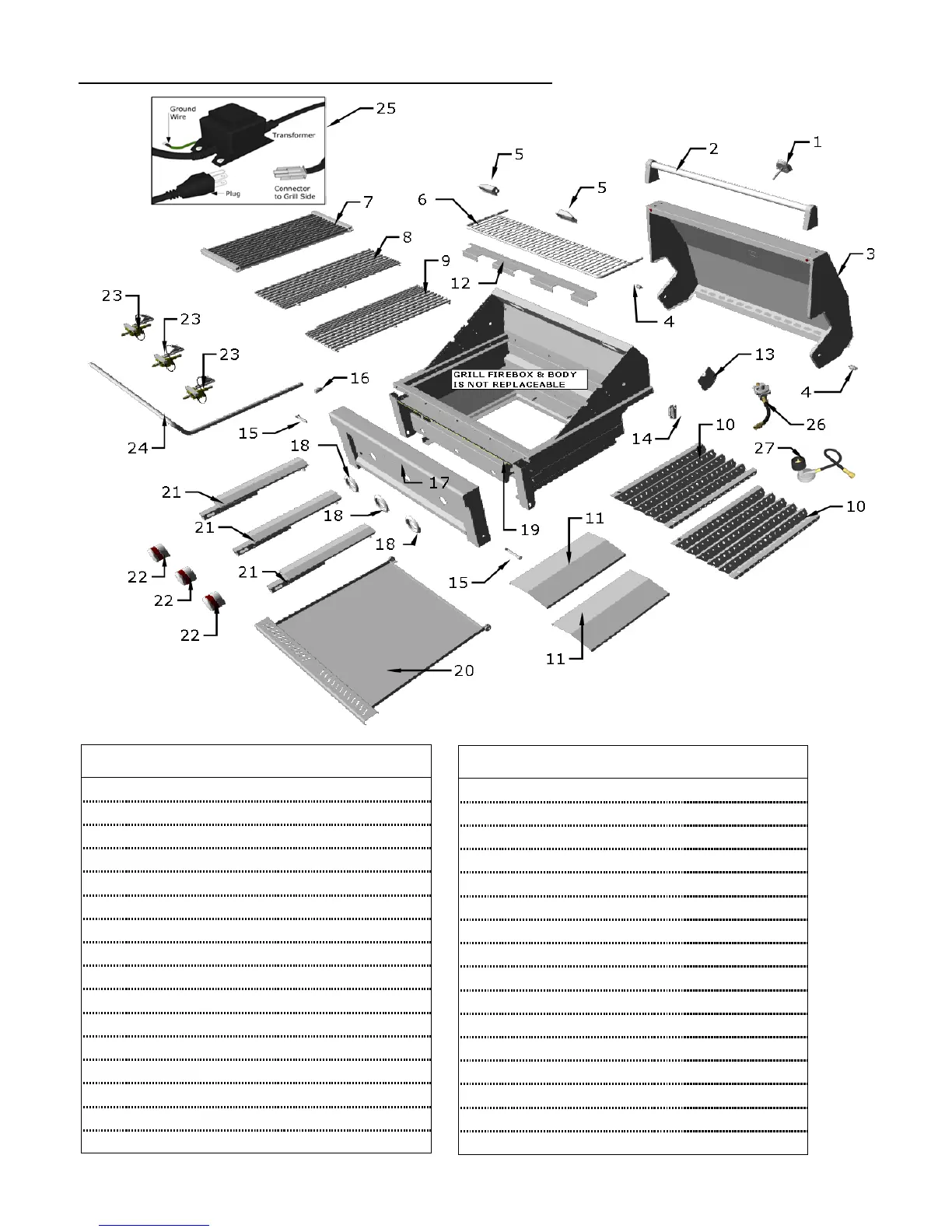

SPECIFICATIONS – Parts Diagram/Ruby3B 30”
RUBY3B-LP / RUBY3B-NG Parts List
No.
Description
Q
ty
.
Part No.
1
Thermostat
1
R-TMETER
2
Hood Handle
1
Hood-R3B-H
3
Hood
Thermometer
1
Hood-R3B
4
Hood Bolt
2
R-HAB
5
Light Assembly
2
R-LIGHT
6
Warming Rack
1
R-WR-3B
7
Pro Searing Grate
1
R-GSEAR3B
8
Grate
1
R-GR3B
9
Grate
1
R-GR3B
10
Warming grid
2
R-FL-3B
11
Heat Shield
2
R-HS-3B
12
Gas Transfer
1
R-GSC-3B
13
Rot. Mount
1
R-RMOUNT
14
Manifold Clip
1
R-MFCLIP
RUBY3B-LP / RUBY3B-NG Parts List
No.
Description
Q
t
y
.
Part No.
15
Panel Bolt
2
R-PANBOLT
16
Light Switch
1
R-LIGHT-SW
17
Control Panel
1
R-PANEL-3B
18
Knob Ring
3
P-KNOB-R
19
LED Light
1
R-LED-3B
20
Drip Pan
1
R-DTRAY-3B
21
“I” Burner
3
P-GBURNER
22
Knob
3
P-KNOB-L
23
Valve – LP/NG
3
R-VALVE
24
Manifold Pipe
1
R-GMP-3B
25
Transformer Plug
1
P-LPB
26
Regulator - NG
1
NGH18
27
Regulator - LP
1
LP-REG
