5

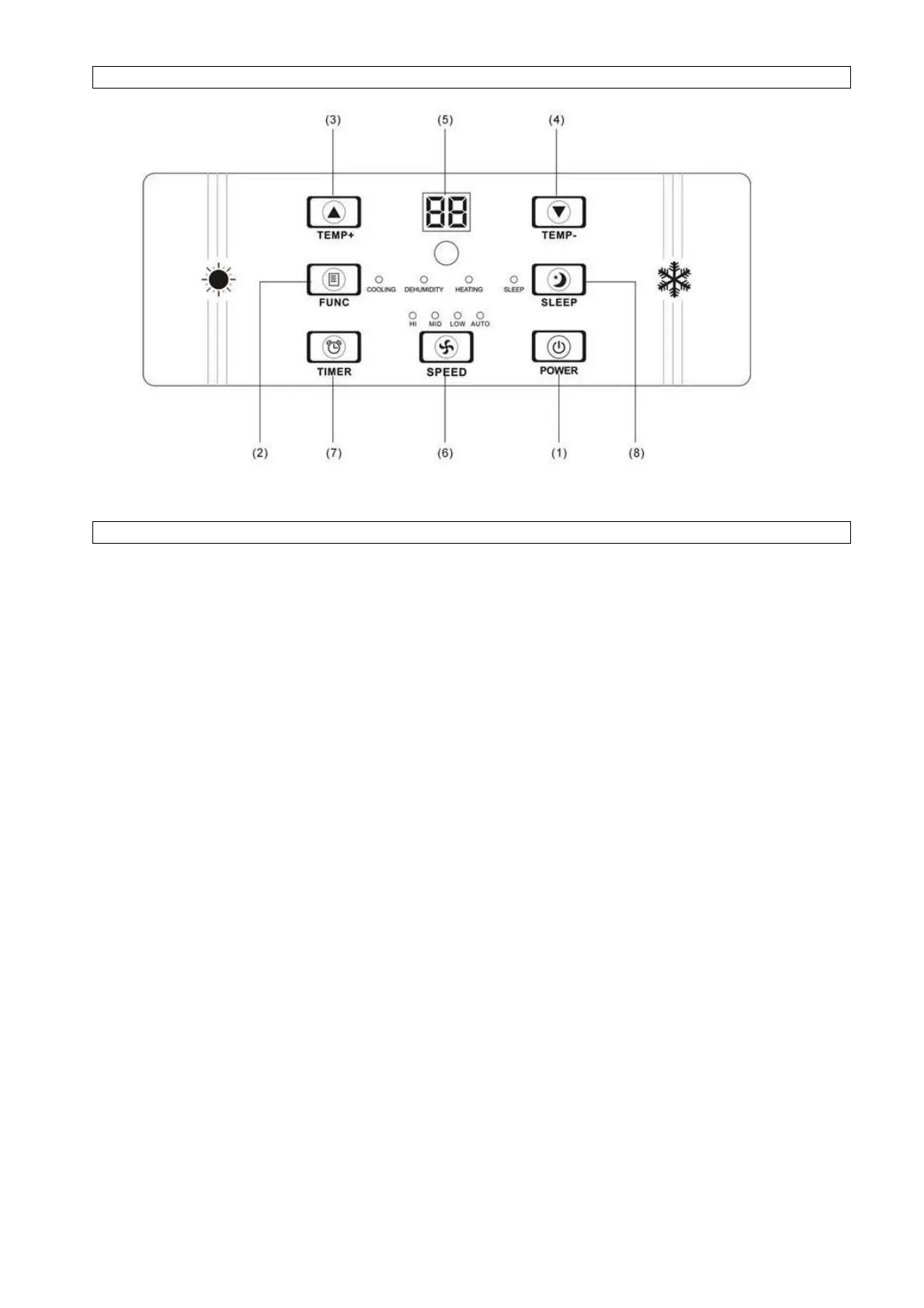

OPERATING PANEL
DESCRIPTION OF FUNCTIONS
1. [POWER]
Press this switch to switch on or off
2. [FUNC]
Press this switch to select between the functions “Cooling”, „Heating“ or „Dehumidity“
3. [TEMP+]
Press this switch in the cooling function in order to set the required room temperature by 1°C
respectively up to a maximum temperature of 30°C.
Press this switch in the heating function in order to set the required room temperature by 1°C
respectively up to a maximum temperature of 25°C
4. [TEMP-]
Press this switch in the cooling function in order to set the required room temperature by 1°C
respectively up to a minimum temperature of 17°C.
Press this switch in the heating function in order to set the required room temperature by 1°C
respectively up to a minimum temperature of 15°C
5. LED-DISPLAY
The display shows the required target temperature in operation.
By pressing the [TEMP+] or [TEMP-] switch, the current ambient temperature is briefly displayed.
When pressing the [TIMER] switch, the number of hours is briefly shown until activation or
deactivation. In the dehumification function, „dH“(or „HP“ upside-down) is shown in the display. Error
messages are also shown in the display.
6. [SPEED]
Press this switch to set the ventilation speed to„LOW“, „MID“ (middle), „HI“ (high) or „AUTO“
(automatic). If „AUTO" is selected, the ventilator operates at temperature differences larger than 9
degrees at top speed. If the temperature reduces to a difference smaller than 4 degrees, the ventilator
switches to middle blower position. If the temperature reduces further until the target temperature, the
ventilator switches to the lowest blower position.
