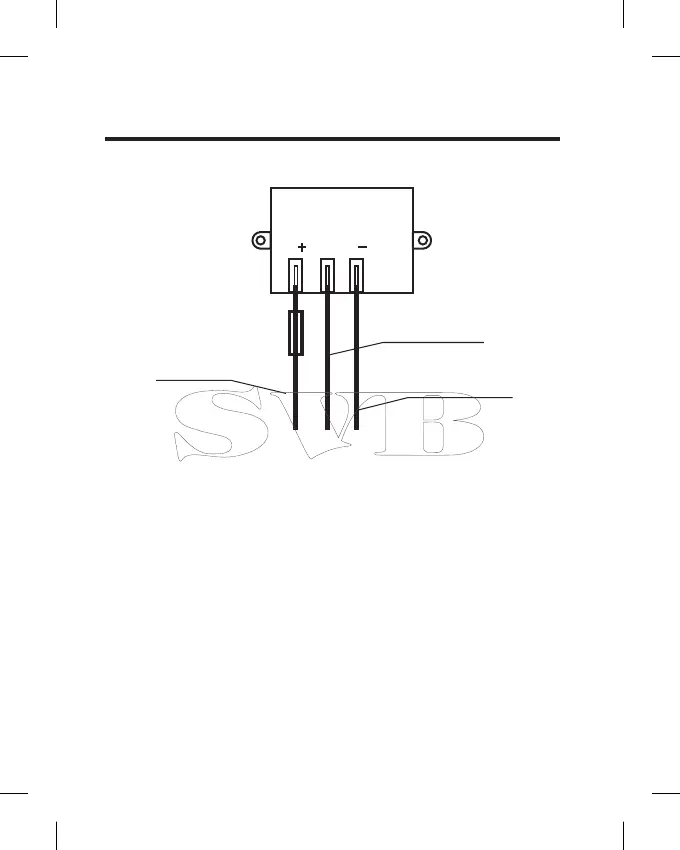

2.2 Allocation cable colour/terminals
IN
FOX-D1
red
blue
black
Fuse: 0.5 A, microfuse
5 x 20 mm, quick acting
The mechanical installation requires a cut-out of
56 mm x 84 mm.
Minimum installation depth: 50 mm
Note for the FOX-D1/E:
