15

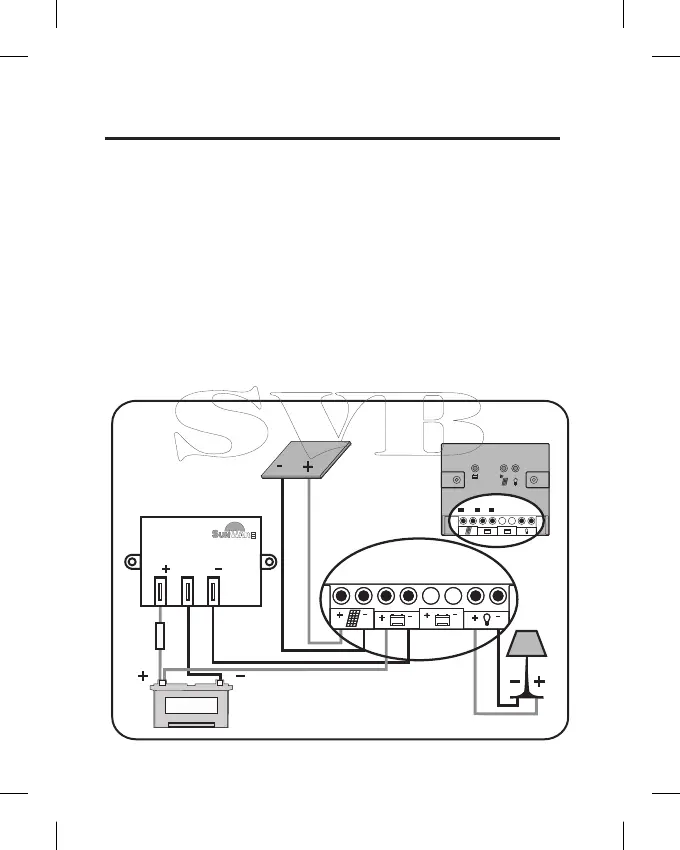

2.4 Cabling example with FOX-220
Suitable for 12V/24V systems in combination with a
charge controller incl. integrated total discharge
protection.
With the switch in the position "Current" the charge
current is displayed without algebraic sign and the
discharge current with the "-" sign. If the battery is
charged by the module and current is used, the
difference will be displayed.
Display of battery voltage and
charge/ discharge current display
INB B
FOX-D1
Fuse
battery 1
Charge controller
FOX-220
Solar modules
consumer
B1 B2
B1 B2
+
-
-
+
-
+
-
+
Yellow RedGreen
1
100%
70%
30%
B1 B2
FOX-220
FOX-220
