Electrical connection and cable entry
For installation, please observe the
instructions in the «Setup» leaflet!
!
If the solar inverter is fixed to the installa-
tion frame, the electrical connection can
be led through. The unit may only be ope-
ned by a qualified electrician. The cabinet
cover must first be released and removed.
The SUB-D connector for the RS 232 con-
nection is located on the bottom, as well
as inlets for cables:
DC– DC– DC+ DC+
AC wiring loom
L1, N, L2, L3, PE

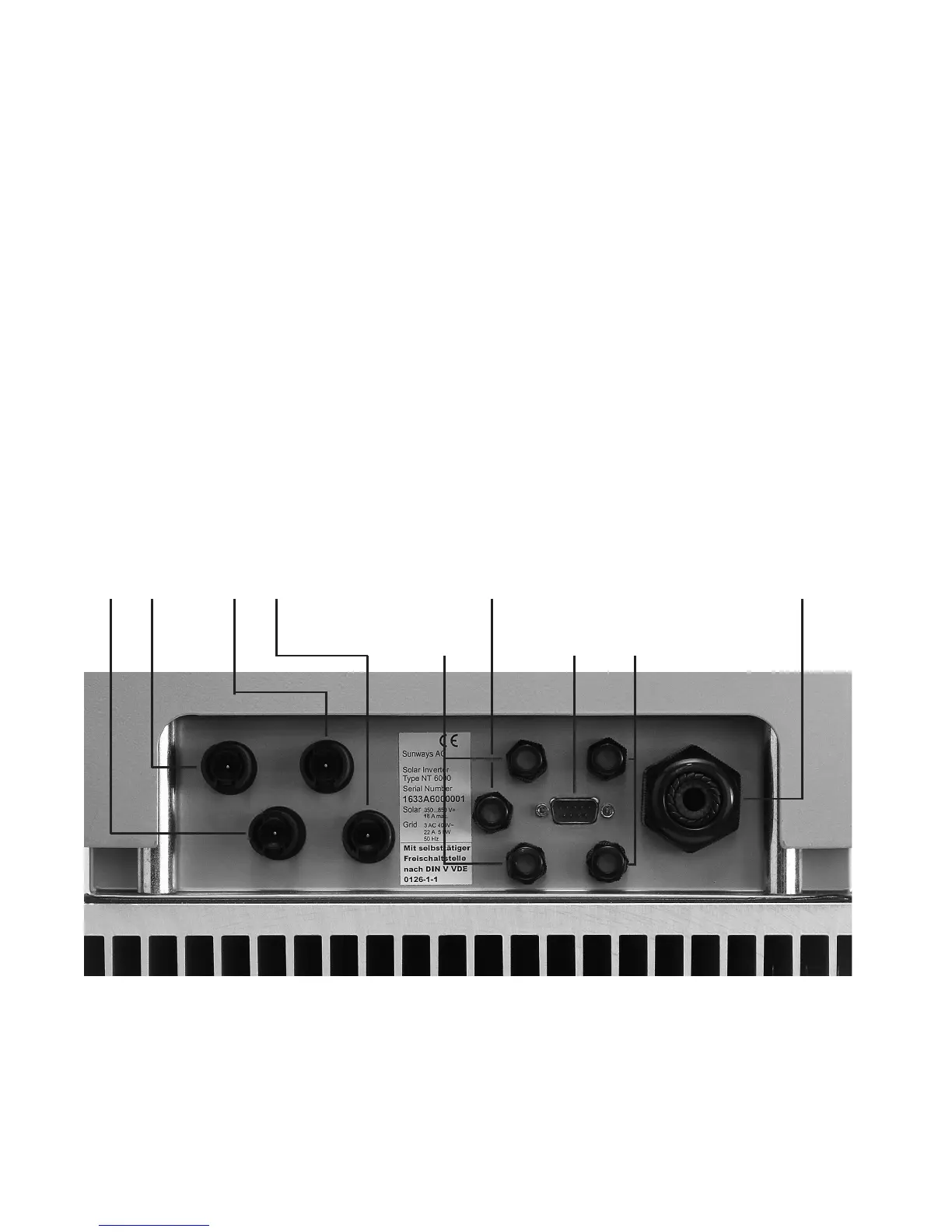

(Fig.) Inlets on the unit underside
Alarm relay
Irradiation sensor with
integrated temperature
sensor cable
RS 232
RS 485
106
