· Connection
The PV generator is connected via the
externally accessible, shock-proof Tyco
Solarlok connectors, which are enclosed
with the delivery. The Tyco Solarlok con-
nectors are designed for a cable cross-
section of 4 mm
2
and must be crimped
(see chapter 4.2 «Tyco Solarlok connec-
tion»).
Connect the two right DC female connec-
tors with «+», the two left DC female
connectors with «–» of the PV generator.
Always ensure the correct polarity!

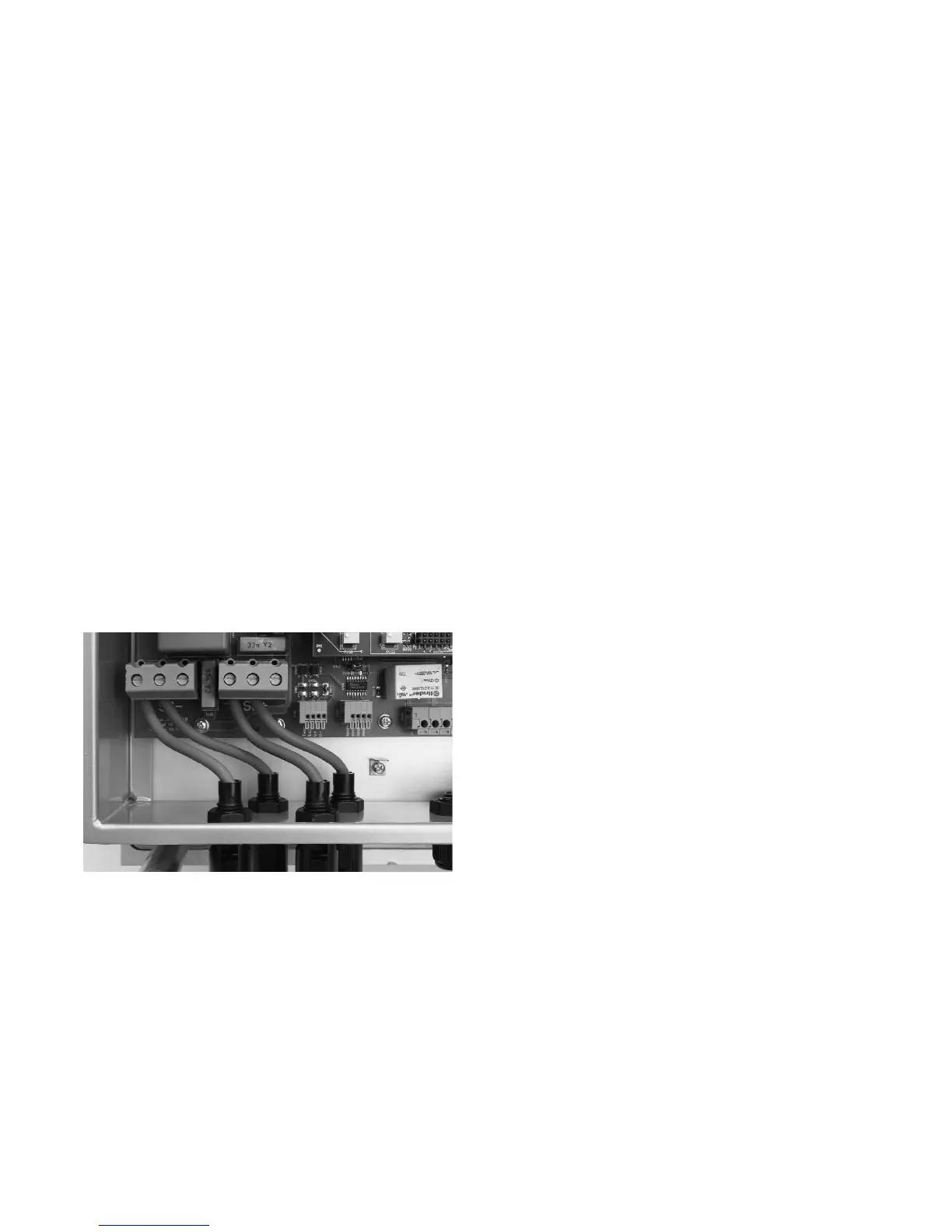

(Fig.) PV generator connection via Tyco
Solarlok connector
110
