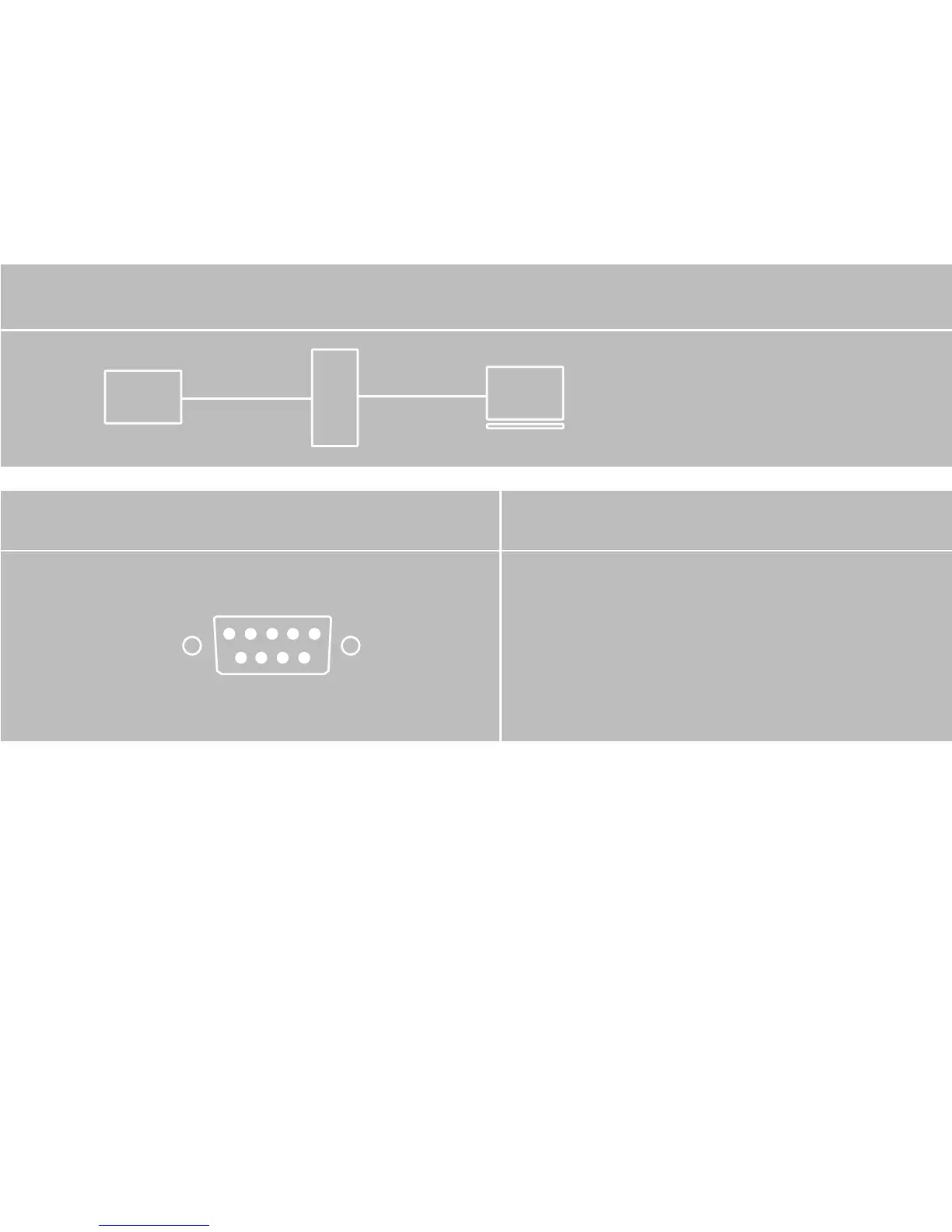

(1) Individual PV system with maximum distance of 25 m between solar inverter an PC
Connection to the PC via RS 232
An individual solar inverter can be connected
directly to the PC via the external RS 232
interface on the bottom of the device.
Jumper JP400: open
Connection and circuitry options
(1) An individual solar inverter can be
read out using this connection, unless the
distance from the PC exceeds a distance
of 25 m. For this purpose, cable type 1 is
connected with the solar inverter via the
SUB-D connector and connected to a PC.
Jumper JP400 must be in open position.
PC
INVERTER
(1)
PV
RS 232
SUB-D connector
129
