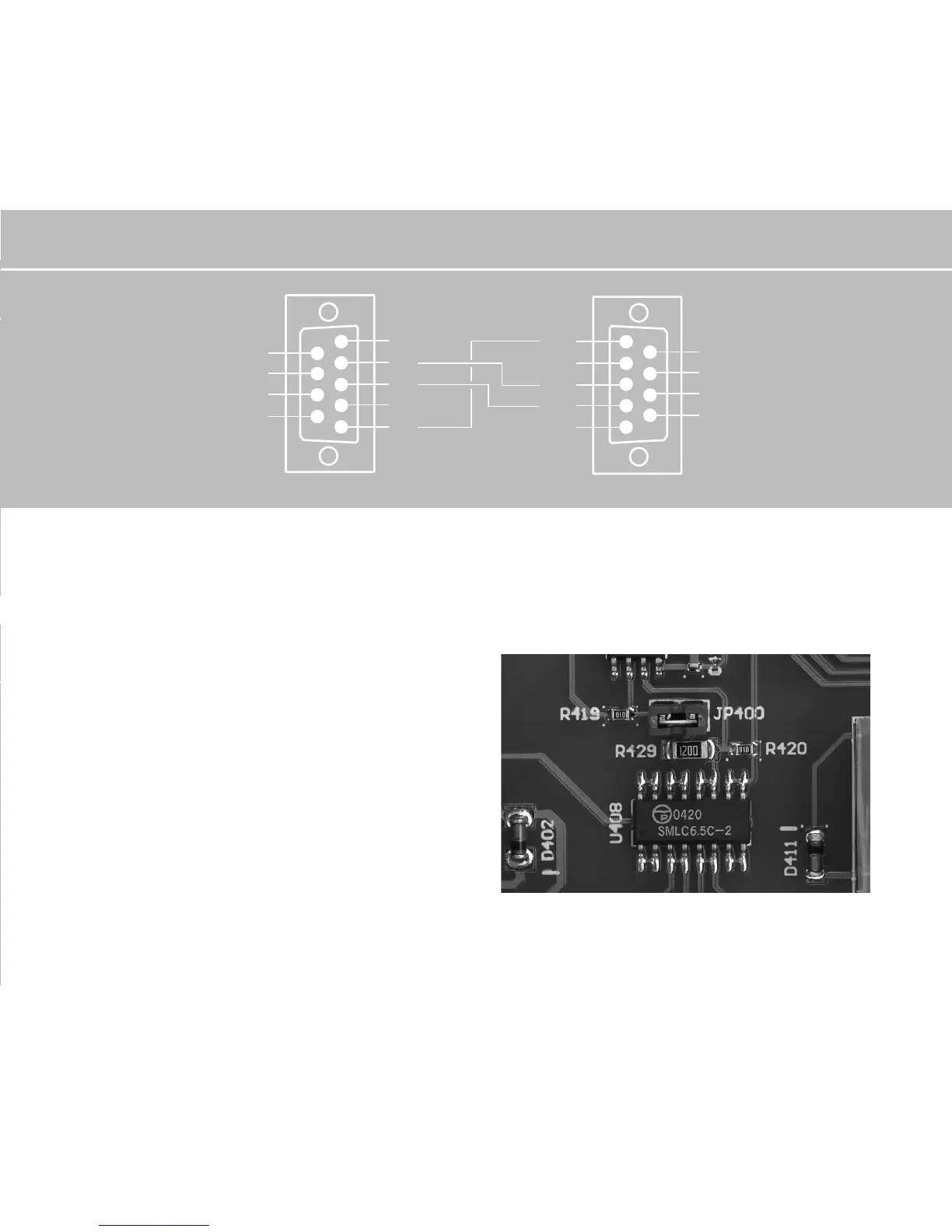

Jumper JP400 in the Sunways Solar
Inverter
Please check the correct position of jum-
per JP400, depending on your selected
communication circuit. This jumper is
located above the RS 485 communication
connection in the lower section of the
board.
1
2
3
4
5
6
7
8
9
Cable type 3
Connector
to modem,
9-pole
Connector to
interface con-
verter
5
4
3
2
1
9
8
7
6
(Fig.) Position of jumper JP400
135
