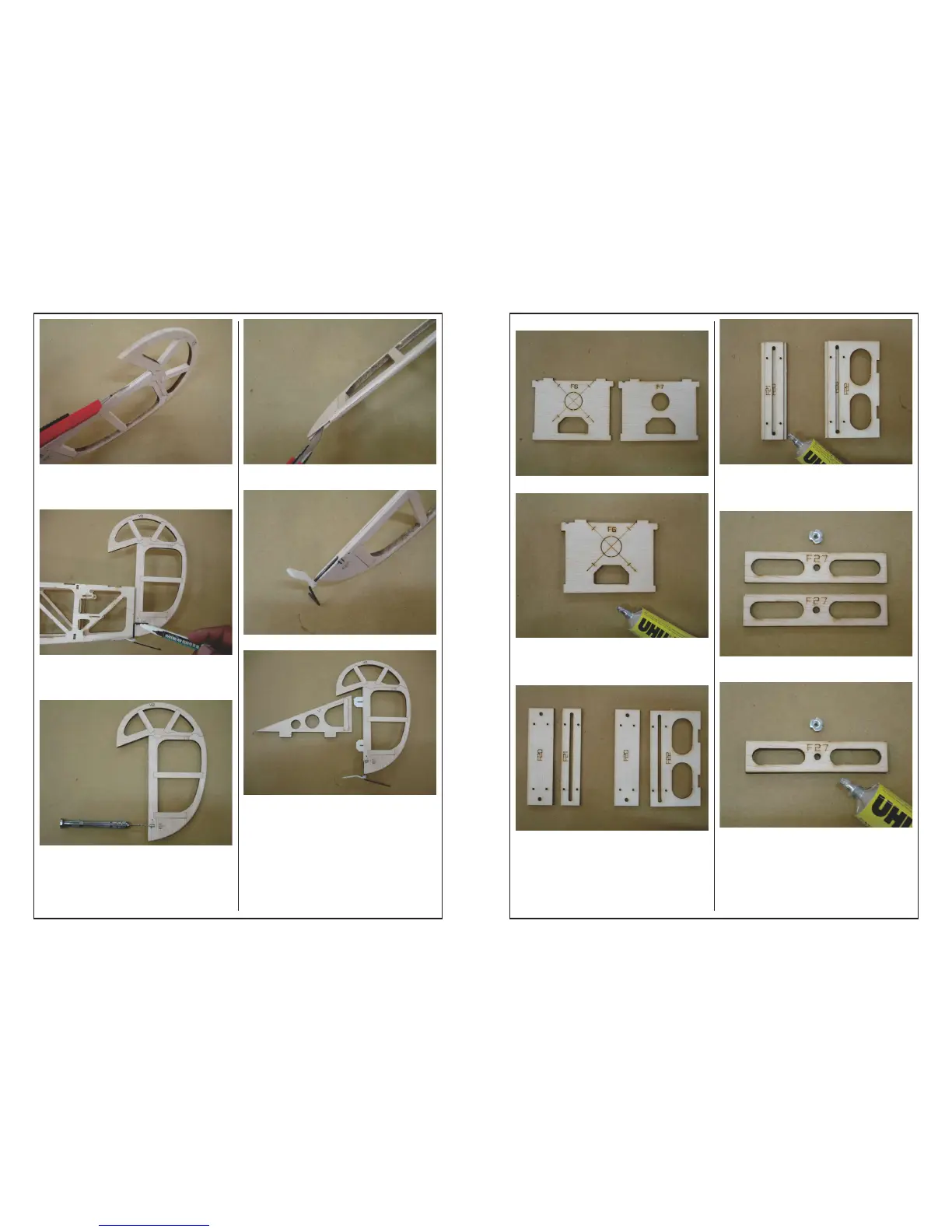

Use hobby knife to cut the hole on the
rudder for inserting hinges.The location
for the hole is 10mm from the top and
35mm from the bottom.
Try to fit the rudder into the fuselage.
Insert the tail gear to the tail and use
marker to mark the top of the wire on the
rudder.
Remove the rudder from the fuselage.
Use 2mm driller to drill 24mm depth hole
on the marking position.
Use hobby knife to cut a V slot from the
drilling holefor installing tail gear.
Try to fit the tail gear into the V slot.
Try to fit the V1 into the rudder for marking
the hinge location on V1. Use hobby knife
to cut the hinge hole on V1. Wait for
applying film.
FUSELAGEASSEMBLY
Place F6 and F7 on the working table.
Use UHU glue to secure the F6 and F7
together. Please note the small recess on
the top of the left sides and the alignment
of every side. Wipe off the excess glue.
Place F20 (2 pieces), F21 and F22 on the
working table.
Try to place the F21 on F20 and the
second F20 on F22. Please note the holes
positions on planking. Use UHU glue to
secure them in place.
Place F27 (2 pieces) and one piece of M3
Tee nut on the working table.
Use UHU glue to secure both F27
together.
